Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Honest
-
Model Number:
-
HT-6220KGD-1
-
Operating Temperature:
-
-20℃~50℃
-
Product Name:
-
Remote control switch
-
Max Current:
-
40A
-
working voltage:
-
AC75V-265V
-
Usage:
-
Household, industrial
-
Packaging:
-
carton packaging
-
Receiving distance:
-
1km
-
Length:
-
11.5mm*10mm*3.5mm
-
working frequency:
-
315MHZ/433MHZ
Quick Details
-
Max. Current:
-
40A
-
Max. Voltage:
-
AC 265 V
-
Customized support:
-
No
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Honest
-
Model Number:
-
HT-6220KGD-1
-
Operating Temperature:
-
-20℃~50℃
-
Product Name:
-
Remote control switch
-
Max Current:
-
40A
-
working voltage:
-
AC75V-265V
-
Usage:
-
Household, industrial
-
Packaging:
-
carton packaging
-
Receiving distance:
-
1km
-
Length:
-
11.5mm*10mm*3.5mm
-
working frequency:
-
315MHZ/433MHZ
Products Description

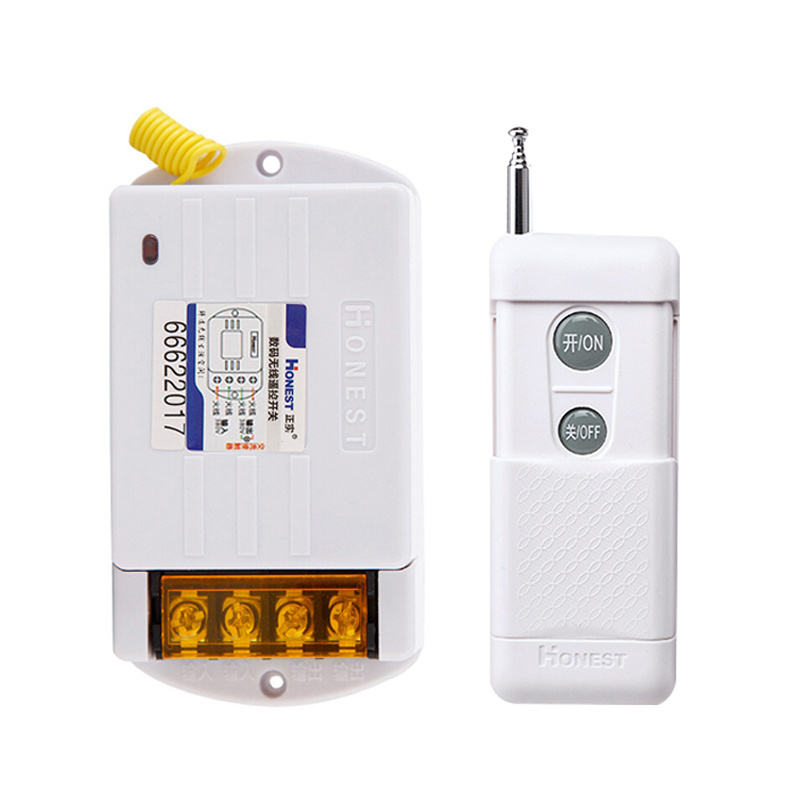

long-distance high-power digital wireless remote control switch, suitable for AC75V-265V voltage, safe and reliable, dual control by manual remote control, add remote control to the code, remote control through walls, without mutual interference,The high-power 40A relay can directly load the water pump motor.
Product Paramenters
This series of switches is divided into two types: gray learning type code-matching remote control and red coding remote control. The code-matching remote control can control one switch with up to 10 remote controls at the same time, and the code remote control is one remote control corresponding to one switch.
|
model
|
Remote control distance (open field)
|
control current
|
Voltage
|
working frequency
|
|
HT-6220ZRD
|
≤1000m
|
≤30A
|
AC75V-265V
|
315MHz/433MHz
|
|
HT-6220KGD-1
|
≤1000m
|
≤40A
|
|
315MHz/433MHz
|
|
HT-6220KG-2
|
≤2000m
|
|
|
315MHz/433MHz
|
|
HT-6220KGD-3
|
≤3000m
|
|
|
315MHz/433MHz
|
|
HT-6220KG-5
|
≤5000m
|
|
|
315MHz/433MHz
|
Details Images
Remote control of power and electrical appliances such as agricultural irrigation, water pump control, landscaping, aquaculture, car washing machines, power distribution cabinets, construction sites, etc.
