Quick Details
-
Brand Name:
-
3nh
-
Model Number:
-
YS3060
-
Model:
-
YS3060
-
Brand:
-
3NH
-
Inter-instrument error:
-
0.15
-
Repeatability:
-
0.03
-
Caliber:
-
8mm and 4mm
-
Power Supply:
-
Rechargeable
-
Software:
-
Support SQCX
Quick Details
-
Warranty:
-
3 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China, CN Guangdong
-
Brand Name:
-
3nh
-
Model Number:
-
YS3060
-
Model:
-
YS3060
-
Brand:
-
3NH
-
Inter-instrument error:
-
0.15
-
Repeatability:
-
0.03
-
Caliber:
-
8mm and 4mm
-
Power Supply:
-
Rechargeable
-
Software:
-
Support SQCX
Product Descriptions

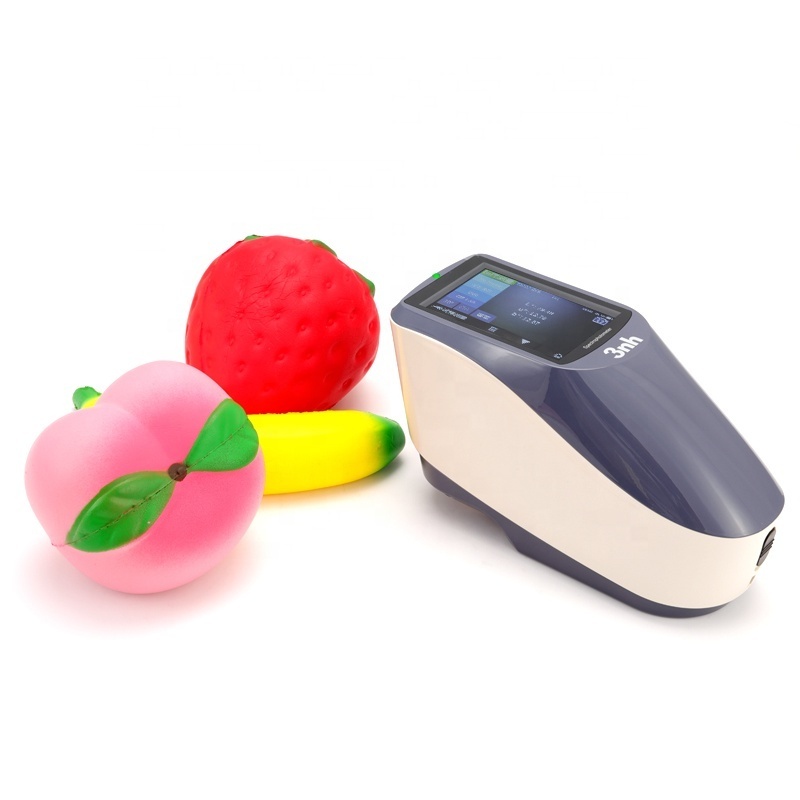

3nh YS3060 Grating Spectrophotometer Portable Colorimeter Tester With UV SCI/SCE BLE In Stock
YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3010 color spectrophotometer features
only 8mm single aperture. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white
calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Classic series
is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure
sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral
management.
Product Advantages
A.Perfect combination of beautiful appearance and the human body mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source
D.Switchable 8mm/4mm aperture, support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G.USB port, widely useful;
H.Super stain-resistant and stable standard white calibration plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard
colorimetric data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source
D.Switchable 8mm/4mm aperture, support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element
Double Arrays CMOS Image Sensor;
G.USB port, widely useful;
H.Super stain-resistant and stable standard white calibration plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard
colorimetric data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
Product Specifications
|
Model
|
YS3010
|
|
|
|||
|
Optical Geometry
|
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
|
|
|
|||
|
Integrating Sphere Size
|
48mm
|
|
|
|||
|
Light Source
|
Combined LED Light, UV Light
|
Combined LED Light
|
|
|||
|
Spectrophotometric Mode
|
Concave Grating
|
|
|
|||
|
Sensor
|
256 Image Element Double Array CMOS Image Sensor
|
|
|
|||
|
Wavelength Range
|
400-700nm
|
|
|
|||
|
Wavelength Interval
|
10nm
|
|
|
|||
|
Semiband Width
|
10nm
|
|
|
|||
|
Measured Reflectance Range
|
0-200%
|
|
|
|||
|
Measuring Aperture
|
Dual Aperture: 10mm/8mm & 5mm/4mm
|
Customized Aperture: 8mm/4mm/1×3mm
|
Single Aperture: 8mm/10mm
|
|||
|
Specular Component
|
SCI&SCE
|
|
|
|||
|
Color Space
|
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
|
|
|
|||
|
Color Difference Formula
|
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter)
|
|
|
|||
|
Other Colorimetric Index
|
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, |
|
|
|||
|
Observer Angle
|
2°/10°
|
|
|
|||
|
Illuminant
|
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
|
|
D65, A, C, D50
|
|||
|
Displayed Data
|
|
|
|
|||
|
Measuring Time
|
2.6s
|
|
|
|||
|
Repeatability
|
MAV/SCI: ΔE*≤0.03
|
MAV/SCI: ΔE*≤0.05
|
MAV/SCI: ΔE*≤0.06
|
|||
|
Inter-instrument Error
|
MAV/SCI: ΔE*≤0.15
|
MAV/SCI: ΔE*≤0.2
|
MAV/SCI: ΔE*≤0.4
|
|||
|
Measurement Mode
|
Single Measurement, Average Measurement
|
|
|
|||
|
Locating Method
|
Camera View Finder Locating
|
|
|
|||
|
Battery
|
Li-ion battery. 5000 measurements within 8 hours
|
|
|
|||
|
Dimension
|
L*W*H=184*77*105mm
|
|
|
|||
|
Weight
|
600g
|
|
|
|||
|
Illuminant Life Span
|
5 years, more than 3 million times measurements
|
|
|
|||
|
Display
|
3.5-inch TFT color LCD, Capacitive Touch Screen
|
|
|
|||
|
Data Port
|
USB, Bluetooth 4.0
|
|
USB
|
|||
|
Data Storage
|
Standard 2000 Pcs, Sample 20000 Pcs
|
|
|
|||
|
Language
|
English, Chinese
|
|
|
|||
|
Operating Environment
|
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
|
|
|
|||
|
Storage Environment
|
-20~50℃, 0~85%RH (no condensing)
|
|
|
|||
|
Standard Accessory
|
Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
|
|
|
|||
|
Optional Accessory
|
Micro Printer, Powder Test Box
|
|
|
|||
|
Notes: The specifications are subject to change without notice.
|
|
|
|
|||
|
Illuminant life span
|
5 years, more than 3 million times measurements
|
|
|
|||
|
Display
|
TFT true color 3.5inch, capacitive touch screen
|
|
|
|||
|
Data port
|
USB, Bluetooth® 5.0
|
|
|
|||
|
Data storage
|
500 standard samples, 1,0000 samples , APP mass storage
|
|
|
|||
|
Language
|
Simplified Chinese, English, Traditional Chinese
|
|
|
|||
|
Operating temperature range
|
0~40℃, 0~85%RH (no condensation), altitude< 2000m
|
|
|
|||
|
Storage temperature range
|
-20~50℃, 0~85%RH (no condensation)
|
|
|
|||
|
Standard Accessories
|
Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box,
protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download) |
|
|
|||
|
Optional Accessories
|
USB micro printer, powder test box, Bluetooth micro printer,holder base
|
|
|
|||
|
Notes.
|
Technical parameters are for reference only, subject to the actual sales of products
|
|
|
|||
FAQ
1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and
sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via
Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.
8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and
sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via
Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.
8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
