Is the main system of this machine, make sliding seat feed and back
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
Wenneng
-
Voltage:
-
380V 50HZ Customized
-
Power:
-
4KW-4
-
Dimension(L*W*H):
-
1400*1400*1420mm
-
Weight:
-
1000
-
Rolling diameter:
-
4-28mm
-
Max width of rolling die:
-
110mm
-
Max outer diameter of rolling die:
-
150mm
-
Range of Center distance of die-spindle:
-
120-200mm
-
Pitch size range(ordinary ):
-
0-3mm
-
Max rolling force:
-
120KN
-
Diameter of spindle:
-
54mm
-
Tilt angle of spindle:
-
±5°
-
Speed of spindle:
-
36.47.60.78(r/min)
-
Size of host machine:
-
1400*1400*1420mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Application:
-
Rolling thread on bolt thread rod
-
Production Capacity:
-
Depend on workpiece
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
Wenneng
-
Voltage:
-
380V 50HZ Customized
-
Power:
-
4KW-4
-
Dimension(L*W*H):
-
1400*1400*1420mm
-
Weight:
-
1000
-
Rolling diameter:
-
4-28mm
-
Max width of rolling die:
-
110mm
-
Max outer diameter of rolling die:
-
150mm
-
Range of Center distance of die-spindle:
-
120-200mm
-
Pitch size range(ordinary ):
-
0-3mm
-
Max rolling force:
-
120KN
-
Diameter of spindle:
-
54mm
-
Tilt angle of spindle:
-
±5°
-
Speed of spindle:
-
36.47.60.78(r/min)
-
Size of host machine:
-
1400*1400*1420mm

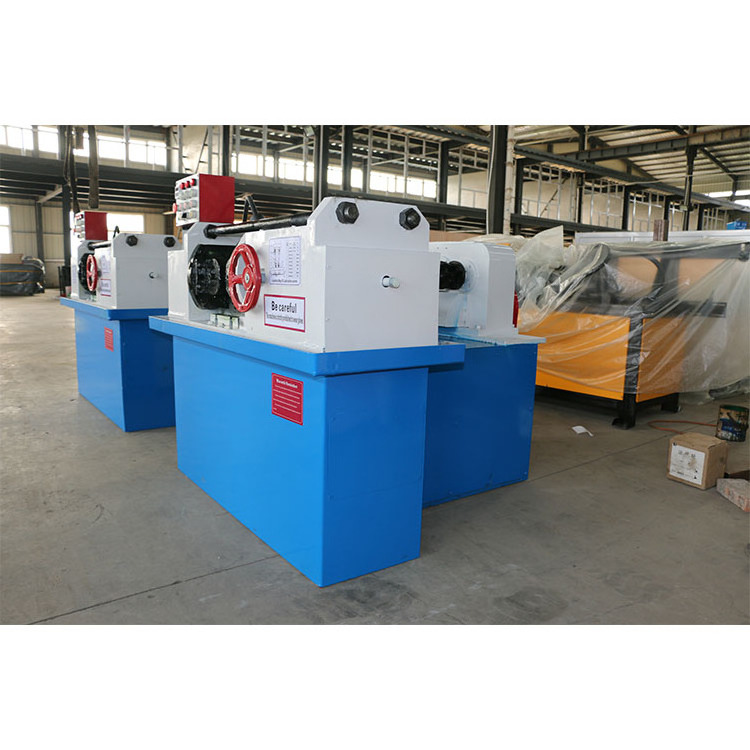

Cnc Machine Steel Bar Customization Automatic Thread Rolling Small Machine Wire Thread Rolling Machines
1. Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread.It also can do the rolling process, forming, slidabrading, knurling etc.. It can make the thead form of good quality. And it It has the high precision.
2. Apply for all kinds of carbon steel, alloy steel and non-ferrous metals. It works safe and reliable. It can works all day long, and can save steel and energy.
3. It adopt innovative design and advanced technology, easy to operate.
4. It can be used to process scerw and rebar. The rebar processed by the machine has the good overall mechanical. It can make the tensile strength increased by 20%-30%, the fatigue strength increased by 40%-60%, corrosion resistance increased by 50%-200%.
Mechanical properties of rebar connector reached and more than international
standards.
2. Apply for all kinds of carbon steel, alloy steel and non-ferrous metals. It works safe and reliable. It can works all day long, and can save steel and energy.
3. It adopt innovative design and advanced technology, easy to operate.
4. It can be used to process scerw and rebar. The rebar processed by the machine has the good overall mechanical. It can make the tensile strength increased by 20%-30%, the fatigue strength increased by 40%-60%, corrosion resistance increased by 50%-200%.
Mechanical properties of rebar connector reached and more than international
standards.
|
Hydraulic power
|
Not Available
|
|
|
Rolling diameter
|
4-28mm
|
|
|
Max width of rolling die
|
110mm
|
|
|
Max outer diameter of rolling die
|
150mm
|
|
|
Range of Center distance of die-spindle
|
120-200mm
|
|
|
Pitch size range(ordinary )
|
0-3mm
|
|
|
Rolling
|
4kw-4
|
|
|
Hydraulic
|
2.2kw-4
|
|
|
Cooling
|
0.12kw
|
|
|
Max rolling force
|
120KN
|
|
|
Diameter of spindle
|
54mm
|
|
|
Tilt angle of spindle
|
±5°
|
|
|
Speed of spindle
|
36.47.60.78(r/min)
|
|
|
Size of host machine
|
1400*1400*1420mm
|
|
|
Weight of machine
|
1000kg
|
|
|
Workpiece length
|
Unlimited
|
|
|
Certificate
|
ISO9001:2008/CE
|
|
ROLLING SHAFT
PURE COPPER MOTOR
More powerful power
improve efficiency
The user should install the main power switch before using
TOOL BOX
Tool box will delivery with the machine together for free
Hebei Wenneng Machinery Technology Co., Ltd was founded in 2015. Mainly specialized in the production of forklift, concrete pump, polishing machine, cnc stirrup bending machine, straightening and cutting machine, diameter reducing machine, thread rolling machine, ect.We are located in the famous Fuyang high tech industrial in Xingtai city, Hebei Province. Covering over 33000 square metres, now have more than 120 employee, more than 20 technicians among them.With reasonable design, advanced technology, well-made, stable performance,our products are best- selling at domestic and foreign.
Q1
CAN YOU CUSTOMIZE THE MACHINE FOR US?
Ar: Yes ,we are factory , we can customize the machine depend your request.
Q2
CAN YOUR TECHNICIAN COME TO OUR COUNTRY TO INSTALL AND ADJUST THE MACHINE?
A: Yes ,our technician can go to your country to help you
install and adjust machine.
install and adjust machine.
Q3
HOW LONG IS THE WARRANTY?
A: Warranty12 months .In period of warranty ,we change the new parts for
broken parts for free. We provide technical support for long-life.
broken parts for free. We provide technical support for long-life.
Q4
IF THE MACHINE HAS A PROBLEM, HOW LONG WILL IT GET A REPLY?
A: We will provide solutions within24 hours.
A: We will provide solutions within24 hours.
Q5
HOW CAN I CONTACT YOU?
A: You can send message on the below or direct add my whatsapp/
wechat+8615732900862
