Quick Details
-
Dimension(L*W*H):
-
3400*1450*2000
-
Weight:
-
3000 KG
-
Drilling diameter(mm):
-
140-254
-
Drilling depth(m):
-
180
-
Walking speed (km/h):
-
2.5
-
Climbing ability (Max.):
-
30
-
Working pressure(Mpa):
-
1.7-3.0
-
Drill pipe diameter(mm):
-
76 89
-
Drill pipe length (m):
-
1.5 2.0 3.0
-
Product Keywords:
-
rc rock crawler drilling rig
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG/OEM
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1450*2000
-
Weight:
-
3000 KG
-
Drilling diameter(mm):
-
140-254
-
Drilling depth(m):
-
180
-
Walking speed (km/h):
-
2.5
-
Climbing ability (Max.):
-
30
-
Working pressure(Mpa):
-
1.7-3.0
-
Drill pipe diameter(mm):
-
76 89
-
Drill pipe length (m):
-
1.5 2.0 3.0
-
Product Keywords:
-
rc rock crawler drilling rig

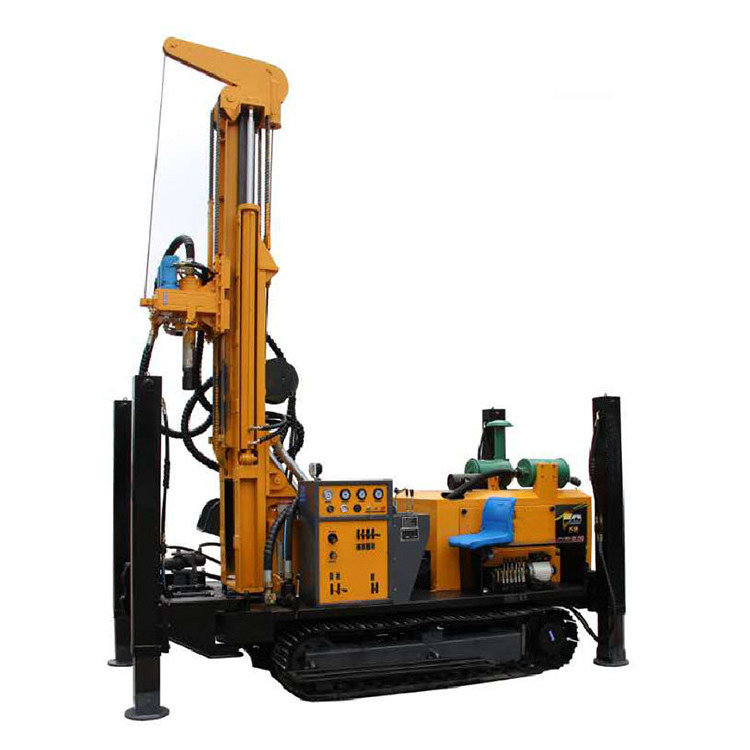

Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.The rig can be drill in different layers.
parameters
|
Model |
YG-X180 |
|
The weight (T) |
4.5 |
|
Hole diameter(mm) |
140-254 |
|
Hole depth (m) |
180 |
|
Once-time advance length(m) |
3.4 |
|
Walking speed (km/h) |
2.5 |
|
Climbing angles |
30 |
|
Equipped capacitor(kw) |
55 |
|
Working pressure (Mpa) |
1.7-2.5 |
|
Air consumption(m³/min) |
17-31 |
|
Drill pipe diameter (mm) |
76 89 |
|
Drill pipe length (m) |
1.5 2.0 3.0 |
|
Rig lifting force (T) |
15 |
|
Swing speed (rpm) |
45-65 |
|
Swing torque(N.m) |
3200-4600 |
|
Dimension (mm) |
3800*1500*2200 |
Machine configuration
We can provide you the full sets include the drill rig , drill pipes ,drill bits ,air compressor and other accessories
