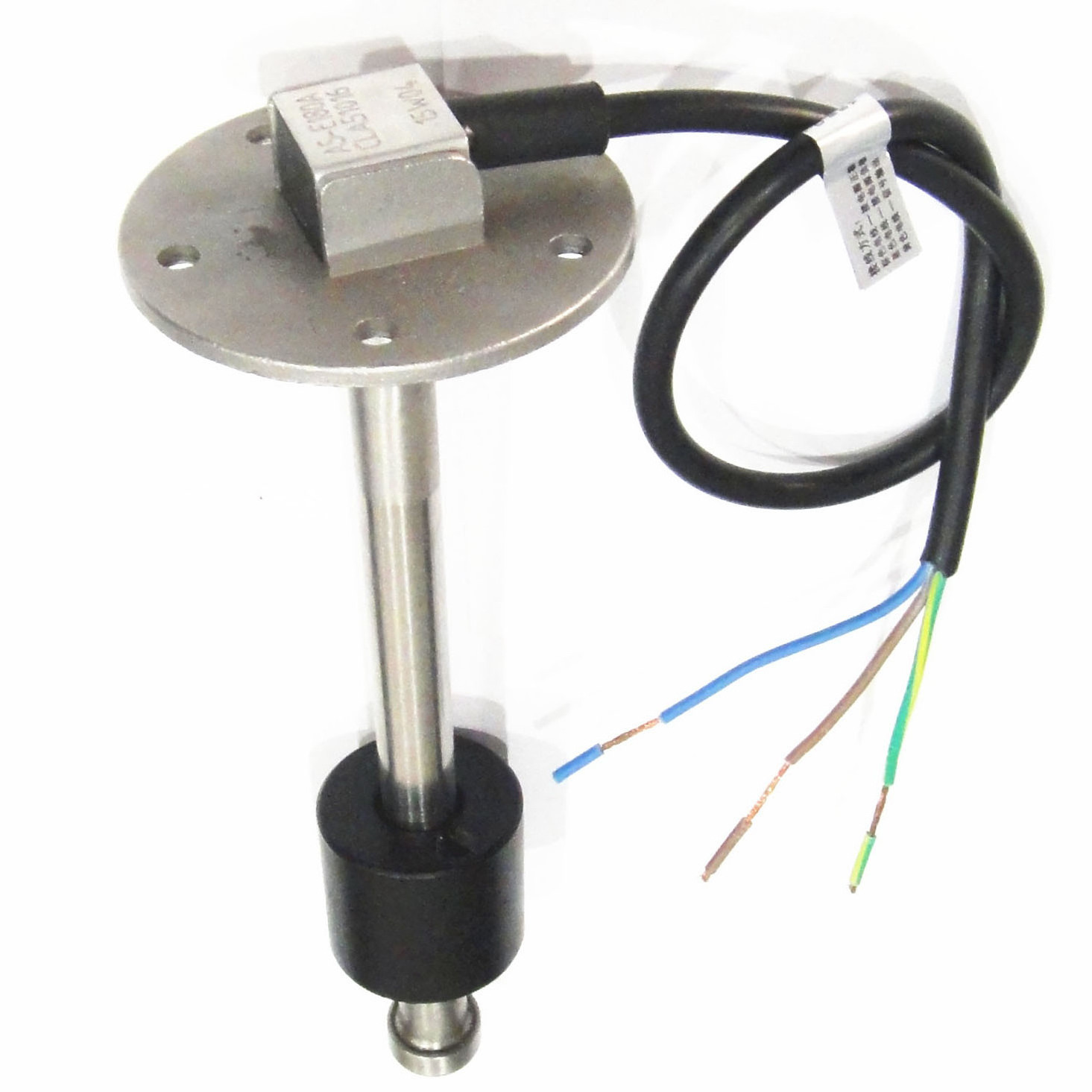

Magnetic Float Level Transmitter Fuel Liquid Vertical 4-20mA Reed Switch float Marine Boat Continuous Sensor oil gauge

Magnetic Float Level Transmitter Fuel Liquid Vertical 4-20mA Reed Switch float Marine Boat Continuous Sensor oil gauge

FOB Reference Price: Get Latest Price

≥1 Pieces

US $65

≥10 Pieces

US $59

≥100 Pieces

US $49

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: QXL

Model Number:: QCF5

Certification:: CCC

Quick Details

Grade:: Industrial

Warranty:: 1 year

Place of Origin:: Guangdong, China

Brand Name:: QXL

Model Number:: QCF5

Certification:: CCC

Product Overview

Magnetic Float Level Transmitter water Controller Fuel Liquid Vertical 4-20mA Continuous Sensor oil gauge

Continuous Float Level Transmitter uses the magnetic inside of the floating ball following as the change of liquid level to change divider circuit composed by the resistor inside of the rod and the magnetic reed switch, thus converted into divider signal which can be turned by transmitter into standard industrial signal of 4~20mA so as to test the liquid level.

Magnetic Float Level Transmitter Fuel Liquid Vertical 4-20mA Reed Switch float Marine Boat Continuous Sensor oil gauge

FEATURES AT A GLANCE

The smaller the clearance of the magnetic reed switch is, the higher the accuracy is. This level indicator can also be used for
long-distance indication if combined with other secondary instrument. It is a reliable indicator with simple principle. Continuous
Float Level Transmitter is widely used in level control and alarm of all kinds of industry such as electronic, electric power,
chemical, water treatment, water supply and drainage, dyeing, machinery etc.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Contact capacity	AC220V/1A; DC24V/0.5A
Working pressure	≤ 10Mpa
Share float	0.6
Output signal	4 ~ 20mA / 0 to 190Ω
Operating temperature	-20 ~ 80 °C/ 200°C
Protection class	IP67
Float material	SUS304/SUS316L
Body Material	SUS304/SUS316L
Connection	G1", BSP (can be customized)
