Product Overview

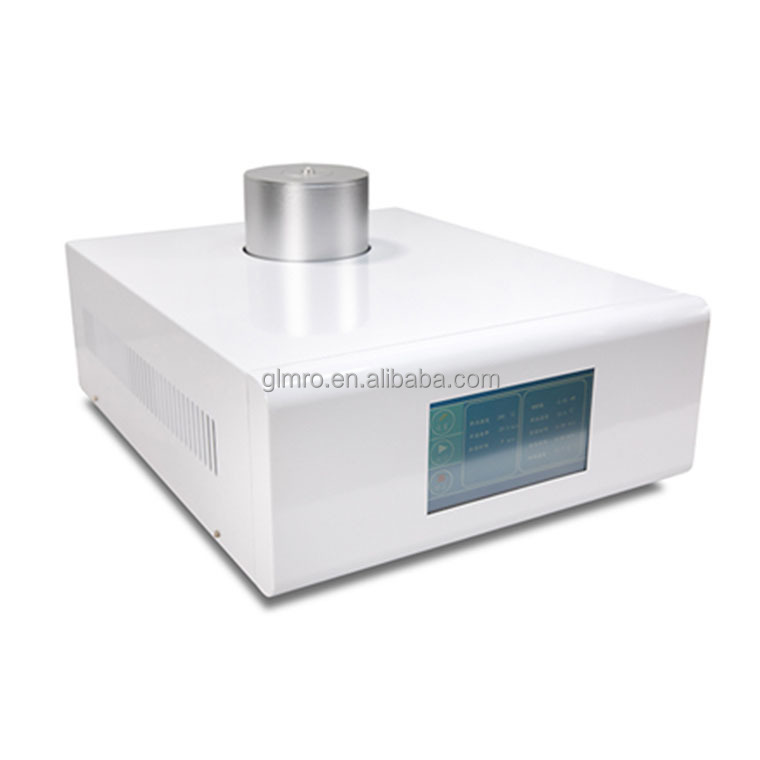

TGA Thermo Gravimetric Analyzer plastic rubber thermal tester
Right elevation
Left elevation
Front elevation
Product introduction:
Thermo gravimetric analyzer (TGA) is in TG, temperature, the temperature or cooling process, observe the quality with temperature
or the change of time, the purpose is to study material thermal stability and components. Widely used in plastic, rubber, coating,
drugs, catalyst, inorganic materials, metal materials and composites fields of research and development, optimizing process and
quality control
Measurement and research material following characteristics:
Thermal stability, decomposing process, adsorption and desorption, oxidation and reduction, ingredients quantitative analysis,
additives and filler influence, moisture and volatiles, reaction kinetics.
Technical parameters:
1. Temperature range: Room temperature ~1150°C
2. Temperature resolution: 0.1 °C
3. Temperature fluctuation: ±0.1°C
4. Heating rate: 1 ~ 80 °C / min
5. Cooling rate *: 1 ~ 20 °C / min optional cooling system
6. Temperature control mode: Rising temperature, Cooling temperature, Constant temperature
7. The cooling time: 15min (1000°C ~ 100°C)
8. Balance measuring scope: 1mg~2g (Can be extended to 30g)
9. Resolution: 0.1 u g
10. Constant temperature and time: 0 ~ 300min (set arbitrarily)
11. Display: English characters liquid crystal display (LCD)
12. Atmosphere: inert, oxidizing, reducible, static and dynamic
13. Atmosphere device: Built-in gas flow meter, including switch two way gas and control flow volume
14. Software: Intelligent software can record TG curves automatically, Processing data and print experimental statements
15. Data interface: RSS - 232 interface, special software (irregularly free upgrades)
16. Power: AC220V 50Hz
17. Warranty: three years
Thermo gravimetric analyzer (TGA) is in TG, temperature, the temperature or cooling process, observe the quality with temperature
or the change of time, the purpose is to study material thermal stability and components. Widely used in plastic, rubber, coating,
drugs, catalyst, inorganic materials, metal materials and composites fields of research and development, optimizing process and
quality control
Measurement and research material following characteristics:
Thermal stability, decomposing process, adsorption and desorption, oxidation and reduction, ingredients quantitative analysis,
additives and filler influence, moisture and volatiles, reaction kinetics.
Technical parameters:
1. Temperature range: Room temperature ~1150°C
2. Temperature resolution: 0.1 °C
3. Temperature fluctuation: ±0.1°C
4. Heating rate: 1 ~ 80 °C / min
5. Cooling rate *: 1 ~ 20 °C / min optional cooling system
6. Temperature control mode: Rising temperature, Cooling temperature, Constant temperature
7. The cooling time: 15min (1000°C ~ 100°C)
8. Balance measuring scope: 1mg~2g (Can be extended to 30g)
9. Resolution: 0.1 u g
10. Constant temperature and time: 0 ~ 300min (set arbitrarily)
11. Display: English characters liquid crystal display (LCD)
12. Atmosphere: inert, oxidizing, reducible, static and dynamic
13. Atmosphere device: Built-in gas flow meter, including switch two way gas and control flow volume
14. Software: Intelligent software can record TG curves automatically, Processing data and print experimental statements
15. Data interface: RSS - 232 interface, special software (irregularly free upgrades)
16. Power: AC220V 50Hz
17. Warranty: three years
