Quick Details
-
Brand Name:
-
CRYSTAL
-
Model Number:
-
EPS205-PRO
-
Product name:
-

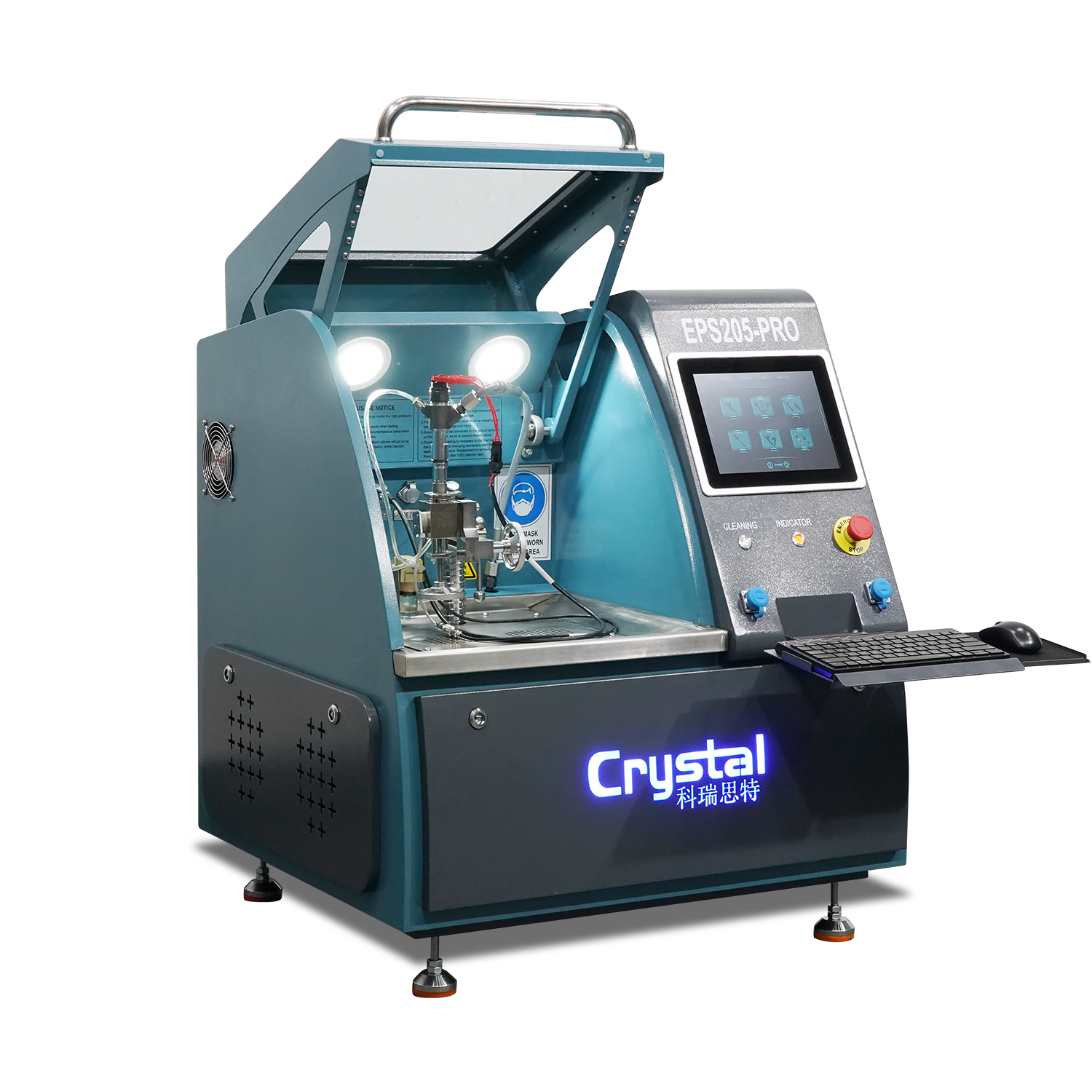

Common rail test bench
-
Function:
-
Injector testing
-
Type:
-
Automatic
-
Keyword:
-
common rail test bench
-
Application:
-
injector test bench
-
Certification:
-
CE
-
Color:
-
Blue
-
Feature:
-
Stable Testing
-
MOQ:
-
1 Set
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
2.6KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CRYSTAL
-
Model Number:
-
EPS205-PRO
-
Product name:
-
Common rail test bench
-
Function:
-
Injector testing
-
Type:
-
Automatic
-
Keyword:
-
common rail test bench
-
Application:
-
injector test bench
-
Certification:
-
CE
-
Color:
-
Blue
-
Feature:
-
Stable Testing
-
MOQ:
-
1 Set
|
Specification |
EPS205-PRO |
|
S ervo Motor Power |
2. 6 kW |
|
heating power |
1KW |
|
Ambient temperature |
<35 ℃ |
|
High pressure range |
0-200MPa |
|
common rail pump |
BOSCH CP1 |
|
Control circuit voltage |
DC12V/DC24V |
|
Fuel tank capacity |
22L |
|
Waste fuel tank capacity |
3L |
|
noise level |
< 75dB |
|
supply voltage |
220V Single phase ( standard ) /380V 3ph ( Optional ) |
|
frequency |
50Hz/60HZ |
|
electric current |
20A(Max) |
|
Net weight |
230 KG ( with base ) 170 KG ( without base ) |
|
size |
860x 775x 1450mm ( with base ) 860x 775x 940mm ( without base ) |
