Models: 50L/100L/200L/300L/500L/800L
It can be selected according to your required capacity.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
600 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GS-mach
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
18000*3500*5000mm
-
Power (kW):
-
150
-
Weight:
-
4500 KG
-
After Sales Service:
-
Field Maintenance & Repair Service
-
Supplier:
-
Factory direct
-
Warranty Period:
-
1 year
-
Delivery:
-
45 days
-
Control:
-
PLC control
-
Labor:
-
1-2 people
-
Adaption Area:
-
Bio Granules & bags & Straws & Sheet & Tableware
-
Name:
-
biodegradable plastic granules making machine
-
Description:
-
starch biodegradable plastic extruder
-
Feature:
-
biodegradable plastic extruder
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
48:1
-
Screw diameter (mm):
-
50.5 mm
-
Screw Speed (rpm):
-
600 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GS-mach
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
18000*3500*5000mm
-
Power (kW):
-
150
-
Weight:
-
4500 KG
-
After Sales Service:
-
Field Maintenance & Repair Service
-
Supplier:
-
Factory direct
-
Warranty Period:
-
1 year
-
Delivery:
-
45 days
-
Control:
-
PLC control
-
Labor:
-
1-2 people
-
Adaption Area:
-
Bio Granules & bags & Straws & Sheet & Tableware
-
Name:
-
biodegradable plastic granules making machine
-
Description:
-
starch biodegradable plastic extruder
-
Feature:
-
biodegradable plastic extruder

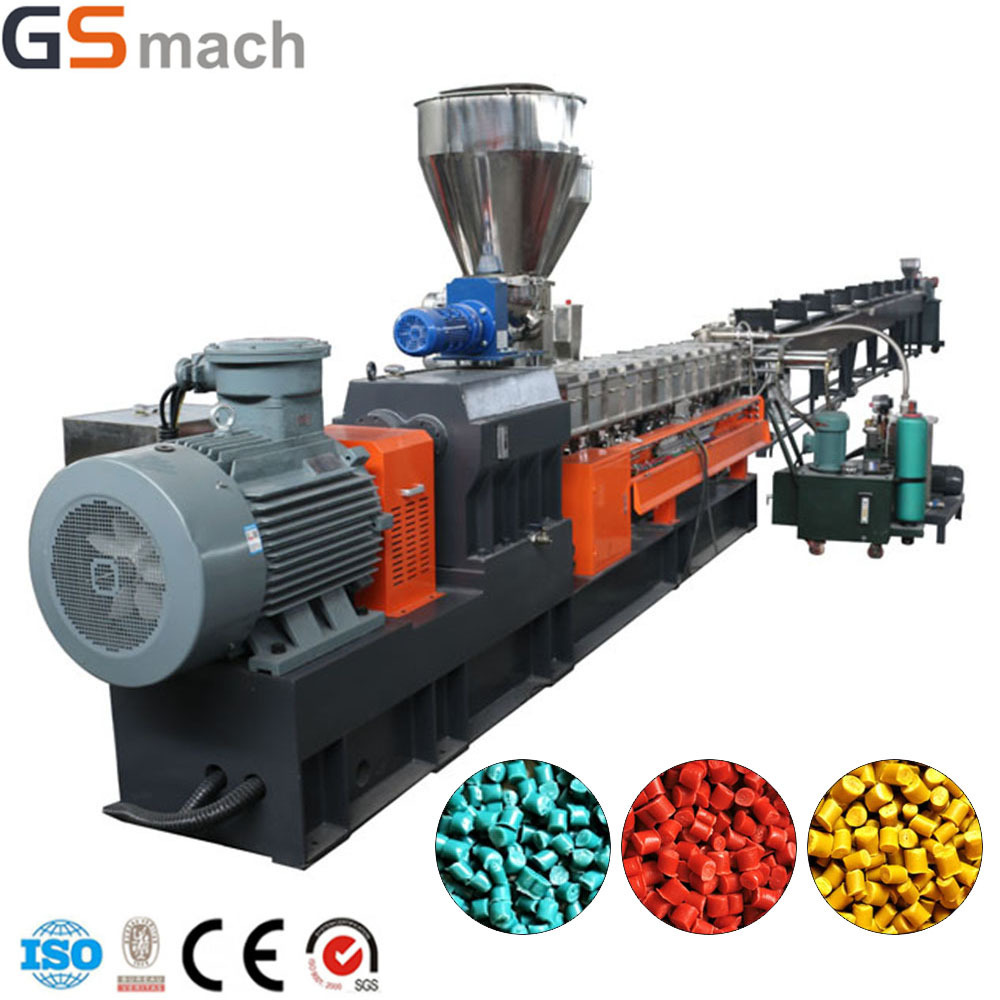

GS50 Starch Biodegradable Plastic Granules Making Machine Extruder
Product Description
|
Biodegradable corn plastic bag raw material pellets making machine
|
|
|
|
Product name
|
100% biodegradable granule making machine
|
|
|
Processing material
|
PLA/PBAT/PVA+Corn starch/Cassava starch+some small additives
|
|
|
Final product
|
100% biodegradable granule
|
|
|
Application
|
Films, bags, plates, cups, straws, chopsticks,etc
|
|
|
Capacity
|
10~1000KG/H (We can provide any capacity model as per cutomers' need)
|
|
|
Certification
|
CE&ISO
|
|
|
Formula
|
Available (We have formulation, it can be provide to customers together with the machine)
|
|
|
Project
|
Turn-key project
|
|
Detailed Images
High Speed Mixer
Belt Feeder
We choose belt feeder to replace the screw feeder, the reason is to prevent the mixing raw materials blocking when conveying.
Twin screw extruder
Usage: For mixing and plasticizing materials
Screw:
L/D: 48:1
Screw element material: W6Mo5Cr4V2
Barrel: 12 Sections
Material: 45# steel
Soft water cooling system: 1 set
Vacuum system: 1 set, with 2 vacuum ports
Strand die head: 1 set
Fan Cooling Conveyor Belt
Usage: For cooling the hot materials come out from the die head of the extruder and then cut into small pellets.
Including conveying belts, cooling fans,
pelletizer, each 1 set.
|
Model/Parameter
|
GS20
|
GS35
|
GS50
|
GS65
|
GS75
|
GS95
|
|
Capacity
|
10-20
|
30-50
|
100-200
|
200-300
|
300-400
|
400-800
|
|
Main motor
|
4
|
45-22
|
37-65
|
45-75
|
75-160
|
132-250
|
|
Screw diameter
|
21
|
35.6
|
50.5
|
62.4
|
71
|
93
|
|
L/D
|
28-40
|
28-48
|
28-64
|
28-64
|
28-64
|
28-64
|
|
Rotate speed(rpm)
|
0-600
|
0-600
|
0-600
|
0-600
|
0-600
|
0-600
|
|
Screw material
|
bi-metal
|
bi-metal
|
bi-metal
|
bi-metal
|
bi-metal
|
bi-metal
|
|
Screw hardness
|
HRC65-70
|
HRC65-70
|
HRC65-70
|
HRC65-70
|
HRC65-70
|
HRC65-70
|
|
Shaft core material
|
40CrNiMoA
|
40CrNiMoA
|
40CrNiMoA
|
40CrNiMoA
|
40CrNiMoA
|
40CrNiMoA
|
Product Overview
Certifications
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
18000 (L) * 5000 (W) * 3500 (D)
|
|
|
Weight
|
6 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Our Company
GS-Mach is a professional in plastic, rubber, chemical machinery researcher,designer and manufacturer with CE and ISO9001 certificates.
Orientated by the world market,we insist on strengthening our talents, innovating,refining our quality and improving the management, aiming to supply our customer the best products and make the GS-mach a worldwide top machinery manufacturer and supplier.
Contact
Sales Manager: Victoria Lee
Company:
Nanjing GS-mach Extrusion Equipment Co.,Ltd
Mob:
+86 181 1401 5045
Whatsapp:
+86 138 5189 0452
Email:
extruder1@njgsmach.com
OFC: City Space D2-306 Nanjing South Station, Jiangning, District, Nanjing, Jiangsu, China
FTY: Dangtu Industrial Park, Maanshan City, Anhui Province
