Quick Details
-
Caster Type:
-
Welded pipe type caster or with brake
-
Wheel material:
-
SR, HR
-
Wheel Diameter:
-
3"
-
Finsh:
-
Zinc-Plate
-
Caster Mount:
-
Threaded stem, bolt hole
-
Wheel color:
-
Black or red or other
-
Load capacity:
-
55kg-100kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNIONLEVER
-
Model Number:
-

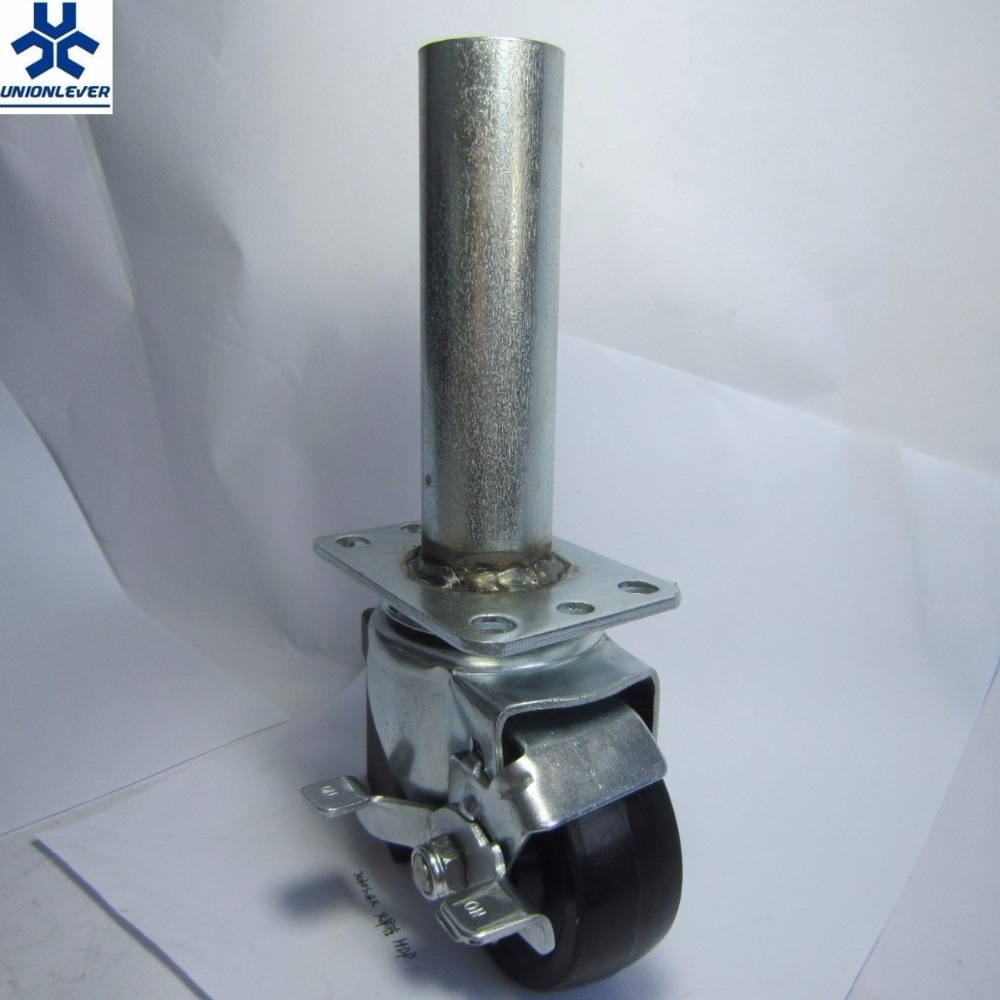

2030 Welded pipe type brake caster series
-
Caster Type:
-
Welded pipe type caster or with brake
-
Wheel material:
-
SR, HR
-
Wheel Diameter:
-
3"
-
Finsh:
-
Zinc-Plate
-
Caster Mount:
-
Threaded stem, bolt hole
-
Wheel color:
-
Black or red or other
-
Load capacity:
-
55kg-100kg
Packaging Details: Carton, pallet, wooden case
Delivery Detail: 10 days to 20 days after payment for standard products
1. Heauily embossed,formed steel double cup;
2. Double row ball swivel raceway construction;
3. Finish: Bright zinc or chrome;
4. Octa Top Raceway is avaiable;
Applications:
Stock carts, bakery racks, food service equipment, etc.
| Ttem | FASTENING TYPE | FASTNING SHAPE | FASTENING CODE NO | FASTNNING SPECIFICATION | ||
| OVERALL SIZE | BOLT HOLE SPACING | BOLT SIZE | ||||
| SWIVEL | TOP PLATE |
|
A1 | 94×64 | 73×44 | M8 |
| A2 | 79×104 | 52.4×80.2 | M8 | |||
| A3 | 100×114 | 71×84 | M10 | |||
| A4 | 89×90 | 66.7×66.7 | M6 | |||
| THREADED STEM |
|
B1 | 12.7×13 ×25.4L | |||
| B2 | 12.7×13 ×38L | |||||
| B3 | 15.8×11×30L | |||||
| B4 | 12.7×13 ×50L | |||||
| B5 | 12.7×20 ×75L | |||||
| B6 | 11.1×14 ×22.2L | |||||
| B7 | 12.7×13 ×64L | |||||
| B8 | 11.1×UNC14 ×38 L | |||||
| B9 | 12.7×13 ×76L | |||||
| B10 | 16×P1.5×67L | |||||
| (SQUARE STEM) |
|
C1 | 22×58 L-6.5 Hole(From the bottom position of 33) | |||
| GRIP RING STEM | D1 | 11×38L | ||||
| D2 | 21.4×63.5L | |||||
| D3 | 20.6×55.5L | |||||
| ROUND STEM | E1 | 22.2×53.1L_8Hole(From the bottom position of 36.4) | ||||
| E2 | 25.4×58 L_8.6 Hole(From the bottom position of 36.8) | |||||
| E3 | 25.4×71.1 L_10.5 Hole(From the bottom position of 40.9) | |||||
| OCTAGON STEM | F1 | 21.5×62L_6.5 Hole 3 | ||||
| WELDED PIPE | Welded pipe | D35×130Pipe | ||||
| RIGID | TOP PLATE | 95×70 | 73×44 | M8 | ||
>>>20 Series Specifications Unit:mm
| CASTER PART NUMBER | WHEEL SPECIFICATION | CASTER SPECIFICATION | ||||||||
| SWIVEL | RIGID | BRAKE | DIAMETER | TREAD WIDTH | TYPE | BEARING |
AXLE DIA
BOLT |
OVERALL HEIGHI | SWIVEL RADIUS | LOAD CAPACITY |
|
2030 pipe type |
3
(76) |
30 | more below | more below | 9.5 | 101 | 72 | more below | ||
| 2040(4 inch) pipe type | 99 | 30 | See details page | See details page | 9.5 | 125 | 81.5 | See details page | ||
| 2050(5 inch) pipe type | 127 | 30 | See details page | See details page | 9.5 | 157 | 97 |
See details page
|
||
>>>2030 pipe type single wheel material display
| ACCESSORIES CODE | DESCRIPTION |
| TB | Top Lock Brake |
| TG | Thread Guard |
| CP | Chrome Plating |
| BP | Black Oxide Plating |
Minimum Order Quantity: 500 piece/pieces for normal caster wheel
Loading Port: Tianjin, QIngdao, Shanghai or Ningbo
Delivery Time: About 20 workdays for normal caster wheel
Payment Terms: T/T
Packing: Standard export packing
Sample fee: Paid by customer, but can be refund when order placed.
Delivery fee: Send by express, paid by customer, but can be refund after order placed.
Quick response: Your enquiry will be replied within 24 hours.
