- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

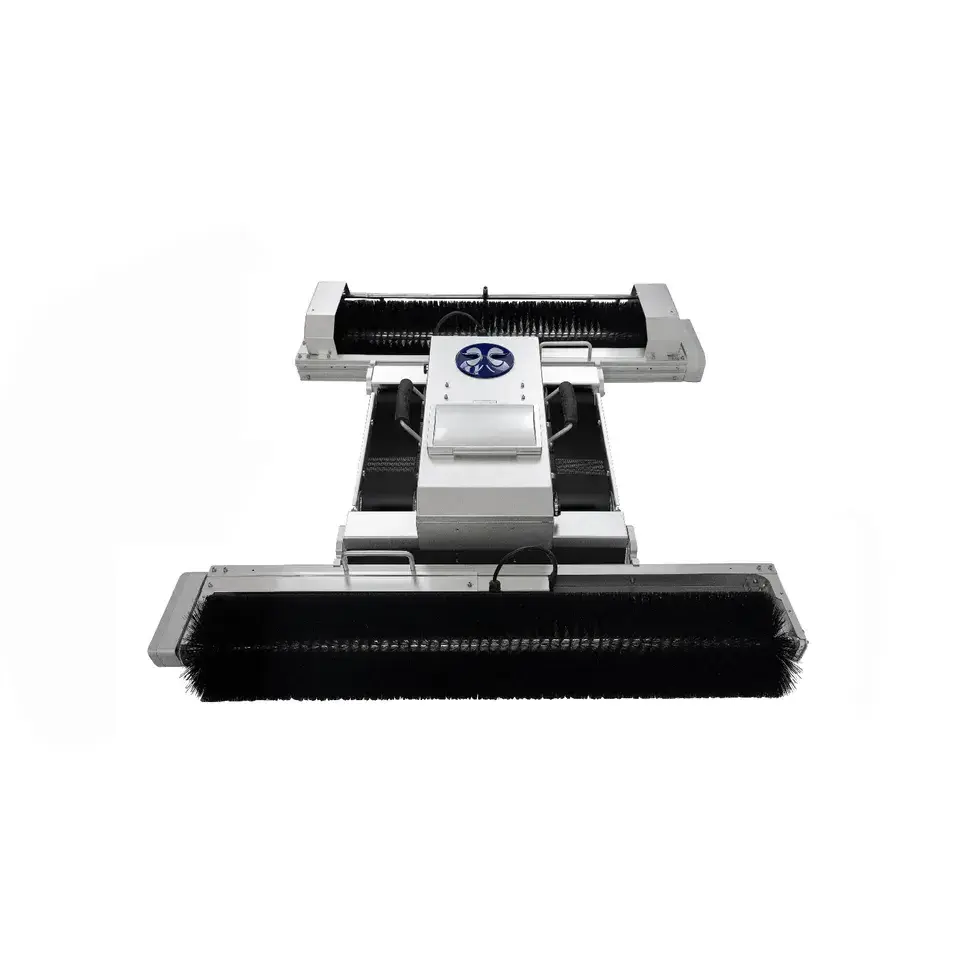

Solar Panel Cleaning Robot
-
Application:
-
Resident /Commercial roof
-
Feature:
-
fully autonomous simple Solar Cleaning robot
-
Warranty:
-
1 year or 2400 hours(whichever comes first)
-
Keyword:
-
Photovoltaic Cleaning Tool
-
Battery Capacity:
-
15Ah
-
Work Efficiency:
-
≥400m/h
-
Weight:
-
19.8KG
-
Cleaning Mode::
-
can choose
-
Product Size:
-
594*526*250mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kwun
-
Model Number:
-
E22L
-
Product name:
-
Solar Panel Cleaning Robot
-
Application:
-
Resident /Commercial roof
-
Feature:
-
fully autonomous simple Solar Cleaning robot
-
Warranty:
-
1 year or 2400 hours(whichever comes first)
-
Keyword:
-
Photovoltaic Cleaning Tool
-
Battery Capacity:
-
15Ah
-
Work Efficiency:
-
≥400m/h
-
Weight:
-
19.8KG
-
Cleaning Mode::
-
can choose
-
Product Size:
-
594*526*250mm
|
Clean way
|
Laboratory Test Date
|
|
Project
|
|
||
|
Dry
Brushing
|
0~30°
|
|
PV panel Angle
|
|
||
|
|
-20~105℃
|
|
PV panel Surface Temp.
|
|
||
|
|
-20~60℃
|
|
Environment Temp.★
|
|
||
|
|
50mm
|
|
PV Panel Gap
|
|
||
|
|
40mm
|
|
PV Height Difference
|
|
||
|
|
50~100 mm Moderate rain
|
|
Rainfall
|
|
||
|
|
75~88 km/h Strong Gale
|
|
Wind Power
|
|
||
|
|
IP 65
|
|
IP Rating
|
|
||
|
Water
Washing |
0~20°
|
|
PV Panel Angle
|
|
||
|
|
-20~35℃
|
|
PV Panel Surface Temp
|
|
||
|
|
-20~41℃
|
|
Environment Temp.★
|
|
||
|
|
50mm
|
|
PV Panel Gap
|
|
||
|
|
40mm
|
|
PV Height Difference
|
|
||
|
|
50~100 mm Moderate rain
|
|
Rainfall
|
|
||
|
|
39~49 km/h Strong Breeze
|
|
Wind Power
|
|
||
|
Technology
|
Based on TianyunOS Operating System
|
|
|
|
||||
|
|
Based on Glass vSLAM Visual Navigation Technology
|
|
|
|
||||
|
|
Based on Goodzenn Path Planning Technology
|
|
|
|
||||
|
|
Based on Ai-KWUN Operating Platform
|
|
|
|
||||
|
|
Based on OTA-KWUN Operating Platform
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Life & Endurance
|
Design Life：
|
|
6 years
|
|
||||
|
|
Warranty(whichever comes fifirst)：
|
|
1 year or 2400 hours
|
|
||||
|
|
Battery Capacity：
|
|
15Ah
|
|
||||
|
|
The Battery Life*：
|
|
4.5 hours
|
|
||||
|
|
Charging Time：
|
|
3 hours
|
|
||||
|
|
8 Hours Battery Life：
|
|
Replace The Battery Every 4.5 hours
|
|
||||
|
|
|
|
|
|
||||
|
Ability to Clean
|
Dust（adhesion ≤10
-6
N）：
|
|
≥99%
|
|
||||
|
|
Dust Accumulation（adhesion≤10
-4
N）：
|
|
≥95%
|
|
||||
|
|
Dried Guano (adhesion≤10
-2
N)：
|
|
≥85%
|
|
||||
|
|
Cleaning Effificiency：
|
|
≥400m
2
/h
|
|
||||
|
|
|
|
|
|
||||
|
Shape
|
Body Size* (without brushes)：
|
|
594*526*250mm
|
|
||||
|
|
Body Weight* (without brushes)：
|
|
19.7kg
|
|
||||
|
|
Brush Length* (detachable)：
|
|
940mm (D type)
|
|
||||
|
|
Brush Weight*：
|
|
5.3kg & 4.3kg (D type)
|
|
||||
|
|
Number of Rolling Brushes：
|
|
2
|
|
||||
|
|
|
|
|
|
||||
|
Manipulation
|
Maximum of Single Control：
|
|
24 sets
|
|
||||
|
|
Roof RECO Maximum Number Operate：
|
|
4 sets
|
|
||||
|
|
RECO Maximum Number Operate on Slopes:
|
|
4 sets
|
|
||||
|
|
Software Upgrade：
|
|
OTA
|
|
||||
|
|
Work at Night：
|
|
Yes
|
|
||||
|
|
View Logs in Real Time：
|
|
Yes
|
|
||||
|
|
UAV Retraction：
|
|
Yes
|
|
||||
|
|
Unmanned on Approach Bridge：
|
|
Yes
|
|
||||
|
|
APP Control Remotely：
|
|
Yes
|
|
||||
|
|
Close Distance Remote Control* (Optional):
|
|
Yes
|
|
||||
|
|
Breakpoint Continuation：
|
|
Yes
|
|
||||
|
|
Adjust the Brush Speed：
|
|
Yes
|
|
||||
|
|
|
|
|
|
||||
|
Security
|
Working Mode：
|
|
Autonomous Work; Mobile APP
|
|
||||
|
|
Positioning Mode：
|
|
AI Semantic Vision
|
|
||||
|
|
Positioning Accuracy：
|
|
≤10mm
|
|
||||
|
|
Steering Mode :
|
|
High Precision Adsorption Steering Mechanism
|
|
||||
|
|
Anti-fall Protection :
|
|
AI Semantic Vision + Ultrasonic
|
|
||||
|
|
Anti-skid :
|
|
Track Self-cleaning + High Precision
Deviation Correction Algorithm
|
|
||||
|
|
Protection Rate :
|
|
IP65
|
|
||||
|
|
Security :
|
|
10000 Cycles without Microcrack
|
|
||||
1.
Q: How can you guarantee quality?
A: We have a perfect pre-sales service and after-sales service system. We will start to track the whole process from the factory production, and there will be a service specialist to provide you with exclusive service, so as to ensure that there is no problem in the entire order process.
2. Q: Do you provide samples?
A: Yes, sample orders are welcomed.
2. Q: Do you provide samples?
A: Yes, sample orders are welcomed.
3.
Q: Do you provide OEM&ODM service?
A: Yes, we provide OEM&ODM service for most of our products. Please contact our sales manager for details.
4.
Q: What can you buy from us?
A: Solar Panel, BIPV, Solar cleaning robot, Battery, Portable power supply, and other solar energy products. If you have any needs, you can contact our sales managers. We will find the best solution for you.
5. Q: Are the products in stock?
5. Q: Are the products in stock?
A: For most products, we have inventory and will arrange delivery in time. For large orders, we will calculate the delivery time accordingly and communicate with you.
