Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guowang
-
Model Number:
-
pvc wire
-
Rated voltage:
-
450/750v
-
Model:
-
BV,RV,BVV,RVV,BVR,etc
-
Conductor:
-
flexible copper,solid copper,stranded copper
-
Rated Voltage:
-
450/750v,300/500v,300/300v
-
Sectional Area:
-
1.5~400mm2
-
Number of Cores:
-
1~5
-
Colour:
-
Black,yellow,red,blue,etc
-
Certification:
-
ISO,CCC,OHSMS
-
Standard:
-
IEC
-
OEM Service:
-
Accept
Quick Details
-
Application:
-
Overhead
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guowang
-
Model Number:
-
pvc wire
-
Rated voltage:
-
450/750v
-
Model:
-
BV,RV,BVV,RVV,BVR,etc
-
Conductor:
-
flexible copper,solid copper,stranded copper
-
Rated Voltage:
-
450/750v,300/500v,300/300v
-
Sectional Area:
-
1.5~400mm2
-
Number of Cores:
-
1~5
-
Colour:
-
Black,yellow,red,blue,etc
-
Certification:
-
ISO,CCC,OHSMS
-
Standard:
-
IEC
-
OEM Service:
-
Accept
1.Q:How does your factory do regarding quality control?
A: Quality is life. We always attach great importance to quality controlling from the very beginning to the very end.
factory has gained ,CCC,ISO,KEMA,TUV BV authentication
,
a warm welcome international friends to visit.
2.Q:How can I get some samples?
A: We are very willing to provide you with the free sample, according to your needs.
3.what is the package of the cable ?
A: The package is usually wooden drum or steelw ooden drum or coil.also according to customer’s requirment.
16 awg solid copper wire/ 1.5 sq mm copper core pvc insulation flexible wire/ copper wire roll
Application of 16 awg solid copper wire
Operating Characteristics
450/750V,300/500V,300/300V.
Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
| Conductor | Insulation thickness | Overall diameter(approx.) | DC resistance at 20°C | Weight(approx.) | Rated Voltage | ||
| Norminal area | Structure | Conductor diameter | |||||
| mm 2 |
No.& diameter of single wire mm |
mm | mm | mm | Ohm/km | kg/km | V |
| 0.5 | 7*0.30 | 0.9 | 0.6 | 2.1 | 36 | 10.3 | 300/500 |
| 0.75 | 7*0.37 | 1.11 | 0.6 | 2.3 | 24.5 | 12.9 | 300/500 |
| 1 | 7*0.42 | 1.26 | 0.6 | 2.5 | 18.1 | 16.5 | 300/500 |
| 0.5 | 7*0.30 | 0.9 | 0.7 | 2.6 | 36 | 11.4 | 450/750 |
| 0.75 | 7*0.37 | 1.11 | 0.7 | 2.7 | 24.5 | 14.2 | 450/750 |
| 1 | 7*0.42 | 1.26 | 0.7 | 2.9 | 18.1 | 17.8 | 450/750 |
| 1.5 | 7*0.52 | 1.56 | 0.7 | 3.2 | 12.1 | 23.3 | 450/750 |
| 2 | 7*0.60 | 1.8 | 0.8 | 3.6 | 9.42 | 29.8 | 450/750 |
| 2.5 | 7*0.67 | 2.01 | 0.8 | 3.8 | 7.41 | 35.2 | 450/750 |
| 3 | 7*0.75 | 2.25 | 0.8 | 4.1 | 6.1 | 42.1 | 450/750 |
| 3.5 | 7*0.80 | 2.4 | 0.8 | 4.2 | 5.3 | 46.7 | 450/750 |
| 4 | 7*0.85 | 2.55 | 0.8 | 4.4 | 4.61 | 51.5 | 450/750 |
| 5.5 | 7*1.00 | 3 | 0.8 | 4.8 | 3.4 | 67.6 | 450/750 |
| 6 | 7*1.04 | 3.12 | 0.8 | 5 | 3.08 | 72.3 | 450/750 |
| 7 | 7*1.12 | 3.36 | 1 | 5.6 | 2.61 | 87.2 | 450/750 |
| 8 | 7*1.20 | 3.6 | 1 | 5.8 | 2.36 | 97.9 | 450/750 |
| 10 | 7*1.35 | 4.05 | 1 | 6.3 | 1.83 | 119.8 | 450/750 |
| Besides above list, we can also provide other size depend on customer's requirement. | |||||||

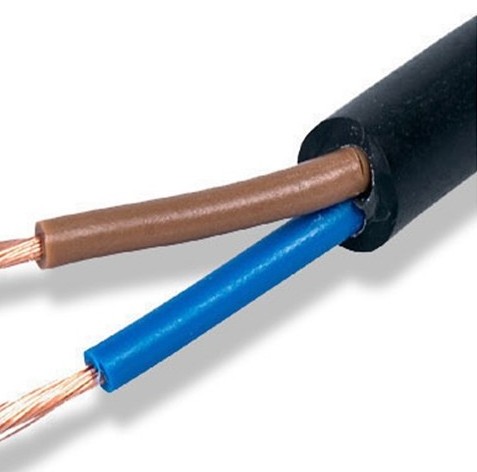

Pictures of 16 awg solid copper wire
if you like it
- Sea freight:
- FOB/C&F/CIF/DDU quotation are all available .
16 awg solid copper wire/ 1.5 sq mm copper core pvc insulation flexible wire/ copper wire roll
