Quick Details
-
Model Number:
-
MPC-50V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONGJI/OEM
-
Theory:
-
PIR Sensor
-
Output:
-
Analog SENSOR
-
Brand:
-
Sensor Switch
-
Power Supply:
-
No Need
-
Adjustment Time Delay:
-
15 Sec. to 30 Min.
-
Sensitivity Adjustment:
-
50% or 100% (DIP switch )
-
Incandescent:
-
800W@120VAC
-
Fluorescent:
-
800VA@120V/1600VA@277V
-
Motor:
-
1/4HP@120V
-
Keyword:
-
Occupancy Sensor Switch
-
Coverage:
-
1200sq.ft
-
Material:
-
ABS
-
Certification/Listing:
-
UL & CUL
Quick Details
-
Usage:
-
Position Sensor
-
Mounting Type:
-
Ceiling Wall Motion Sensor
-
Description:
-
PIR Occupancy Sensor
-
Model Number:
-
MPC-50V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONGJI/OEM
-
Theory:
-
PIR Sensor
-
Output:
-
Analog SENSOR
-
Brand:
-
Sensor Switch
-
Power Supply:
-
No Need
-
Adjustment Time Delay:
-
15 Sec. to 30 Min.
-
Sensitivity Adjustment:
-
50% or 100% (DIP switch )
-
Incandescent:
-
800W@120VAC
-
Fluorescent:
-
800VA@120V/1600VA@277V
-
Motor:
-
1/4HP@120V
-
Keyword:
-
Occupancy Sensor Switch
-
Coverage:
-
1200sq.ft
-
Material:
-
ABS
-
Certification/Listing:
-
UL & CUL

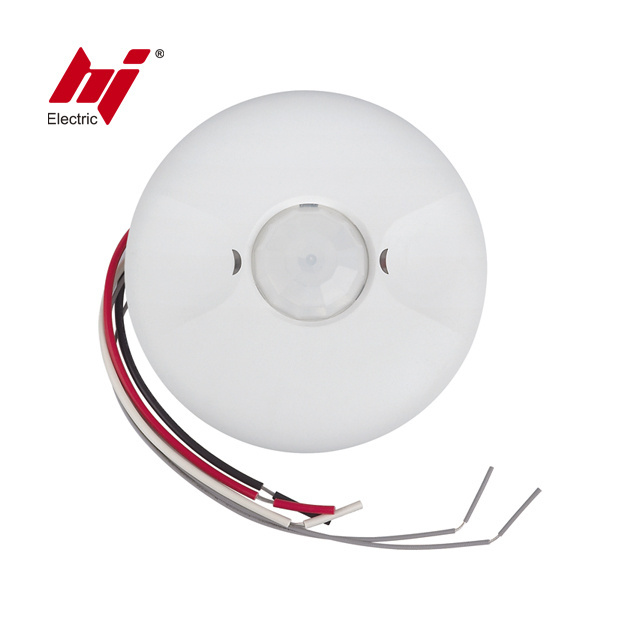

Line Voltage Ceiling Wall Motion PIR Occupancy Sensor Switch
Dimmers
,
Fan Speed Controls
,
Motion Sensors
,
Timers
,
GFCIs
,
USB Charger Receptacles
,
Switches
,
Receptacles
,
Floor Boxes
,
Plugs
and
Connectors
,
Flush Mount Receptacles
,
Locking Devices
,
Data-Com Devices
,
Wallplates
Our Advantage
1. 10+ years experience in design and manufacturing.
2. We have UL recognized laboratory.
3. A wide selection of products.
4. ALL of our goods have got certificates such as cULus and cETLus etc.
5. We have sold our products to GE, THD, LOWE'S, Wal-Mart, etc.
6. The capabilities of our team and equipment allow us to design, develop, and do more than just OEM and ODM.
7. The production area is about 20000square meter (WENZHOU).
| MPC-50V | |
| Power Pack | |
| Power Supply | not Required |
| Electrical Specifications | |
| Input Voltage | 120/277VAC, 50/60Hz |
| Adjustment Time Delay | 15 Sec. to 30 Min. |
| Sensitivity Adjustment | 50% or 100% (DIP switch ) |
| Adjustable Light Level | 10FC - 150FC |
| Load Requirements | |
| Incandescent | 800W 120VAC, 60Hz |
| Ballast | 800VA 120VAC / 1600VA 277VAC, 60Hz |
| Resistive | 10A, 120VAC, 60Hz |
| Motor | 1/4Hp, 120VAC, 60Hz |
| Coverage | |
| Coverage | 1200ft2 |
| Environment Specifications | |
| Operating Temperature | 0℃ to +55℃ |
| Material Specifications | |
| Material | ABS |
| Standards & Certifications | |
| Certification/Listing | UL |
| Applicable Standards | UL773A |
| Warranty | 2 Year Limited |
Rebates & Incentives USA
There are various rebates and incentives that promote energy efficient lighting systems. Incentives to purchase and install energy efficient products can come from:
1. Local and state utilities
2. State energy efficiency programs
3. EPAct tax incentives
4. Federal stimulus monies that focus on energy efficiency
Product Show (Ceiling Sensors)
| CAT. NO. | DESCRIPTION | |
| MPC-50H |
High Bay 360° PIR Line Voltage Occupancy Sensor ( Power Pack not Required) |
|
| MPC-50V |
360° PIR Line Voltage Occupancy Sensor ( Power Pack not Required) |
|
| MPC-50L |
360° PIR Low Voltage Occupancy Sensor, Requires MPP-24 Power Pack |
|
| MDC-50V |
360° Dual-Technology PIR/Ultrasonic Line Voltage Occupancy Sensor ( Power Pack not Required) |
|
| MDC-50L |
360° Dual-Technology PIR/Ultrasonic Low Voltage Occupancy Sensor, Requires MPP-24 Power Pack |
|
Product Color: Colors may vary per product. For ordering, include Cat.No. followed by the color
code: IV(Ivory), W(White).
