Quick Details
-
Brand Name:
-
Tometek/OEM/ODM
-
Use:
-
Gigabit-capable Passive Optical Networks (GPON)
-
Warranty Time:
-
1 Year
-
Network:
-
PON
-
Supported media:
-
Single-mode fiber
-
Connector type:
-
SC/UPC
-
TX wavelength:
-
1490 nm
-
RX wavelength:
-
1310 nm
-
TX PWR:
-
+6 ~ +10 dBm
-
RX Sensitivity:
-
≤-33 dBm
-
Data rate (TX/RX):
-
2.5Gbps/1.25Gbps
-
2.488Gbps/1.244Gbps:
-
20 KM
-
Power supply:
-
Single +3.3V
-
Operating case temperature:
-
-40℃~+85℃
Quick Details
-
Type:
-
Optical Transceiver
-
Model Number:
-
TGLS-4121-D0IS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tometek/OEM/ODM
-
Use:
-
Gigabit-capable Passive Optical Networks (GPON)
-
Warranty Time:
-
1 Year
-
Network:
-
PON
-
Supported media:
-
Single-mode fiber
-
Connector type:
-
SC/UPC
-
TX wavelength:
-
1490 nm
-
RX wavelength:
-
1310 nm
-
TX PWR:
-
+6 ~ +10 dBm
-
RX Sensitivity:
-
≤-33 dBm
-
Data rate (TX/RX):
-
2.5Gbps/1.25Gbps
-
2.488Gbps/1.244Gbps:
-
20 KM
-
Power supply:
-
Single +3.3V
-
Operating case temperature:
-
-40℃~+85℃
Product Description
-

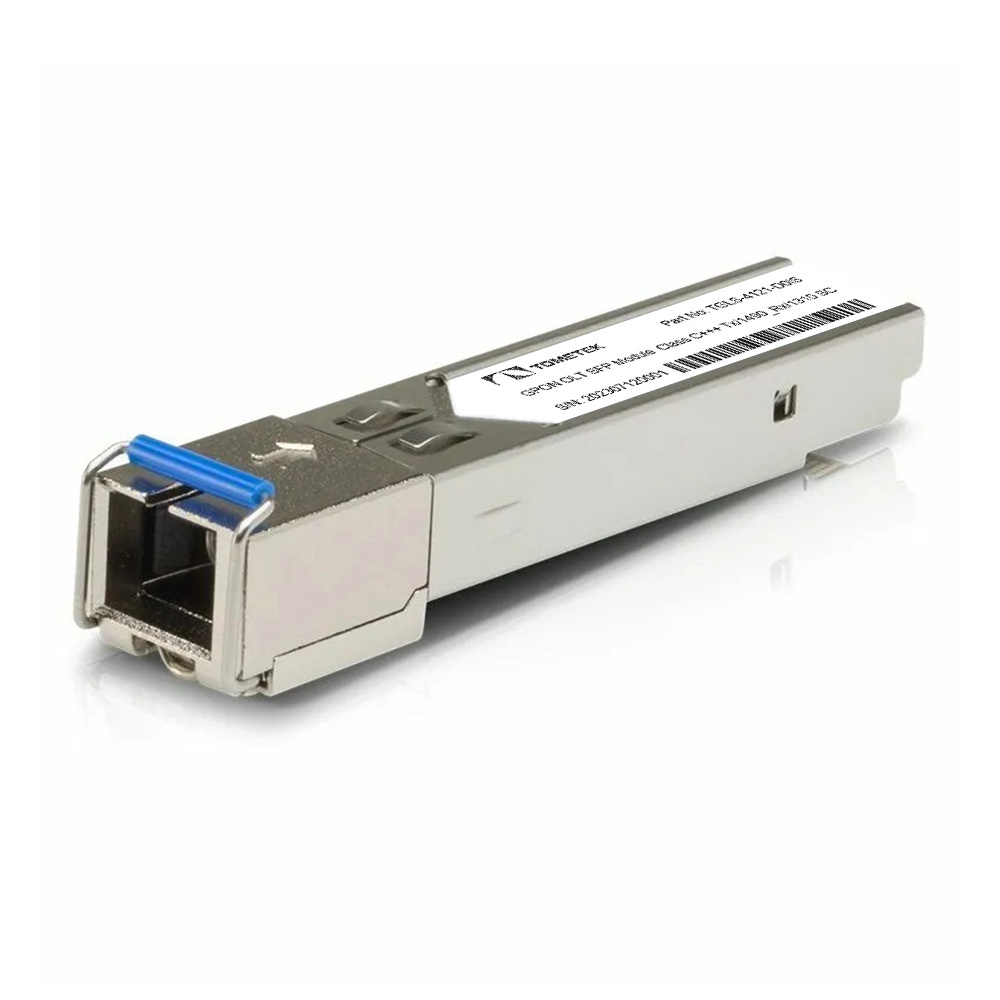

GPON OLT SFP Module
-
Class C+++
-
20KM
-
SC/UPC
-
Tx/1490nm 2.5G
-
Rx/1310nm 1.25G
-
TX PWR 6~10dBm
-
Data rate (TX 2.488Gbps / RX 1.244Gbps )
-
-40℃~+85℃
|
Model Name
|
TGLS-4121-D0IS
|
|
Standard
|
Class C+++
|
|
Supported media
|
Single-mode fiber
|
|
Connector type
|
SC/UPC
|
|
TX wavelength
|
1490 nm
|
|
RX wavelength
|
1310 nm
|
|
TX PWR
|
6~10dBm
|
|
RX Sensitivity
|
≤ -33dBm
|
|
Data rate (TX/RX)
|
2.488Gbps/1.244Gbps
|
|
Cable distance
|
20 KM
|
|
Operating case temperature
|
-40℃~+85℃
|
Features
* Single fiber bi-directional data links asymmetric
TX 2488Mbps/RX1244Mbps application
* 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
* Small Form Factor Pluggable package with SC/UPC Connector
* Reset burst-mode receiver design support more than 15dB dynamic range
* Single +3.3V power supply
* Digital diagnostic monitoring interface
* Digital burst RSSI function to monitor the input optical power level
* 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
* Small Form Factor Pluggable package with SC/UPC Connector
* Reset burst-mode receiver design support more than 15dB dynamic range
* Single +3.3V power supply
* Digital diagnostic monitoring interface
* Digital burst RSSI function to monitor the input optical power level
* LVPECL compatible data input/output interface
* LVTTL transmitter disable control
* LVTTL transmitter laser fault alarm
* LVTTL receiver Signal Detect (SD) indication
* Low EMI and excellent ESD protection
* Class I laser safety standard IEC-60825 compliant
* Operating case temperature：
Standard: 0℃~+70℃
Industrial: -40℃~+85℃
* RoHS 2.0 compliance
