Quick Details
-
Brand Name:
-
GRAD
-
Material:
-
/, fiberglass/frp
-
Weight:
-
/
-
Size:
-
/
-
Power:
-
/
-
Productivity:
-
/
-
Weight (KG):
-
120 kg
-
Product Type:
-
Drinking Water Storage fiberglass frp Water Tank
-
Keywords:
-
Water Storage tank
-
Capacity:
-
1m3-5000m3
-
Application:
-
Water Storage
-
Panel size:
-
0.5*0.5m,0.5*1m,1*1m,1*2m
-
Panel thickness:
-
6mm-24mm
-
Shape:
-
Square Shape
-
Processing:
-
Molded
Quick Details
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
panel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GRAD
-
Material:
-
/, fiberglass/frp
-
Weight:
-
/
-
Size:
-
/
-
Power:
-
/
-
Productivity:
-
/
-
Weight (KG):
-
120 kg
-
Product Type:
-
Drinking Water Storage fiberglass frp Water Tank
-
Keywords:
-
Water Storage tank
-
Capacity:
-
1m3-5000m3
-
Application:
-
Water Storage
-
Panel size:
-
0.5*0.5m,0.5*1m,1*1m,1*2m
-
Panel thickness:
-
6mm-24mm
-
Shape:
-
Square Shape
-
Processing:
-
Molded
Product Description
Drinking Water Storage Multi function fiberglass frp water tank
FRP water tank is assembled by moulding single board, sealing , metallic structure, and plumbing. We can assemble the one with 0.125m³~5,000m³ according to your need.
FRP water tank is a new product used internationally . Assembled using FRP board possessing the advantages of non-pollution, light in weight, corrosion proofing, long service live and simple maintenance. High water quality is assured for the use of food grade resin.
Application:
* Water storage(drinking water)
* National,provincial and state parks
* Truck stops
* School water supply
* Water recirculation systems
* Agricultural feeding operations
* Residential cisterns
* Campgrounds
* Car washes containment
* Resorts
* Housing developments
FRP water tank is a new product used internationally . Assembled using FRP board possessing the advantages of non-pollution, light in weight, corrosion proofing, long service live and simple maintenance. High water quality is assured for the use of food grade resin.
Application:
* Water storage(drinking water)
* National,provincial and state parks
* Truck stops
* School water supply
* Water recirculation systems
* Agricultural feeding operations
* Residential cisterns
* Campgrounds
* Car washes containment
* Resorts
* Housing developments
frp water tank specification
1.FRP Water Tank is combined by standard plates, including 1000mm*2000mm,1000mm*1000mm, 1000mm*500mm and 500mm*500mm four kinds;
2.The dimension of water tank, length, width and height are based on 500;
3.The water tank basic drawing(can be provided by us);
4.Technical requirements for water tank base construction:
a. The levelness tolerance is no more than 5mm,for the whole basic flat which is composed by concrete stays; and the tolerance of the flat diagonal length difference is no more than 20mm.
b. The distance from the basic flat to the wall(four sides) is no less than 600mm.
2.The dimension of water tank, length, width and height are based on 500;
3.The water tank basic drawing(can be provided by us);
4.Technical requirements for water tank base construction:
a. The levelness tolerance is no more than 5mm,for the whole basic flat which is composed by concrete stays; and the tolerance of the flat diagonal length difference is no more than 20mm.
b. The distance from the basic flat to the wall(four sides) is no less than 600mm.
Cautions
1. Please do not store water higher than 70°C or other liquid (chemicals, oil and so on).
2. Water tank must keep away from fire.
3. Prevent pollutants and plunges from outside.
4. Use soft apparatus to clean. As to the new water tank, clean twice before use.
2. Water tank must keep away from fire.
3. Prevent pollutants and plunges from outside.
4. Use soft apparatus to clean. As to the new water tank, clean twice before use.

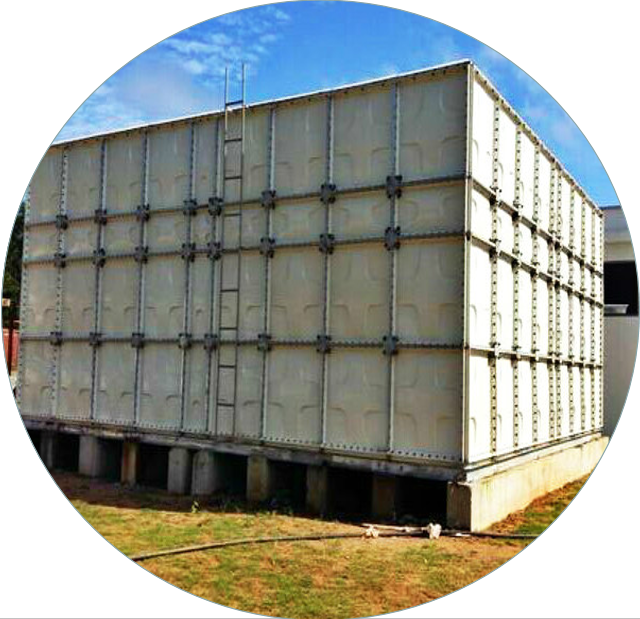

Partial GRAD frp water tank project show
Project in Bengal
Project in Equatorial Guinea
Project in Columbia
Project in Dubai
Project in Samoa
Project in South Africa
Specification
Packing & Delivery
1.Water tank panel usually packed with plywood pallet
2.Accessories usually loaded plywood boxes,in order to avoid lost
2.Accessories usually loaded plywood boxes,in order to avoid lost
