Quick Details
-
Weight:
-
79 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Application field:
-
Dust Floating
-
Color:
-
silver
-
Model:
-
R03
-
Function:
-
Dust collector
-
Power:
-
none
-
Certification:
-
no
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AKMK
-
Dimension(L*W*H):
-
1145*981*925
-
Weight:
-
79 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Application field:
-
Dust Floating
-
Color:
-
silver
-
Model:
-
R03
-
Function:
-
Dust collector
-
Power:
-
none
-
Certification:
-
no
Description

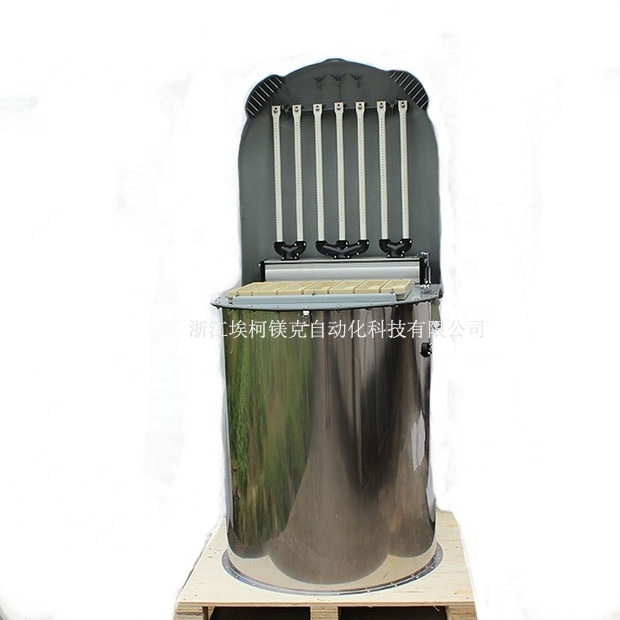

R03 is a cylindrically shaped dust collector for venting of pneumatically filled silos. Its stainless steel body contains vertically mounted, POLYPLEAT filter elements. The air jet cleaning system is integrated in the hinged weather protection cover.
Silo Venting Filters
Function
Dust separated from the air flow by special POLYPLEAT filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements.
Features
Compact 800 mm (30 in) diameter, stainless steel body with bottom flange
24.5 m2 (264 sq ft) filter surface
Maintenance height = 1,100 mm (3.6 ft)
High filtration efficiency due to POLYPLEAT filtering elements
Low dust emission level due to B.I.A.-certified filter media
Maintenance-free air jet cleaning unit integrated inside weather protection cover
Safe weather protection cover with lockable quick release
Tool-free filtering element removal
Benefits
Robust design
Perfectly accessible due to compact design
Filtering element replacement within a few minutes by one person
Options
Weld-on bottom ring
Multifunctional electronic differential pressure meter
Winter protection for solenoid valves
SILOTOP is a cylindrically shaped dust collector for venting of pneumatically filled silos. The stainless steel body contains vertically mounted, POLYPLEAT filter elements. The air jet cleaning system is integrated in the hinged weather protection cover.
Dust separated from the air flow by special POLYPLEAT filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements.
Performance and Technical Features:
• Compact 800mm (30 in) diameter 304 stainless steel body with bottom flange
• 24.5m2 (264 sq ft) filter surface
• Maintenance height = 1,145mm (3.75 ft)
• High filtration efficiency due to POLYPLEAT filtering elements
• Low dust emission level due to B.I.
