Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
800
-
Drive Wheel:
-
3*2
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
Licheng
-
Place of Origin:
-
Henan, China
-
Dimensions (L x W x H) (mm):
-
3100*1120*1180mm
-
Cargo Tank Dimension:
-
1
-
Product name:
-
electric tricycle for construction site
-
Thickness of body:
-
5mm
-
Weight:
-
800kg
-
Name:
-
electric tricycle for construction site
-
Box size:
-
1700*1100*500mm
-
Rotating speed:
-
3500r/min
-
Voltage:
-
60V
-
Drive motor power:
-
2000w
-
Tire:
-
4.50-12 / 5.00-14
-
Color:
-
Customer's Request
Quick Details
-
Condition:
-
New
-
Horsepower:
-
Other
-
Emission Standard:
-
Euro 4
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
800
-
Drive Wheel:
-
3*2
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
Licheng
-
Place of Origin:
-
Henan, China
-
Dimensions (L x W x H) (mm):
-
3100*1120*1180mm
-
Cargo Tank Dimension:
-
1
-
Product name:
-
electric tricycle for construction site
-
Thickness of body:
-
5mm
-
Weight:
-
800kg
-
Name:
-
electric tricycle for construction site
-
Box size:
-
1700*1100*500mm
-
Rotating speed:
-
3500r/min
-
Voltage:
-
60V
-
Drive motor power:
-
2000w
-
Tire:
-
4.50-12 / 5.00-14
-
Color:
-
Customer's Request

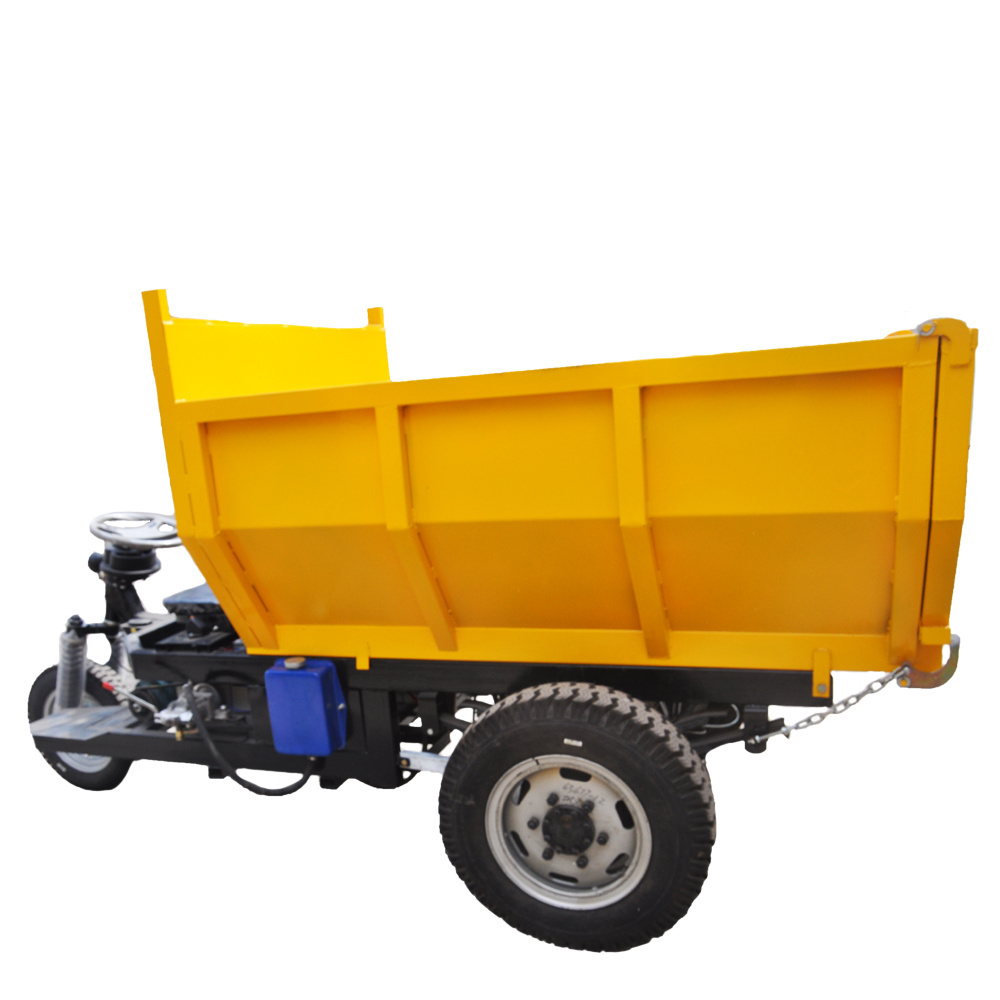

1.5 tons mini electric tricycle/three wheels dump tricycle /small tipper truck for mining LC155
Product Introduction of Electric Mini Dumper Tricycle
The Electric Mini Dumper Tricycle is a new type of self-unloading tricycle, driven by electric for fuel, in the form of hydraulic movements. It consists of chassis, hydraulic lifting mechanism, cargo hold, equipment and other components. The use of this tricycle is very extensive, can be used in mining transport, garbage transport, and construction site transport and so on. Dump tricycle has a very convenient pull cargo and unloading capacity, and easy to operate, can save more time and efficiency.
| PRODUCT | SPECIFICATION | |||
| MODEL | LC155 | LC165 | LC180 | LC190 |
| SEAT | 1 | 1 | 1 | 1 |
| SIZE (mm) | 2850x1000x1100 | 3000x1100x1250 | 3200x1200x1400 | 3600x1400x1500 |
| BUCKET SIZE (mm) | 1400x1000x300 | 1600x1100x40 | 1800x1200x400 | 2000x1400x550 |
| LOADING CAPACITY | 1000KG | 1500KG | 2000KG | 3000KG |
| VOLTAGE | 48V | 60V | 72V | 60V |
| LIFTING MOTOR | 1200W | 1200W | 1200W | 1500W |
| DRIVING MOTOR | 1100W | 1800W | 3000W | 7500W |
| TYRE SIZE (F/R) | 400-12/450-14 | 450-12/550-14 | 450-12/650-16 | 500-14/750-16 |
| TYRE NUMBER | 3 PCS | 3 PCS | 3 PCS | 3 PCS |
| MAX SPEED | 20 KM/H | 25 KM/H | 35 KM/H | 45 KM/H |
Main Features of the hydraulic mini dumper:
1) No pollution, high performance, low loss and energy saving.
2) Easy to operate and maintain without technical training.
3) Heavy load,wide applying.
4) It is the ideal transport in mining,flourmill,brickyard,etc.
1. The hydraulic lifting system
2. The controlling system
3. The motor system,it adopts the driving motor and the lifting motor
The picture of the loading box
