- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
as customer request, 220V/380V
-
Weight (KG):
-
0
-
Product name:
-

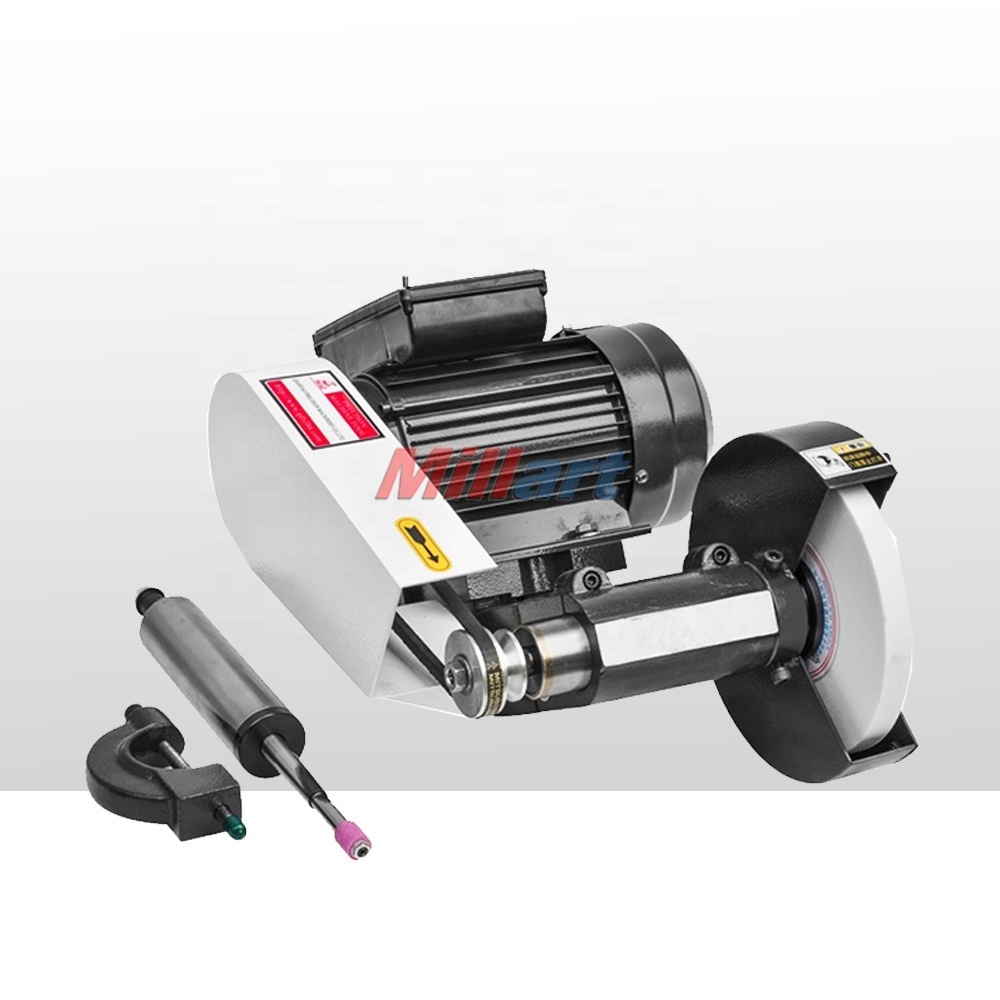

Grinding Machine
-
Model:
-
GD-125
-
After-sales Service Provided:
-
Engineers
-
Color:
-
Support Customized
-
Internal grinding spindle:
-
25*16*6mm
-
Grinding depth:
-
3-90mm
-
Wheel diameter size:
-
125*32*20mm
-
Diameter:
-
32mm
-
Horse power:
-
750W 50HZ
Quick Details
-
Year:
-
2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Millart
-
Voltage:
-
as customer request, 220V/380V
-
Weight (KG):
-
0
-
Product name:
-
Grinding Machine
-
Model:
-
GD-125
-
After-sales Service Provided:
-
Engineers
-
Color:
-
Support Customized
-
Internal grinding spindle:
-
25*16*6mm
-
Grinding depth:
-
3-90mm
-
Wheel diameter size:
-
125*32*20mm
-
Diameter:
-
32mm
-
Horse power:
-
750W 50HZ
Product Overview
Title goes here.
1,Both the main shafts have been specially designed and the world-wide precision bearing is used to fit the main shafts which are made of alloy steel heat-treated for high wear resistance ,precision .As well as maintaining to the lowest temperature for durability and stability .
2,The motor base and the spindle bushing are adjustable .
3,The motor is well designed with a special and nice appearance .The RPM of the motor varies depending in the size work piece.
4,The grinder is capable of grinding the work piece to a minimum of 3mm in outer diameter and from 2mm up in inner diameter (bore) with the accuracy within 0.003mm and a well finished surface (supplied with special attachments)
5,The spindle bushing in made of cost iron .And supported by three surfaces therefor it is durable and elastic .
6,Materials such as steel ,iron ,copper(brass) ,aluminum ,cast iron ,plastics ,porcelain ,marble ,regarless of beingheat treated or not. Can be grond on this machine which function lie a cylindrical grinder so it may lower the cost of the production
PRODUCT SPECIFICATIONS
|
Specification of Lathe tool Grinder
|
GD-125
|
|
Internal grinding spindle
|
25*16*6mm
|
|
Grinding depth
|
3-90mm
|
|
Installation dimension(center hole)
|
25*40mm
|
|
Wheel diameter size
|
125*32*20mm
|
|
Diameter
|
32mm
|
|
Voltage
|
220V/380V
|
|
Horse power
|
750W 50HZ
|
|
Speed(outer)
|
1400RPM
|
|
Speed(inner)
|
12000RPM
|
