Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-

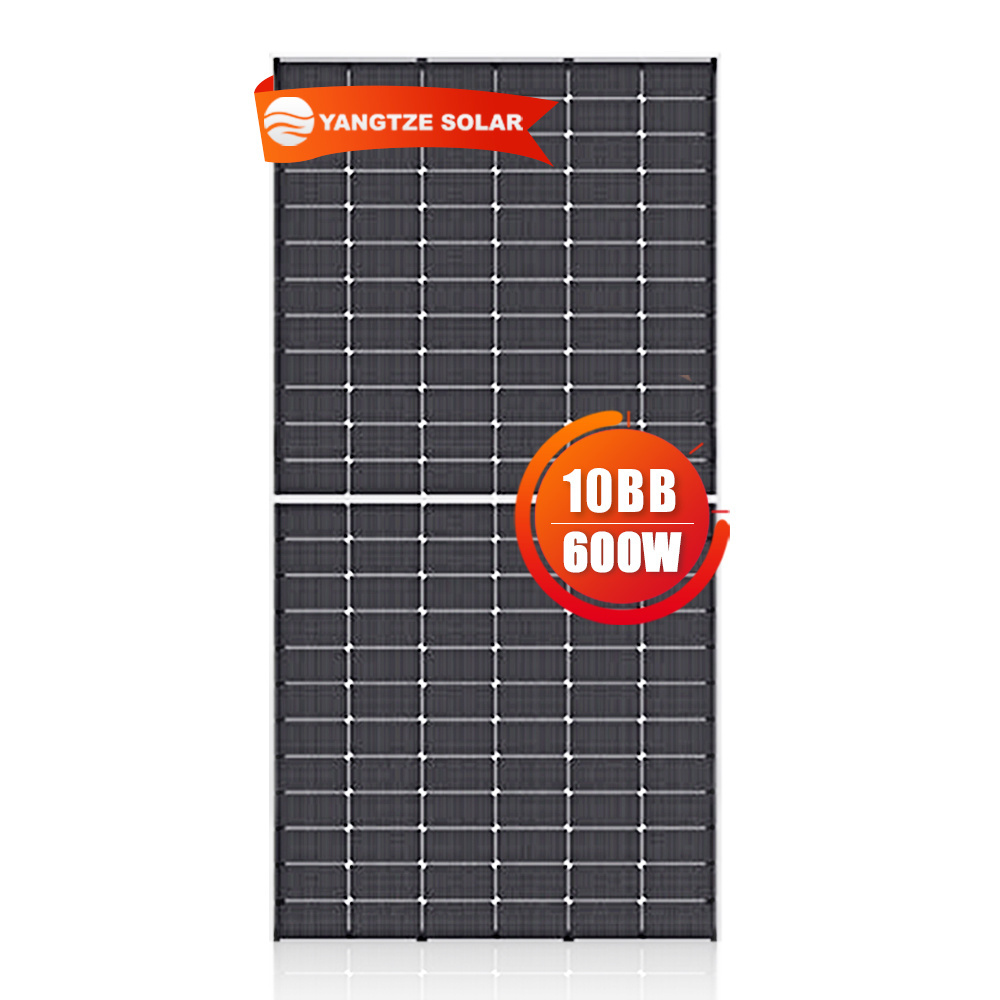

YS600M-72
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2274*1134*35mm
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Waterproof
-
Solar cell:
-
10BB Mono 166mm*83mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
Transparent
-
OEM Order:
-
Acceptable
-
HS code:
-
8541402000
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black
-
Panel Efficiency:
-
23.27%
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS600M-72
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2274*1134*35mm
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Waterproof
-
Solar cell:
-
10BB Mono 166mm*83mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
Transparent
-
OEM Order:
-
Acceptable
-
HS code:
-
8541402000
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO
SPECIFICATIONS
| Module type | YS550M-72 | YS560M-72 | YS570M-72 | YS580M-72 | YS590M-72 | YS600M-72 |
| Maximum Power (Pmax) | 550W | 560W | 570W | 580W | 590W | 600W |
| Maximum Power Voltage (Vmp) | 40.90V | 41.10V | 41.30V | 41.50V | 41.90V | 42.10V |
| Maximum Power Current (Imp) | 13.45A | 13.63A | 13.27A | 13.98A | 14.08A | 14.25A |
| Open-circuit Voltage (Voc) | 49.62V | 49.72V | 49.82V | 49.91V | 49.95V | 49.99V |
| Short-circuit Current (Isc) | 14.03A | 14.33A | 14.62A | 14.81A | 14.92A | 14.97A |
| Module Efficiency STC | 21.33% | 21.72% | 22.10% | 22.49% | 22.87% | 23.27% |
| Operating Temperature | -40~+85℃ | |||||
| Maximum System Voltage | 1000VDC/1500VDC (IEC) | |||||
| Maximum series fuse rating | 25A | |||||
| Power tolerance | 0~+3% | |||||
| Temperature coefficients of Pmax |
-0.35%/℃ |
|||||
| Temperature coefficients of Voc |
-0.28%/℃ |
|||||
| Temperature coefficients of Isc | 0.048%/℃ | |||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | |||||
