Quick Details
-
Brand Name:
-
YUSHI
-
Model Number:
-
YUT2800
-
Product name:
-
Digital ultrasonic flaw detector
-
Operating Mode:
-
Pulse echo, double crystal
-
Application:
-
Industrial detection
-
Curve:
-
DAC
-
Power supply:
-
AC 220V,DC 12V
-
Working Frequency:
-
(0.5-15)MHz
-
Definition:
-
≥32dB
-
Vertical Linearity Error:
-
≤3%
-
Horizontal Linearity Error:
-
≤0.3%
-
Battery Working Time:
-
9 hours
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YUSHI
-
Model Number:
-
YUT2800
-
Product name:
-
Digital ultrasonic flaw detector
-
Operating Mode:
-
Pulse echo, double crystal
-
Application:
-
Industrial detection
-
Curve:
-
DAC
-
Power supply:
-
AC 220V,DC 12V
-
Working Frequency:
-
(0.5-15)MHz
-
Definition:
-
≥32dB
-
Vertical Linearity Error:
-
≤3%
-
Horizontal Linearity Error:
-
≤0.3%
-
Battery Working Time:
-
9 hours
ultrasonic weld test equipment portable digital flaw tester ndt ultrasound for sale
Application
Electric Power Industry, Petrochemical, Boiler Pressure Vessel, Steel Structure, Military Industry, Aerospace, Railway Transportation, Automobile, Machinery and other fields of Ultrasonic Flaw Detection.
Feature
Details

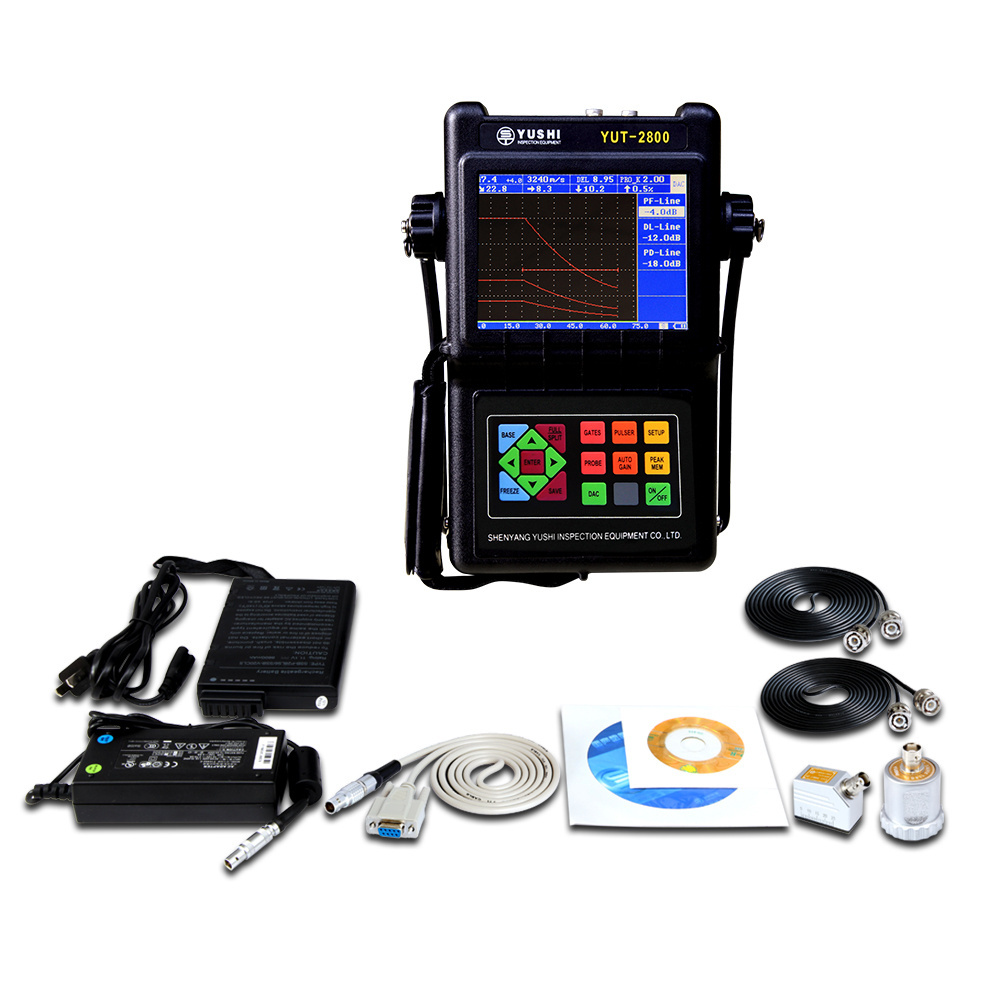

Specifications of YUT2800 Ultrasonic Flaw Detector
|
Full Screen Display Function
|
The echo display area covers the entire screen
|
|
Bulk Storage
|
Up to 1000 data sets can be stored, including waveforms, curves and parameters, etc.
|
|
Measuring Point
|
Peak Mode or Front Mode
|
|
Echo-echo Method
|
No need of zero calibration, the net thickness of the base material can be directly measured through the coating
|
|
Wave Crest Memory
|
Real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to exact positioning and fast testing of the flaws
|
|
Automatic Gain
|
Automatically adjust the gain to the preset amplitude height
|
|
Alarming Function
|
Afferent echo/echo loss alarming
|
|
Solid Waveform
|
The solid waveform can enchancing the waveform visual contrast so the omission will hardly happen during the fast testing
|
|
Real-time Clock
|
Automatically record the date and time of the stored waveforms
|
|
Display Freezing
|
Catching the waveform and sound path data at any moment
|
|
Flaw Positioning
|
Real-time displaying the sound path S, horizontal height X, depth Y, and wave height
|
|
Flaw Quantify
|
Real time display the dB difference value and sl quantitative value
|
|
Digital Inhibition
|
0-80%, increasing by 1%, not affecting the linearity and gain
|
|
Independent Measurement
Shutters |
2 independent measurement gates, monitoring the echo amplitude and the sound path distance
|
|
DAC/AVG Curve Functions
|
Perfect DAC curve functions enable the curves to change along with the changes of the gain, sound path, and displacement
|
|
Transverse Wave Testing
Method |
When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab thickness
|
|
Pulse Generator
with Changeable Width and Scope |
The voltage of the pulse generator can be changed between 50V to 400V continuously,The width of the pulse can be change d between 25ns to 1000ns continuously
|
|
Damping
|
Changed among 4 levels: 33/50/100/500Ω
|
|
Wave Signal Filter
|
Changed between 2 levels: 1-4MHz/0.5-15MHz
|
|
Repeating Frequency
|
Changed freely to avoid unreal signal
|
|
Languages
|
Chinese and English
|
|
Data Communication
|
Communicating with the computer via RS232 interface to transfer the waveform and data
|
With industry-leading probe production technology,We select the high performance of piezoelectric ceramic chips,regardless of the cost to build high quality.
Main Comparison Between Different Models
|
Model
|
YUT2600
|
YUT2620
|
YUT2800
|
YUT2820
|
|
True Color TFT LCD
|
√
|
√
|
√
|
√
|
|
DAC Curve
|
√
|
√
|
√
|
√
|
|
AVG Curve
|
χ
|
√
|
χ
|
√
|
|
Φ Value Calculation
|
χ
|
√
|
χ
|
√
|
|
Distance Compensation
|
χ
|
√
|
χ
|
√
|
|
Changeable Squared Ultrasonic Pulse
|
χ
|
χ
|
√
|
√
|
|
Wide/Narrow Band Filters
|
χ
|
χ
|
√
|
√
|
|
Four Impedance Matching
|
χ
|
χ
|
√
|
√
|
|
Data Logger
|
√
|
√
|
√
|
√
|
|
UtView Software
|
√
|
√
|
√
|
√
|
