Quick Details
-
Brand Name:
-
Hengchang
-
Voltage:
-
220V (voltage can be customized), 220V (voltage can be customized)
-
Dimension(L*W*H):
-
3200*920*2100mm, 3200*920*2100mm(Dimension can be customized)
-
Weight:
-
2500 KG
-
Features:
-
Save resources / Easy to operate
-
Key Selling Points:
-
Easy to operate
-
Raw material:
-
Sugarcane, firewood, sawdust, rice husk
-
Spare parts:
-
Screw propeller,heating ring
-
Function:
-
Make Stick Shape Briquette
-
Mositure content:
-
8%-12%
-
Briquette shape:
-
Square, cube,hexagonal,cylinder
-
Usage:
-
Biomass briquettes
-
Final shapes:
-
Round, rectangular, hexagonal stick shape and others
Quick Details
-
Application:
-
Produce fuel briquettes
-
Production Capacity:
-
300kg-5000kg/h, 300kg-5000kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
Hengchang
-
Voltage:
-
220V (voltage can be customized), 220V (voltage can be customized)
-
Dimension(L*W*H):
-
3200*920*2100mm, 3200*920*2100mm(Dimension can be customized)
-
Weight:
-
2500 KG
-
Features:
-
Save resources / Easy to operate
-
Key Selling Points:
-
Easy to operate
-
Raw material:
-
Sugarcane, firewood, sawdust, rice husk
-
Spare parts:
-
Screw propeller,heating ring
-
Function:
-
Make Stick Shape Briquette
-
Mositure content:
-
8%-12%
-
Briquette shape:
-
Square, cube,hexagonal,cylinder
-
Usage:
-
Biomass briquettes
-
Final shapes:
-
Round, rectangular, hexagonal stick shape and others
Product Description

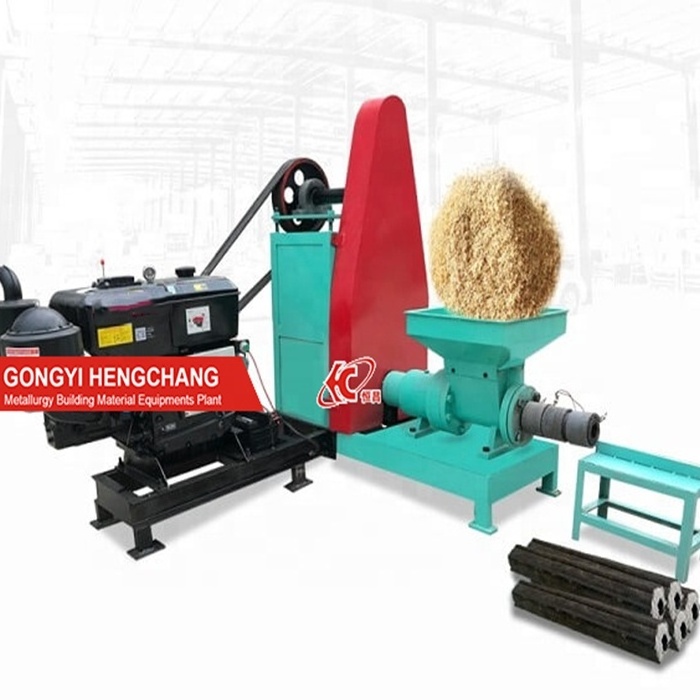

350kg/H Biomass Coconut Wood Dust Charcoal Briquette Making Press Machine
Introduction of
Biomass Coconut Wood Dust Charcoal Briquette Making Press Machine
Raw material:
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 8%-12%,size3-5mm
If moisture>12% may need dryer,We have air flow dryer and drum dryer.
If material size >5mm will need hammer mill or wood crusher.
Raw material -----Crusher------Dryer-----Making rods(Charcoal making machine)------Carbonization furnace---------Finished product.
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 8%-12%,size3-5mm
If moisture>12% may need dryer,We have air flow dryer and drum dryer.
If material size >5mm will need hammer mill or wood crusher.
Raw material -----Crusher------Dryer-----Making rods(Charcoal making machine)------Carbonization furnace---------Finished product.
Detailed Images
When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawust forward,extrusion into a rod-shaped solid rod with center hole.
wood briquette making machine
/
biomass briquette machines
/
wood briquette machine
Working Principle of
Biomass Coconut Wood Dust Charcoal Briquette Making Press Machine
The use of the inherent characteristics of wood raw materials, the pressure of the screw through the high temperature softening of the biomass material, at high temperature and pressure, the wood raw materials in the lignin cellulose fiber combination to form a semi-finished products with a central hole.
Main Features of
Biomass Coconut Wood Dust Charcoal Briquette Making Press Machine
1. the pellets machine mainly used for making wood pellets which can milled with size of ∅6-12mm pellets.
2. machine adopt imported hi-quality bearings and motors to guarantee its performance to meet the production requests.
3. Driven by gear with more stronger than belt design, and capacity is 10% higher than normal design machine.
4. machine with safety prevention device is intelligent control once the machine overload or accidenting case posed.
