Quick Details
-
Model Number:
-
US Type
-
Process:
-
Drop Forged
-
Surface:
-
Electric Galvanized,Hot Dip Galvanized,Powder coating
-
Size:
-
From 1/8" to 3.1/2"
-
Brand:
-
Q-RAN
-
Model:
-
G450
-
Bolt Color:
-
Red,Green,Yellow...
Quick Details
-
Material:
-
Carbon steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Q-RAN
-
Model Number:
-
US Type
-
Process:
-
Drop Forged
-
Surface:
-
Electric Galvanized,Hot Dip Galvanized,Powder coating
-
Size:
-
From 1/8" to 3.1/2"
-
Brand:
-
Q-RAN
-
Model:
-
G450
-
Bolt Color:
-
Red,Green,Yellow...

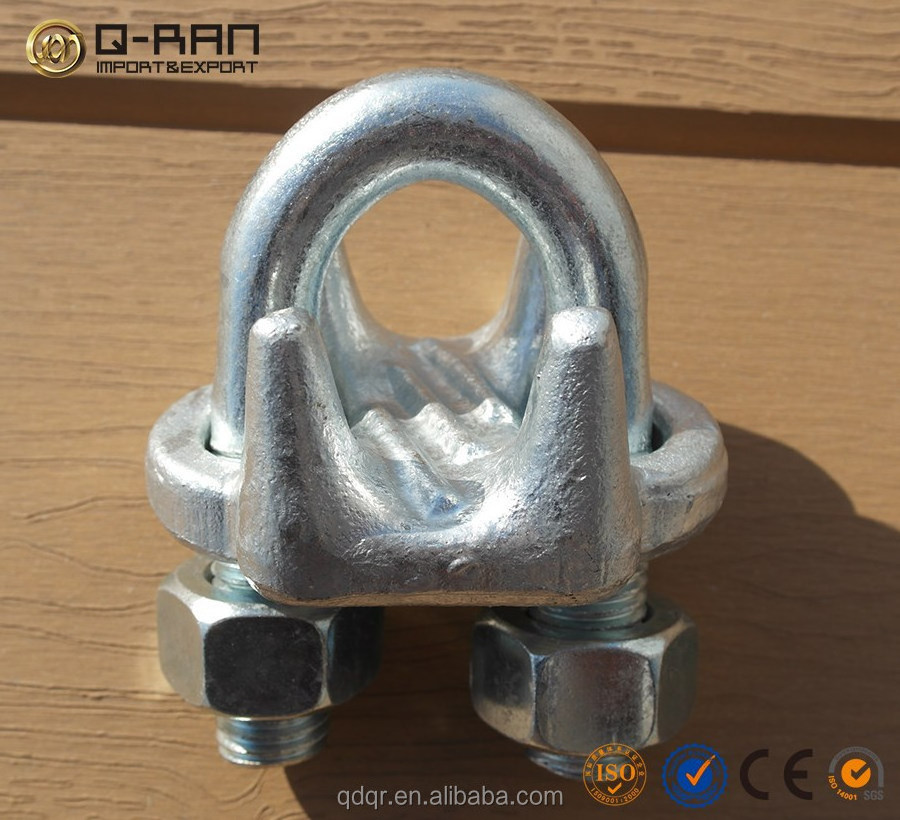

Rigging Hardware US Type Drop Forged Wire Rope Clip 3/4" U Bolt Clamp
What is the details of our wire rope clip?
2.Category :Rigging hardware
3.Origin :China mainland
4.Type :US type
6.Material :Carbon Steel
7.Surface :Electric galvanized, Hot dip galvanized,Powder coating
8.Process :Drop Forged
9.Size :From 1/8" To 3-1/2"
Dimensions for our wire rope clip
|
SIZE(IN)
|
DIMENSIONS(IN) | WEIGHT PER 100 LBS | ||||||
| A | B | C | D | E | G | H | ||
| 1/8 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.81 | 0.99 | 6 |
| 3/16 | 0.25 | 0.97 | 0.56 | 0.56 | 0.5 | 0.94 | 1.18 | 10 |
| 1/4 | 0.31 | 1.03 | 0.5 | 0.75 | 0.66 | 1.19 | 1.43 | 19 |
| 5/16 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 1.31 | 1.66 | 28 |
| 3/8 | 0.44 | 1.5 | 0.75 | 1 | 0.91 | 1.63 | 1.94 | 48 |
| 7/16 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 1.91 | 2.28 | 78 |
| 1/2 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 1.91 | 2.28 | 80 |
| 9/16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 2.06 | 2.5 | 109 |
| 5/8 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 2.06 | 2.5 | 110 |
| 3/4 | 0.62 | 2.75 | 1.44 | 1.5 | 1.39 | 2.25 | 2.84 | 142 |
| 7/8 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 2.44 | 3.16 | 212 |
| 1 | 0.75 | 3.5 | 1.81 | 1.88 | 1.77 | 2.63 | 3.47 | 252 |
| 1-1/8 | 0.75 | 3.88 | 2 | 2 | 1.91 | 2.81 | 3.59 | 283 |
| 1-1/4 | 0.88 | 4.44 | 2.22 | 2.31 | 2.17 | 3.13 | 4.13 | 438 |
| 1-3/8 | 0.88 | 4.44 | 2.22 | 2.38 | 2.31 | 3.13 | 4.19 | 442 |
| 1-1/2 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 3.41 | 4.44 | 544 |
| 1-5/8 | 1 | 5.31 | 2.62 | 2.75 | 2.66 | 3.63 | 4.75 | 704 |
| 1-3/4 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 3.81 | 5.24 | 934 |
| 2 | 1.25 | 6.44 | 3 | 3.38 | 3.28 | 4.44 | 5.88 | 1300 |
| 2-1/4 | 1.25 | 7.13 | 3.19 | 3.38 | 3.19 | 4.56 | 6.38 | 1600 |
| 2-1/2 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 4.05 | 6.63 | 1900 |
| 2-3/4 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 5 | 6.88 | 2300 |
| 3 | 1.5 | 9.19 | 3.88 | 4.75 | 4.44 | 5.31 | 7.61 | 3100 |
| 3-1/2 | 1.5 | 10.75 | 4.5 | 5.5 | 6 | 6.19 | 8.38 | 4000 |
What is the process of our wire rope clip?
Packing and Shipping
Packing:
Safety Carton and pallet,sack and pallet,according to customers requirement.
Shipping:
1. FedEx/DHL/UPS/TNT for samples , Door-to-Door;
2. By Air or by Sea for batch goods , for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time:
3-7 days for samples; within 30 days for batch goods.
What is the Applications of our wire rope clip?
Wire rope clip is widely used in machinery, metallurgy, electric power, railway, water conservancy, port, mining, construction, port, paper making, chemical industry, etc.
Qingdao Q-RAN import & export co., ltd is major in producing and sale rigging hardware,such as shackle,eyebolt,eye nut,wire rope clip,turnbuckle and so on.
