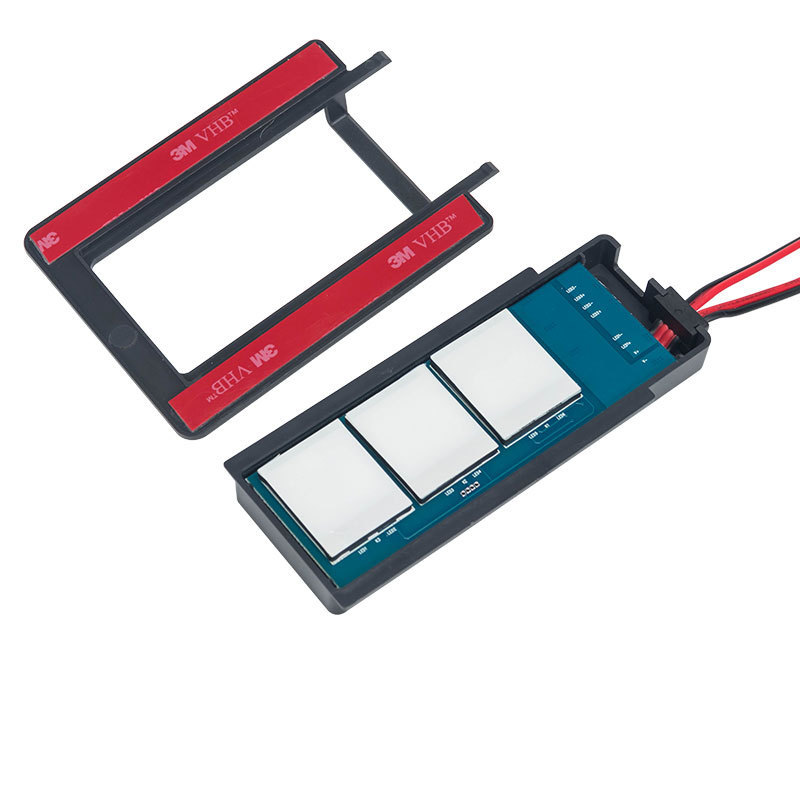

Smart Led Light Mirror Touch Sensor Switch For Mirror 12V Strips Led Dimmable 3 Keys Mirror Sensor Touch Switch

Smart Led Light Mirror Touch Sensor Switch For Mirror 12V Strips Led Dimmable 3 Keys Mirror Sensor Touch Switch

FOB Reference Price: Get Latest Price

≥100 Pieces

US $4.71

≥200 Pieces

US $4.54

≥500 Pieces

US $4.37

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Surmountor

Product name:: TD012B

Application:: For mirror

Certificates:: CE, RoHS

Current:: 4A Max

MOQ:: 1pcs

Loading Power:: 48W for 12V, 96W for 24V

Package:: white box

Input and output cable length:: 200mm

Quick Details

Warranty(Year):: 3-Year

Type:: MANUAL SWITCH

Place of Origin:: China

Brand Name:: Surmountor

Product name:: TD012B

Application:: For mirror

Certificates:: CE, RoHS

Current:: 4A Max

MOQ:: 1pcs

Loading Power:: 48W for 12V, 96W for 24V

Package:: white box

Input and output cable length:: 200mm

_{Samrt Led Light Mirror Touch Sensor Switch For Mirror 12V Strips Led Dimmable 3 Keys Mirror Sensor Touch Switch}

Product Description

TProduct Name	TD012B
Current	4A
Main Function	Mirror touch switch ON / OFF + dimming +memory function.
Dimming Function	Hold the hand over the sensor more than 1 second, adjusting the brightness from 3% to 100%.
Memory Function	12V-24V memory fucntion
Backlight	Blue (OFF) to white (ON)

Product performance description
Samrt Led Light Mirror Touch Sensor Switch For Mirror 12V Strips Led Dimmable 3 Keys Mirror Sensor Touch Switch

Status:

1) When the backlight is completely off, it indicates a sleep state.

2) Blue and white backlight: The blue backlight indicates the corresponding output is off in the standby state, and the white backlight indicates the function is enabled and the corresponding output is on.

Details Images

Samrt Led Light Mirror Touch Sensor Switch For Mirror 12V Strips Led Dimmable 3 Keys Mirror Sensor Touch Switch

Product Usage

- Product usage introduction

1. Laser cut the back of the mirror for the 3 kyes.

2. Remove the 3M file and prepare to mount the clip.

3. Make sure the cross in clip is in align with the signs.

4. Insert the touch switch slowly into the clip .

5. Align the sensing area on the mirror.

6. Fix the sensor on the back of the mirror.

7. Connect the sensor and the light strip.

8. Connect the sensor to the power supply.

9. Installaon is complete.

Packing&Shipping

1pcs sensor switch in a small white box, 200pcs small white box to a big carton.
