- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhenhua
-
Voltage:
-
220V/380V/440v
-
Dimension(L*W*H):
-
2000*2500*1950mm
-
Weight:
-
7000 kg
-
Product name:
-

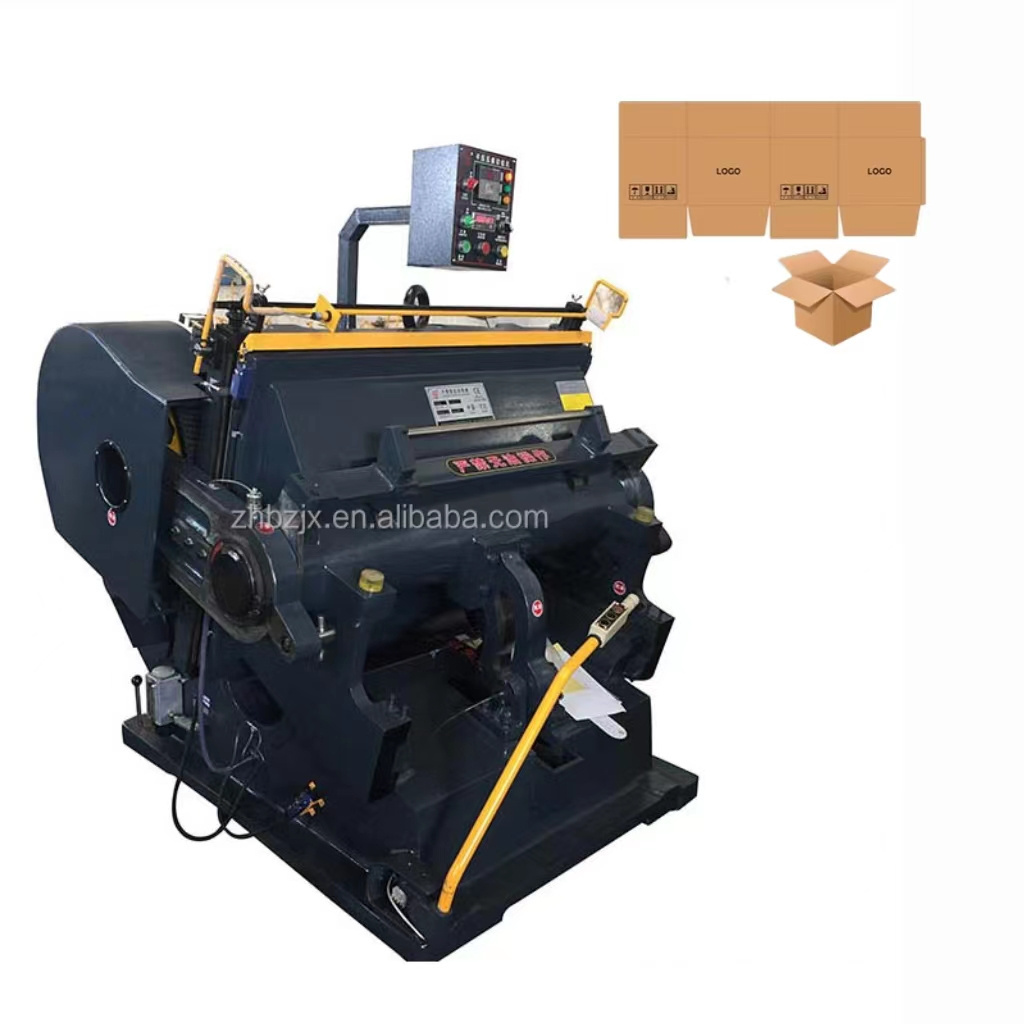

Die Punching Machine/Manual Die Cutter Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Cardboard, corrugated board,firbboard, plastic,PVC, leather, Linoleim
-
Platen size:
-
1100*800mm
-
Max cutting rule:
-
Less or equal 50m
-
Working speed:
-
18+/-2 sheet/min
-
Net weight:
-
4500kgs
-
Packaging:
-
Plastic film (Wooden case as customer requirement)
-
Machine size:
-
750/930/1100/1200/1300/1400/1500 as customer requirement
-
Remarks:
-
other voltage could customized
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
50 m/min
-
Max. workable width:
-
1500mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhenhua
-
Voltage:
-
220V/380V/440v
-
Dimension(L*W*H):
-
2000*2500*1950mm
-
Weight:
-
7000 kg
-
Product name:
-
Die Punching Machine/Manual Die Cutter Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Cardboard, corrugated board,firbboard, plastic,PVC, leather, Linoleim
-
Platen size:
-
1100*800mm
-
Max cutting rule:
-
Less or equal 50m
-
Working speed:
-
18+/-2 sheet/min
-
Net weight:
-
4500kgs
-
Packaging:
-
Plastic film (Wooden case as customer requirement)
-
Machine size:
-
750/930/1100/1200/1300/1400/1500 as customer requirement
-
Remarks:
-
other voltage could customized
Machine Detail
|
Model
|
Max. Die Area (mm)
|
Working speed
strokes/min |
Max length of knife row
|
Motor
(kw) |
Weight
(kg) |
Overall Dimensions
(LxWxH) |
|
ML750
|
750*520
|
25+2
|
＜15m
|
2.2
|
2000
|
1260x1350x1280mm
|
|
ML930
|
930*700
|
23+2
|
＜25m
|
4.0
|
2900
|
1670*1670*1630mm
|
|
ML1100
|
1100x800
|
20±2
|
＜30m
|
5.5
|
4200
|
1900x1780x1700mm
|
|
ML1200
|
1200x830
|
18±2
|
＜35m
|
5.5
|
4400
|
1920x2000x1800mm
|
|
ML1300
|
1300x920
|
18±2
|
＜40m
|
5.5
|
5000
|
2000x2140x2000mm
|
|
ML1400
|
1400x1000
|
17±2
|
＜45m
|
7.5
|
6500
|
2100x2400x1930mm
|
|
ML1500
|
1500x1050
|
17±2
|
＜45m
|
7.5
|
7000
|
2100x2400x1930mm
|
|
ML1600
|
1600x1250
|
16±2
|
＜50m
|
11
|
9500
|
2170x2560x2230mm
|
|
ML1800
|
1800x1400
|
16±2
|
＜62m
|
11
|
12000
|
2240x2800x2230mm
|
