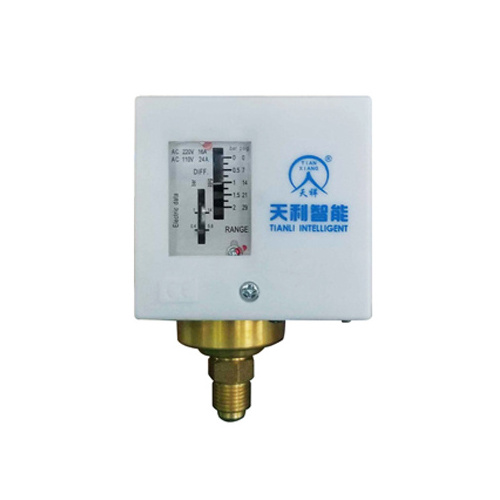

TLP series pressure control can protect compressors in refrigeration and air-condition plant, and keep them from over-low pressure
or over-high suction pressure.
TLP series pressure control can start and stop refrigeration compressors and fans of air condensers
TLP series pressure control can be used not only in fluoride refrigeration,but also in air and liquid.
TLP series pressure control are fitted with 3 kind of changeover switch.,
A single pole double throw (SPDT), a double pole single throw (DPDT) and a double pole double throw (DPDT) . The action value can
be determined according to the required pressure.
TLP series pressure controllers are equipped with copper gas box connectors for the ammonia refrigerant system, or stainless steel
gas box connectors to meet the requirements of corrosive gas or hydraulic systems such as liquid ammonia.
TLP series pressure controller have the flexible microswitch structure ensures reliable and fast conversion function.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Tianxiang
-
Model Number:
-
TLP10
-
Max. Current:
-
24
-
Max. Working Pressure:
-
17 Bar
-
Ambient temperature:
-
- 20 to + 70 ℃
-
Medium temperature:
-
- 20 to 120 ℃
-
Cable connection The cable entry:
-
Can be used for 15mm dia.
-
Product name:
-
TLP pressure switch
-
Material:
-
Plastic
-
Medium:
-
air fruid
-
Type:
-
TLP2
-
MOQ:
-
1 Piece
-
Usage:
-
refrigeration and air-condition plant
-
Weight:
-
0.4kg
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianxiang
-
Model Number:
-
TLP10
-
Max. Current:
-
24
-
Max. Working Pressure:
-
17 Bar
-
Ambient temperature:
-
- 20 to + 70 ℃
-
Medium temperature:
-
- 20 to 120 ℃
-
Cable connection The cable entry:
-
Can be used for 15mm dia.
-
Product name:
-
TLP pressure switch
-
Material:
-
Plastic
-
Medium:
-
air fruid
-
Type:
-
TLP2
-
MOQ:
-
1 Piece
-
Usage:
-
refrigeration and air-condition plant
-
Weight:
-
0.4kg
Product Description
Introduction
Specification
Type & data（Unit：MPa）
|
Symbol
|
Model
|
Low pressure
|
|
Reset
|
|
Max.work pressure
|
|
|||
|
|
|
Adjust range
|
Differential
|
L.P.
|
H.P.
|
L.P.
|
H.P.
|
|||
|
Low pressure (L.P.)
|
TLP10
|
0-0.2
|
0.04-0.1
|
Aut.
|
|
1.7
|
|
|||
|
|
|
|
|
|
|
|
|
|||
Mouting plate (unit:mm)
Connection
Placing Order：
Any special requirements please remark behind the model number.
1. Inch connection size(7/16-20UNF), please state letter "E" after the model number.
2. "MG" stands for capillary , standard length is lm(including flare nuts), please mark the special Length requirement.
3. "MGL" stands for “Capillary with thread"
A stands for "Stainless steel air box assembly
1. Inch connection size(7/16-20UNF), please state letter "E" after the model number.
2. "MG" stands for capillary , standard length is lm(including flare nuts), please mark the special Length requirement.
3. "MGL" stands for “Capillary with thread"
A stands for "Stainless steel air box assembly
Contact from
Dimension (Unit:mm)
Single pressure
