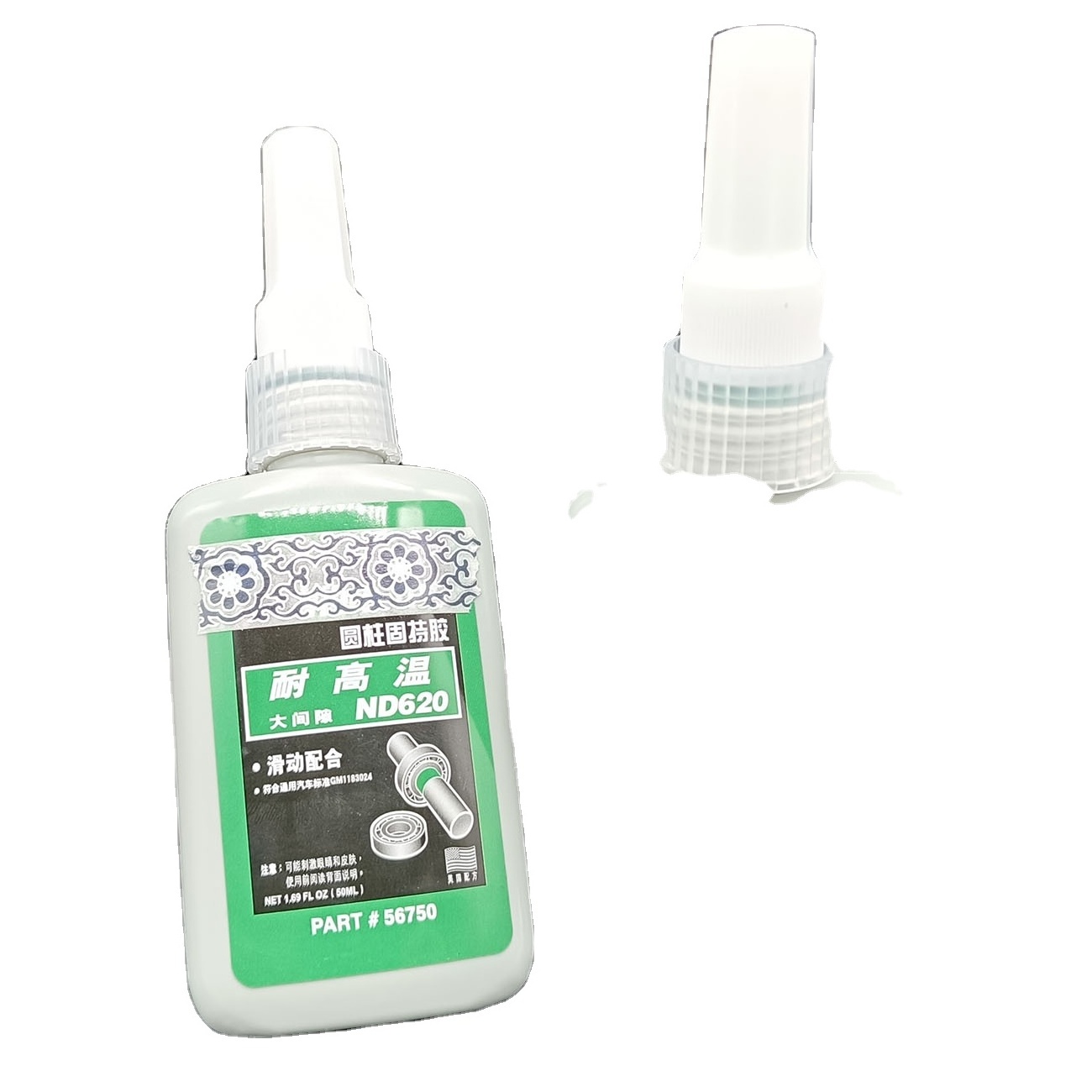

620 anaerobic retaining compound SUPER GLUE designed for metal cylindrical assembly applications

620 anaerobic retaining compound SUPER GLUE designed for metal cylindrical assembly applications

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.38

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

EINECS No.:: 230-391-5

Place of Origin:: Shanghai, China

Brand Name:: ND

Model Number:: ND620

Type:: One Componet

NAME:: anaerobic retainin cylindrical assembly applications

Material:: Polyuerthane

Feature:: Eco-friendly

Packing:: Bottle

Certificate:: MSDS RoHS

Advantage:: Strong Adhestion

OEM:: Allowed

Curing time:: Tensile Shear strength after 48 hours at 20° to 25°C

Quick Details

CAS No.:: 7085-85-0

Other Names:: Super Glue

MF:: C50H94O24

EINECS No.:: 230-391-5

Place of Origin:: Shanghai, China

Brand Name:: ND

Model Number:: ND620

Type:: One Componet

NAME:: anaerobic retainin cylindrical assembly applications

Material:: Polyuerthane

Feature:: Eco-friendly

Packing:: Bottle

Certificate:: MSDS RoHS

Advantage:: Strong Adhestion

OEM:: Allowed

Curing time:: Tensile Shear strength after 48 hours at 20° to 25°C

Product Description

anaerobic Adhesive .

620 is a high temperature, high strength,
anaerobic retaining compound designed for metal cylindrical assembly applications. The product performs on aluminum, steel, plated, stainless steel, and special alloy parts. ND620 exhibits excellent temperature and solvent resistant.

Typical Applications

620 Locks shaft and hubs together for gears, bearing,bushings.Bonds pins, adaptors, plugs.

Instructions for Use
Ensure parts are clean, dry and free from oil and grease.
Procedure for Application
Product is normally hand applied from the bottle onto parts.

Product Paramenters

Technical Features
Properties of Uncured Material
Chemical Type Anaerobic
Appearance Green
Toxicity Low
Solids 100%
Viscosity @ 25ºC, cP
Brookfield RVT,
Spindle 5 @ 20 rpm 5000 to 10000

Specific Gravity 1.16
Performance of Cured Material
Typical Values
Fixture Time 15-20 min@72oF
Full Cure Time 24 hrs @ 72oF
Temperature Range -60oF to 350oF
(-51oC to 177oC)
Shear Strength
After 24 hour cure
Steel pins and collars >2500 psi

After 24 hr cure, 24 hrs at 177oC, tested at 22 oC Steel pins and collars >3500 psi

Environmental and Fluid Resistance
(Shear strength values)
Typical Values
Heat age 105%
Engine oil@ 150oC 98%
Brake fluid @ 150oC 100%
ATF @ 150oC 80%
50/50 water/
ethylene glycol @ 120oC 80%
Water @ 100oC 80%
Gasoline @ 25oC 100%
Diesel fuel @ 25oC 100%
Ethyl Alcohol @25oC 95%

General Information

Storage
Product should be stored in a cool and dry location at
temperatures between 14°F (-10°C) to 86°F (30°C).
Shelf life is 2 years from date of manufacture when
stored at 72±8°F (22±4°C).
Note
Where gap size is large or where the surface is
uneven, apply a Vibra-TITE primer to help cure the
product through volume. Gasket Maker can be roller
coated, screen printed or applied by pads.
Health & Safety in use
IRRITANT: Contains Methacrylate Esters which
may irritate eyes, respiratory organs and skin. In
case of contact with the skin, wash immediately
with plenty of water.

Manufacturing Technique

620 anaerobic Adhesive is a high temperature, high strength,
anaerobic retaining compound designed for metal cylindrical assembly applications

Sheer strength on steel after 12 month soak

For safe handling information on this product, consult the Material Safety Data Sheet, (MSDS)

Application

Recommend Products

Packing & Delivery

anaerobic Adhesive Gasket Maker is a single component, medium strength, thixotropic, anaerobic sealant ......... tube .50ml, 250ml and liter (bottle)

Spec 2ml 10ml 50ml 250ml 1L (Drums packing) Package 24pcs/ctn 24pcs/ctn 24pcs/ctn Silver Paper Bag

packing :

20GP Container Load 2200 ctns 2050 ctns 2050 ctns 72 drums High temperature silicone seal waterproof transparent silicone sealant
Delivery Time
15 -35 days upon the receipt of the down payment
