Quick Details
-
Insulation Material:
-
PVC (Polyvinyl Chloride)
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

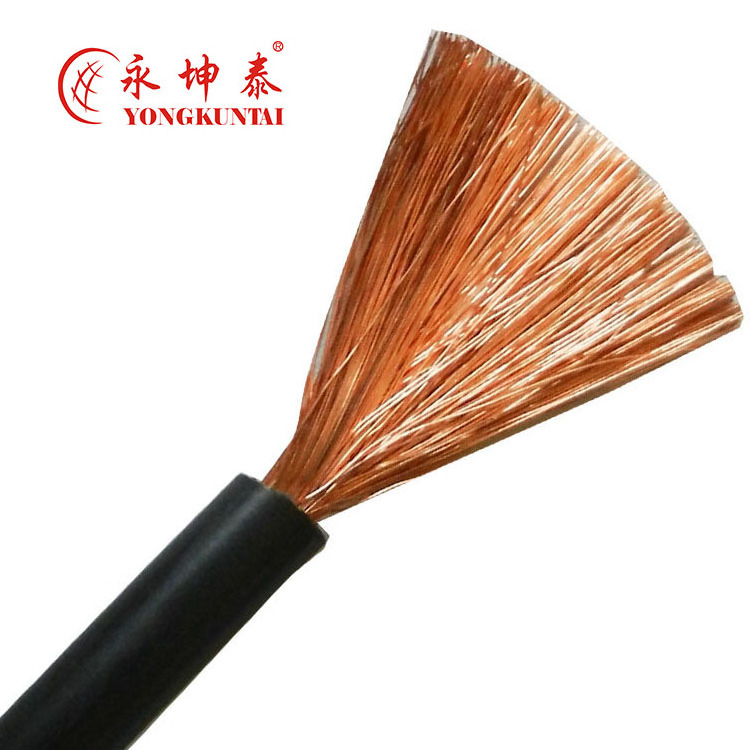

PVC insulated copper clad aluminum electric wires and cables
-
Voltage Rating:
-
450/750V
-
Rated temperature:
-
0℃ to 70 ℃
-
No.of cores:
-
1
-
No.of wires:
-
14-21-28-43-56-70 or as you require
-
Diameter of single CCA wire:
-
0.22mm
-
Specification:
-
1-1.5-2-3-4-5sqmm or as you require
-
Shape:
-
Round
-
Color:
-
red,black,white,cream,yellow,bule,green,brown or as you require
Quick Details
-
Application:
-
building,construction,battery cable,car cable
-
Conductor Material:
-
CCA,CCAW,Copper Clad Aluminium,Copper Clad Aluminum
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC (Polyvinyl Chloride)
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
PVC insulated copper clad aluminum electric wires and cables
-
Voltage Rating:
-
450/750V
-
Rated temperature:
-
0℃ to 70 ℃
-
No.of cores:
-
1
-
No.of wires:
-
14-21-28-43-56-70 or as you require
-
Diameter of single CCA wire:
-
0.22mm
-
Specification:
-
1-1.5-2-3-4-5sqmm or as you require
-
Shape:
-
Round
-
Color:
-
red,black,white,cream,yellow,bule,green,brown or as you require
Product Description
Wholesale H07V-K/RV single core electric cables wire for instrument and telecom
|
Usage
|
Model
|
Cross-sectional Area
(mm²) |
Conductor
Material |
No.of Wires/Dia.
(mm) |
Insulation
Material |
OD
(mm) |
|
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible
required |
RV
|
1mm²
|
copper clad aluminum
|
14/0.22
|
PVC
|
2.52
|
|
|
|
1.5mm²
|
copper clad aluminum
|
21/0.22
|
PVC
|
2.8
|
|
|
|
2mm²
|
copper clad aluminum
|
28/0.22
|
PVC
|
3.1
|
|
|
|
3mm²
|
copper clad aluminum
|
43/0.22
|
PVC
|
3.8
|
|
|
|
4mm²
|
copper clad aluminum
|
56/0.22
|
PVC
|
4.15
|
|
|
|
5mm²
|
copper clad aluminum
|
70/0.22
|
PVC
|
4.5
|
1)Product Name: PVC insulated copper clad aluminum electric wires and cables
2)Model No.:RV
3) Cross-sectional Area---No.of Wires/Diameter---Overall Diameter
2)Model No.:RV
3) Cross-sectional Area---No.of Wires/Diameter---Overall Diameter
1mm²---14/0.22mm---2.52mm
1.5mm²---21/0.22mm---2.8mm
2mm²---28/0.22mm---3.1mm
3mm²---43/0.22mm---3.8mm
4mm²---56/0.22mm---4.15mm
5mm²---70/0.22mm---4.5mm
4)Conductor Material:copper clad aluminum
5)Insulation Material: PVC (Polyvinyl Chloride)
6)Color: red,black,white,cream,yellow,bule,green,brown or as you require
3mm²---43/0.22mm---3.8mm
4mm²---56/0.22mm---4.15mm
5mm²---70/0.22mm---4.5mm
4)Conductor Material:copper clad aluminum
5)Insulation Material: PVC (Polyvinyl Chloride)
6)Color: red,black,white,cream,yellow,bule,green,brown or as you require
7)Rated Voltage: 450/750V
8) Rated Temperature: 0°C to 70 °C
8) Rated Temperature: 0°C to 70 °C
9)Usage:Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where
flexible required.
10)Our company can accept all trading manners, e.g EXW,FOB,CIF,DDP,DDU. etc….
We can also accept any kinds of payment terms, such as TT,L/C,D/P,O/A, Western Union, etc…
flexible required.
10)Our company can accept all trading manners, e.g EXW,FOB,CIF,DDP,DDU. etc….
We can also accept any kinds of payment terms, such as TT,L/C,D/P,O/A, Western Union, etc…
|
Nominal cross section
（mm2）
|
Conductor core(mm)
|
Insulation thickness
(mm)
|
Average outer diameter(mm)
|
|
Conductor resistance at 20°C max.
|
Insulation resistance at 70°C max.(≤MΩ•km)
|
||||||
|
|
No. of individual wires/diameter
（mm）
|
|
Min.
(mm)
|
Max.(mm)
|
Cu(Ω/km)
|
|
||||||
|
H05V-K
|
|
|
|
|
|
|
||||||
|
0.5
|
16/0.20
|
0.6
|
2.1
|
2.5
|
39
|
0.013
|
||||||
|
0.75
|
24/0.20
|
0.6
|
2.2
|
2.7
|
26
|
0.011
|
||||||
|
1
|
32/0.20
|
0.6
|
2.4
|
2.8
|
19.5
|
0.01
|
||||||
|
H07V-K
|
|
|
|
|
|
|
||||||
|
1.5
|
30/0.25
|
0.7
|
2.8
|
3.4
|
13.3
|
0.01
|
||||||
|
2.5
|
49/0.25
|
0.8
|
3.4
|
4.1
|
7.98
|
0.009
|
||||||
|
4
|
56/0.30
|
0.8
|
3.9
|
4.8
|
4.95
|
0.007
|
||||||
|
6
|
84/0.30
|
0.8
|
4.4
|
5.3
|
3.3
|
0.006
|
||||||
|
10
|
84/0.40
|
1
|
5.7
|
6.8
|
1.91
|
0.0056
|
||||||
|
16
|
126/0.40
|
1
|
6.7
|
8.1
|
1.21
|
0.0046
|
||||||
|
25
|
196/0.40
|
1.2
|
8.4
|
10.2
|
0.78
|
0.0044
|
||||||
|
35
|
276/0.40
|
1.2
|
9.7
|
11.7
|
0.554
|
0.0038
|
||||||
|
50
|
396/0.40
|
1.4
|
11.5
|
13.9
|
0.386
|
0.0037
|
||||||
|
70
|
360/0.50
|
1.4
|
13.2
|
16
|
0.272
|
0.0032
|
||||||
|
95
|
475/0.50
|
1.6
|
15.1
|
18.2
|
0.206
|
0.0032
|
||||||
|
120
|
612/0.50
|
1.6
|
16.7
|
20.2
|
0.161
|
0.0029
|
||||||
Cables Purpose
It applies to electrical appliances,instrument and telecom device with rated volage up to and including 450/750 volts.
The main features of the flame retardant cable or wire is hard to catch on fire or that the continuous burning of cables is very limited when it is on fire.It applies to places to places with special demands for flame retardant property.
Fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condition.It is used in places with special demands for fire resistance property.Clients can select any tape of cable for practical needs.
The main characteristics of low smoke,low halogen,flame retardant cable is low smoke emission and low release of HCL gas besides the property of flame retardant.It can be used in spaces with speial demands for density of smoke emission and the release value of HCL gas when cable is burnt.
Standards of the products
GB 5023-97,JB08743-98 (and enterprise standard)
Flame-retardant,fire resistance,low smoke low halogen cable(wire) of the national standards for the production of standard GB/T19666-2005.Industry-standard product GA306-2007 standard.
PACKING and SHIPPING
Payment Term: 30%deposit before production 70%balance payment before delivery.
Delivery Time: 15-20 days after receive your payment.
Package: 100m/roll, film package, white bags or as required.
Delivery Time: 15-20 days after receive your payment.
Package: 100m/roll, film package, white bags or as required.
OUR PRODUCTS
Our main products:Couple of series and thousands of specification,which including 06/1KV XLPE insulated,fire retardant,nominal PVC insulated and armored power cable.450/750V PVC insulated wire,welding wire,Branch cable,Low smoke halogen free cable,shield cable,telephone wire and Lan cable .
OUR COMPANY
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friendly LSOH 28 varieties, more than 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
CUSTOMER DISTRIBUTION AREA
Our products are sold to all cities in China and export to America, Europe, Middle East, Southeast Asia and Africal, more than 30countries in the word.
