Quick Details
-
Brand Name:
-
DESG
-
Voltage:
-
220-240V
-
Dimension(L*W*H):
-
350x265x115mm 325x150x435mm 215x180x350mm
-
Weight (KG):
-
30
-
Name:
-
Portable mobile Busbar Machine
-
Application:
-
For Busbar Construction
-
Model Number:
-
CH70 CB200A CWC200
-
Color:
-
Red
-
MOQ:
-
1 Pcs
-
Delivery time:
-
7 Days
-
Package:
-
Wood Carton
-
Motor power:
-
35T
-
Brand:
-
DESG
-
Certification:
-
CE ISO
Quick Details
-
Max. Thickness (mm):
-
12 mm
-
Max. Width (mm):
-
200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DESG
-
Voltage:
-
220-240V
-
Dimension(L*W*H):
-
350x265x115mm 325x150x435mm 215x180x350mm
-
Weight (KG):
-
30
-
Name:
-
Portable mobile Busbar Machine
-
Application:
-
For Busbar Construction
-
Model Number:
-
CH70 CB200A CWC200
-
Color:
-
Red
-
MOQ:
-
1 Pcs
-
Delivery time:
-
7 Days
-
Package:
-
Wood Carton
-
Motor power:
-
35T
-
Brand:
-
DESG
-
Certification:
-
CE ISO
Product Description
Hydraulic Bus Bar Machine Ch70 Cb200a Cwc200 Copper Aluminum Row Busbar Bending And Punching Cutting Machine Busbar Machine
Technical parameters
|
Model
|
CH-60
|
CH-70
|
|
|
Output
|
31T
|
35T
|
|
|
Depth of throat
|
95mm
|
110mm
|
|
|
Angle steel
|
4-8#
|
5-10#
|
|
|
Channel steel
|
6-10#
|
6-12#
|
|
|
Copper and
aluminum row
|
3-10mm
|
3-12mm
|
|
|
iron plate
|
3-8mm
|
3-10mm
|
|
|
Standard setting
|
Ø10.5，Ø 13.8，Ø 17.5，Ø 20.5
|
Ø10.5，Ø 13.8，Ø 17.5，Ø 20.5
|
|
|
Weight
|
20kg
|
35kg
|
|
|
Volume
|
350x220x75mm
|
350x265x115mm
|
|
|

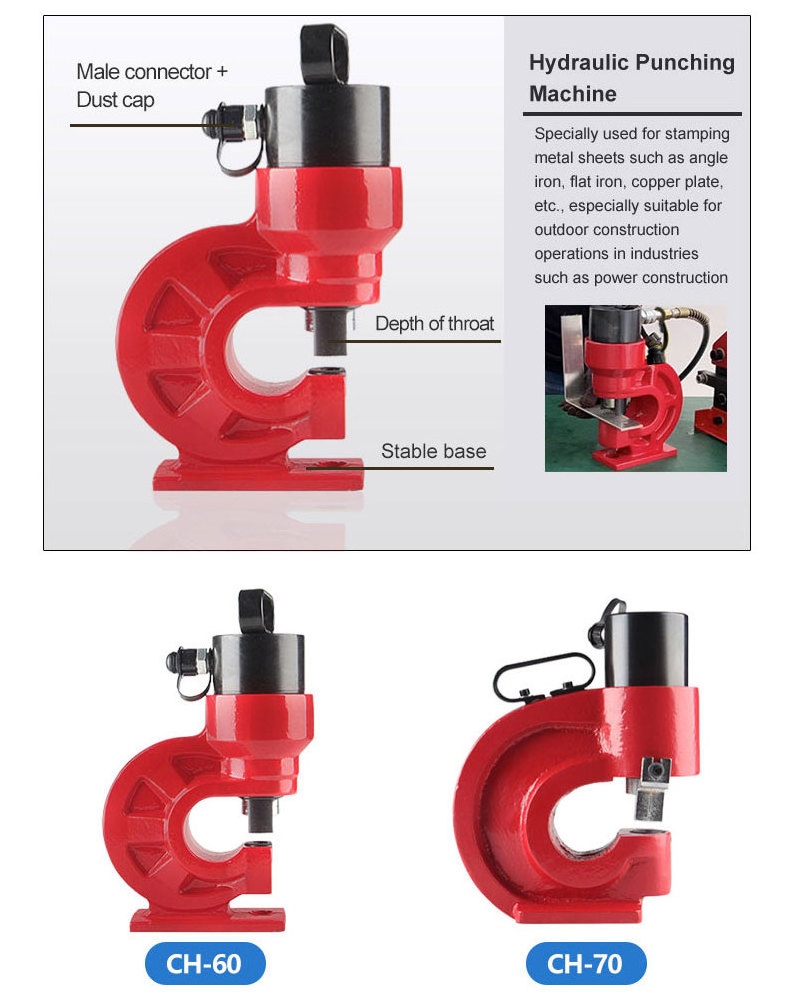

Product features
|
Portable hydraulic punching machines are suitable for L, H flat steel, copper and aluminum punching machines. The bottom is
designed with a flat seat, which is stable and not easy to sway. Single hole oil return, the mold is made of high carbon tungsten
alloy steel, which is not easily damaged.
|
|
|
|
Model
|
Output
|
Thickness of sheet
|
Width of sheet
|
Size
|
Weight
|
||||
|
CWC-150
|
25T
|
2-10mm
|
≤150mm
|
270x150x410mm
|
30kg
|
||||
|
CWC-200
|
35T
|
2-12mm
|
≤200mm
|
325x150x435mm
|
38kg
|
||||
|
Product features
|
Suitable for wiring engineering of switch boxes and automatic control panels of distribution boards, adopting a separate type for
easy portability. Single hole oil return, especially suitable for outdoor construction operations in industries such as power and construction. |
|
|
|
|
||||
|
Model
|
Output
|
Thickness of sheet
|
Width of sheet
|
Size
|
Weight
|
||||
|
CB-150D
|
20T
|
≤10mm
|
≤150mm
|
360x130x260mm
|
21kg
|
||||
|
CB-200A
|
25T
|
≤12mm
|
≤200mm
|
215x180x350mm
|
29kg
|
||||
|
Product features
|
Suitable for wiring engineering of switch boxes and automatic control panels of distribution boards, adopting a separate type for
easy portability. The minimum bending angle of copper or aluminum bars can reach 90 degrees. Single hole oil return, especially for outdoor construction operations in industries such as power and construction |
|
|
|
|
||||
|
Model
|
Electric pump
|
|
|
|
Extra work pressure
|
63MPA
|
70MPA
|
|
|
Flow
|
1L/min
|
1L/min
|
|
|
Power of motor
|
750W
|
750W
|
|
|
Voltage
|
220V
|
220V
|
|
|
Oil storage capacity
|
5L
|
5L
|
|
|
Overall dimensions
|
350x270x490
|
350x270x490
|
|
|
Control mode
|
Electromagnetic valve foot switch
|
Electromagnetic valve foot switch
|
|
