Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
110/220/380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIENUO
-
Dimension(L*W*H):
-
1600*800*2650mm
-
Product name:
-

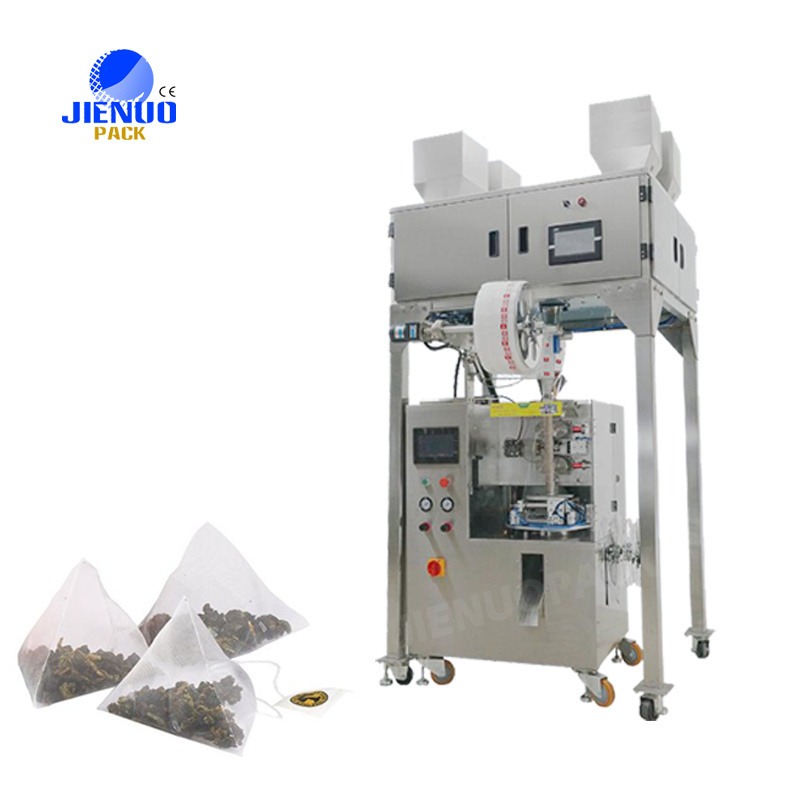

Tea Bag Packing Machine
-
After-sales Service Provided:
-
Video Technical Support
-
Bag type:
-
Triangle Bag
-
Usage:
-
Filling Packing Machine
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
300
-
Voltage:
-
110/220/380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIENUO
-
Dimension(L*W*H):
-
1600*800*2650mm
-
Product name:
-
Tea Bag Packing Machine
-
After-sales Service Provided:
-
Video Technical Support
-
Bag type:
-
Triangle Bag
-
Usage:
-
Filling Packing Machine
Product Description
1. The machine is suitable for green tea, black tea, scented tea, coffee, Chinese tea, health tea, herbal tea, granule.
2. Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning
3. The machine can automatically finish the load, measuring, bag making, sealing, cutting, counting, finished product conveyor, and other functions
4. Adopt the imported ultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing, cutting-stock accuracy
5. Packing material: filter paper, thread, composite membrane
2. Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning
3. The machine can automatically finish the load, measuring, bag making, sealing, cutting, counting, finished product conveyor, and other functions
4. Adopt the imported ultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing, cutting-stock accuracy
5. Packing material: filter paper, thread, composite membrane
Technical Parameters
|
Item
|
Content
|
|
Capacity
|
30-50bags/Min (Determined by packing material)
|
|
Filling precision
|
≤±2% (Determined by packing material)
|
|
Bag size
|
60-80(W)*40-80(L)mm
|
|
Packing film
|
120mm, 140mm, 160mm
|
|
Sealing type
|
Triangle bag and flat bag
|
|
Filling range
|
1-10ml
|
|
Film thickness
|
0.04-0.06mm
|
|
Packing material
|
Nylon, Polyester net non-woven fabrics, ultrasonic sealing materials
|
|
Rolled outer diameter
|
≤∮400mm
|
|
Rolled paper core inside diameter
|
∮76mm
|
|
Air consumption
|
0.6Mpa 0.4m3/min
|
|
Total power
|
2.2KW
|
|
Power
|
220V 50HZ
|
|
Air compressor
|
less than 1 cube
|
|
Dimension
|
1600*800*2650mm
|
Sample
Packing & Delivery
standard export case
