Quick Details
-
Weight:
-
25 KGS
-
Color:
-
Green,Blue
-
Key word:
-
Y20 air-operated handheld rock gadder machine
-
Operation:
-
Hand held
-
Air consumption:
-
25
-
Life time:
-
Depends on the materials you are going to use
Quick Details
-
No-Load Speed:
-
2000 rpm
-
Warranty:
-
6 months
-
Place of Origin:
-
Fujian, China
-
Weight:
-
25 KGS
-
Color:
-
Green,Blue
-
Key word:
-
Y20 air-operated handheld rock gadder machine
-
Operation:
-
Hand held
-
Air consumption:
-
25
-
Life time:
-
Depends on the materials you are going to use

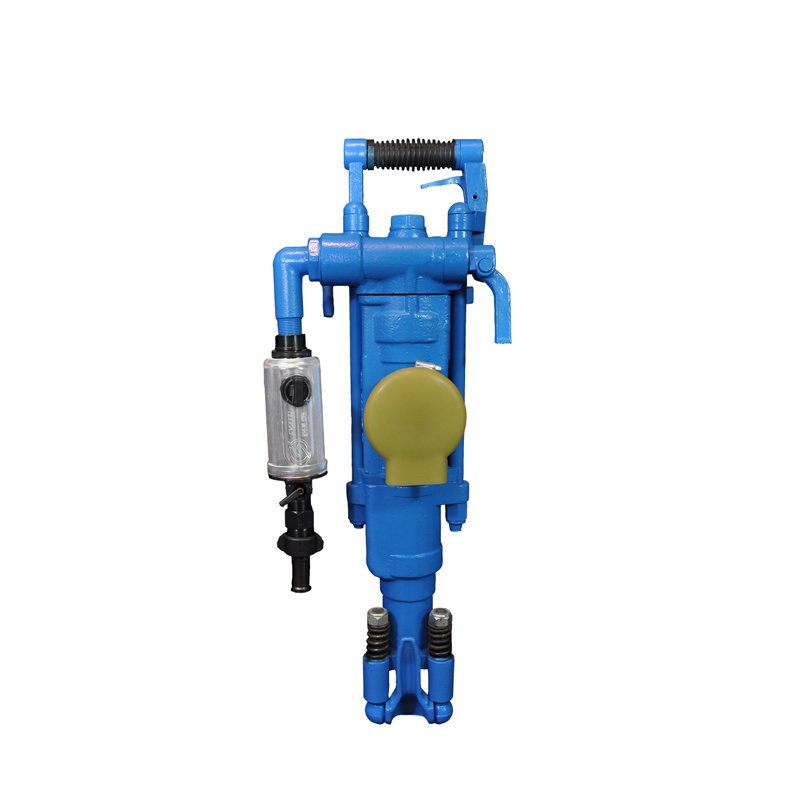

Products name: Y20 air-operated handheld rock gadder machine
Products features:
For hand-held rock drills, we have Y6, Y20, Y19A Y24 and Y26. Among them, the Y6, Y20 and Y24 are widely used in quarrying or construction industry.
Model Y20 Hand-held Rock Drill is intended for drilling downward and inclined blast holes in medium-hard rock (f=8~18).The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.
Products technical data:
|
Model |
Weight |
Air consumption |
Length |
Drill steel chunk hex |
Bore Dia. |
Drilling depth |
Impact rate |
Hose connection |
|
|
Kg |
L/s |
mm |
mm |
mm |
m |
Hz |
mm |
|
Y20 |
18 |
25 |
605 |
22*105 |
30-42 |
3 |
34 |
16 or 19 |
|
Y19A |
19 |
43 |
600 |
22*108 |
30-2 |
5 |
35 |
19 |
|
Y24 |
24 |
50 |
604 |
22*108 |
30-42 |
5 |
30 |
19 |
|
Y26 |
26 |
47 |
650 |
22(25)*108 |
30-42 |
5 |
27 |
19 |
Products advantages:
1.Y24 &Y20 are intended for dry drilling,YH24 for wet drilling
2.Suitable for either drilling downward or incline of blast holes in medium-hard rock
3.Centrally grouped control,nimble starting,stable running and easy maintenance.
