Quick Details
-
Place of Origin:
-
JIA
-
Brand Name:
-
Leader
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
KG
-
Working Temperature Range:
-
-5 - 600 ℃
-
Heating medium:
-
Air Water Oil
-
Feature:
-
High Efficiency
-
Insulation material:
-
High purity MGO powder
-
Wire Type:
-
Inside or External
-
Product type:
-
High power density /Middle power density
-
Voltages available:
-
12V~410V/Customized
-
Normal wire length:
-
500mm and Customized
-
Certification:
-
ISO ROHS CE
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
12v-415v
-
Place of Origin:
-
JIA
-
Brand Name:
-
Leader
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
KG
-
Working Temperature Range:
-
-5 - 600 ℃
-
Heating medium:
-
Air Water Oil
-
Feature:
-
High Efficiency
-
Insulation material:
-
High purity MGO powder
-
Wire Type:
-
Inside or External
-
Product type:
-
High power density /Middle power density
-
Voltages available:
-
12V~410V/Customized
-
Normal wire length:
-
500mm and Customized
-
Certification:
-
ISO ROHS CE
Product Description
◆ Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(AISI304,321,316,Incoloy800,840)
◆ Usually in tube form,that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
◆ Cartridge heaters are manufactured in two basic forms - High powerdensity and Low and medium power density.
◆ High power density (heating surface power 10~25w/cm²), are widely used to heat Plastic injection moulds, Moulds, Platens and so on
◆ Low and medium power density (heating surface power5~11w/cm²), are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
◆ The high-quality stainless steel sheath provides long-lasting protection, even in the harshest industrial environments. Its max power density can reach up to 40w/cm², and its maximum operating temperature can over 800℃
Cartridge heater m
ain applications:
· Injection moulding - Internal heating of nozzles
· Hot runner systems - Heating of manifolds
· Packaging industry - Heating of cutting bars
· Packaging industry - Heating of hot stamps
· Laboratories - Heating of analytical equipment
· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
· Telecommunications: Deicing, Enclosure Heater
· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
· Food Service: Steamers, Dish Washers,
· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
etc....

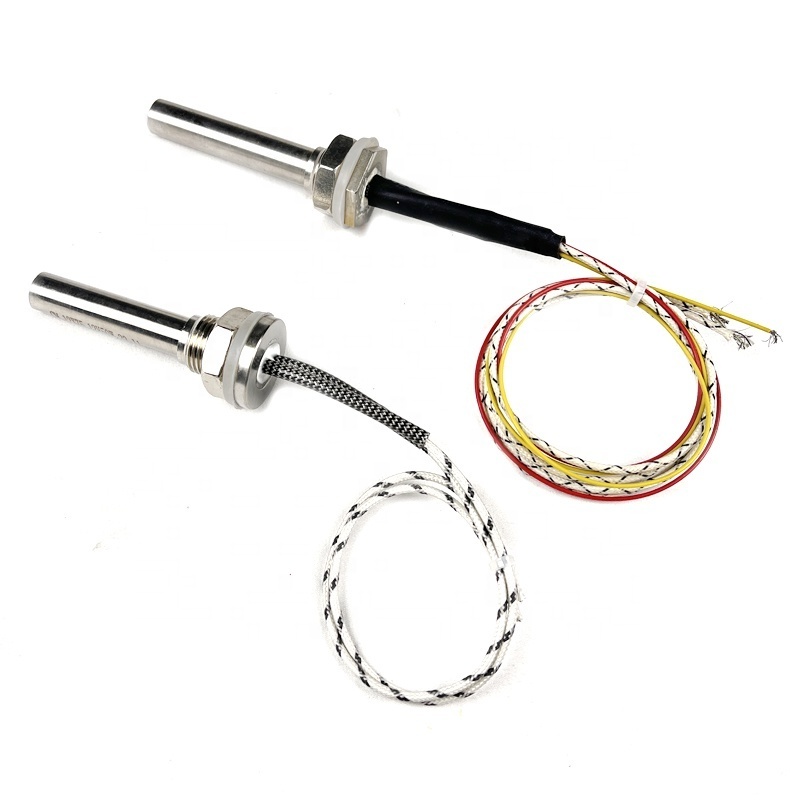

Details Images
Specification
|
Resistance heating wire
|
Cr20Ni80
|
|
Voltages available
|
12V/24V/36V/110V/220V/240V/380V/418V
|
|
Wattage Tolerance
|
±3%
|
|
Resistance tolerance
|
±3%
|
|
Length tolerance
|
± 2% or 3.2mm (1/8”)
|
|
Diameter
|
From 2.0mm to 30mm
|
|
Diameter tolerance
|
+0.05mm -0.1mm (+.002" -.004")
|
|
Thermocouple Location
|
Disc End, Sheath, Center of Heater
|
|
Max operating temp
|
870ºC(1600F)
|
|
Standard Cold Zone
|
5-10mm
|
|
Insulation resistance (cold)
|
≥ 500 MΩ
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA
|
|
Thermocouple Location
|
Disc End, Sheath, Center of Heater
|
|
Thermocouple
|
type J / K
|
When you inquire, please specify the following basic Info:
A. Diameter of Tube
B. Overall length for Cartridge Heaters.
C. Lead type (glass fibre / PTFE) & lead length(Regular 500mm).
D. Fixing method (none, flange, thread) and location of accessories
E. Working voltage, phase line
F. Power(kw)
G. Type of Cartridge Heater (shape, striaght or right angle)
Our Advantages
1.Low MOQ:
1-10 pcs MOQ based on heater type and sizes
2.OEM Accepted: Strong capacity in develop and production under customer drawings
3.Good Service: Instant response, great patience and full consideration
4.Good Quality: With 6S quality control system
5.Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Years cooperation)
