Quick Details
-
Application:
-
flame retardancy, high voltage insulation
-
Product name:
-
Glass fiber ceramic tape
-
Color:
-
White, Orange
-
Working temperature:
-
-40~150
-
Flame retardant rating:
-
V0
-
Thickness:
-
0.3 mm
-
Specific gravity:
-
1.5 g/cm³
-
Dielectric strength:
-
≥30
-
Viscose strength:
-
≥0.5 Mpa
-
Peel strength:
-
≥3 N/cm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dingtai
-
Model Number:
-
DTF1345
-
Application:
-
flame retardancy, high voltage insulation
-
Product name:
-
Glass fiber ceramic tape
-
Color:
-
White, Orange
-
Working temperature:
-
-40~150
-
Flame retardant rating:
-
V0
-
Thickness:
-
0.3 mm
-
Specific gravity:
-
1.5 g/cm³
-
Dielectric strength:
-
≥30
-
Viscose strength:
-
≥0.5 Mpa
-
Peel strength:
-
≥3 N/cm
Products Description

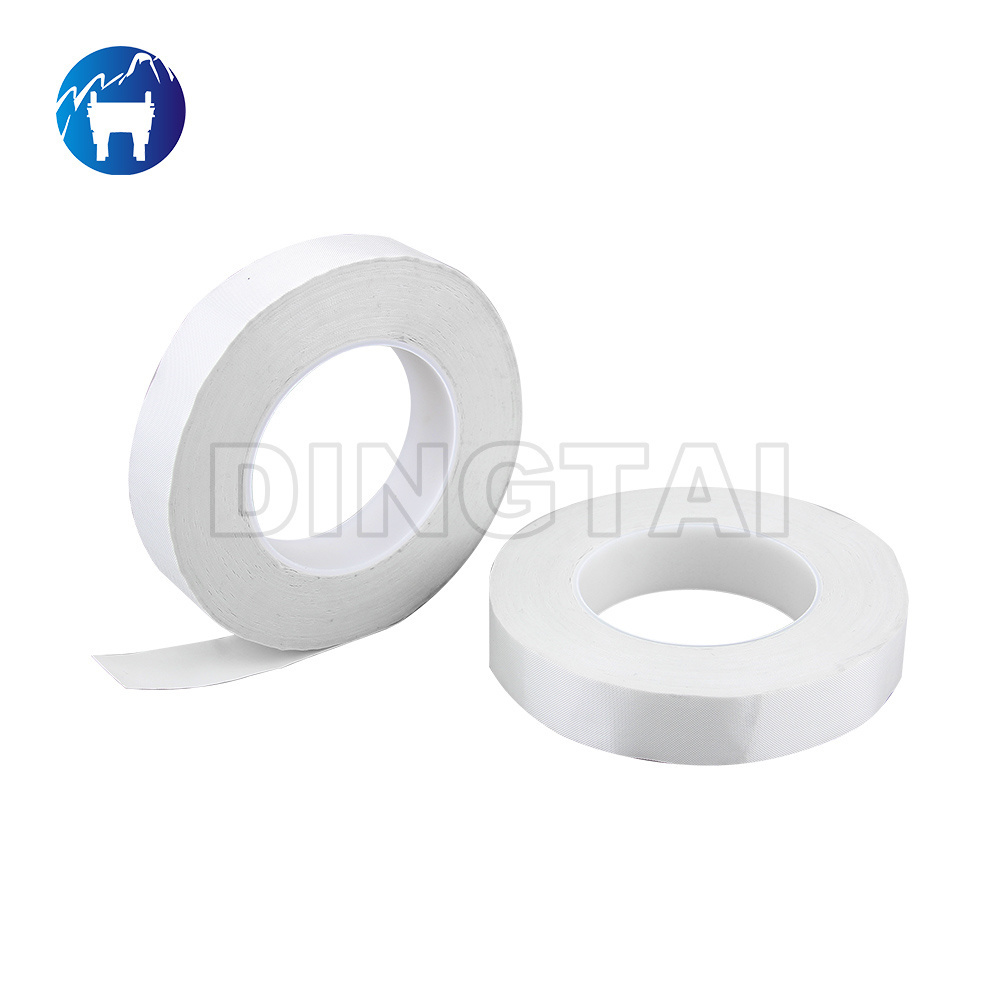

Glass fiber ceramic tape
|
Item
|
Typical value
|
Testing standard
|
|
Color
|
White/Orange
|
Visual inspection
|
|
Thickness (mm)
|
0.3
|
ASTM D3652
|
|
Specific gravity (g/cm³)
|
1.5
|
ASTM D792
|
|
Hardness (Shore 00)
|
60
|
ASTM D2240
|
|
Dielectric strength
|
≥30
|
ASTM D149
|
|
Withstand voltage leakage current2.7kv(mA)
|
<0.01
|
IEC60243
|
|
Viscose strength (Mpa)
|
≥0.5
|
ASTM D1002
|
|
Peel strength (N/cm)
|
≥3
|
GB/T33332
|
|
Insulation resistance (MΏ)
|
>1.0*10¹³
|
IEC60243
|
|
Volume resistivity (Ώ.cm)
|
>1.0*10»¹³
|
ASTM D257
|
|
Flame retardant rating
|
V0
|
UL94
|
|
Working temperature
|
-40~150
|
DingTai TM
|
|
Product description
|
|
|
||
|
DTF1345 is an insulating and flame retardant material made of special glass fiber as substrate and coated with high strength organic silica gel by special process. Compared with other insulating adhesive materials, DTF1345 has good adhesion and aging resistance, and can be used for binding insulation shielding of cables, transformers, motor coils and positive and negative electrodes of power batteries.
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
Product characteristics
|
|
|
||
|
1.Good insulation
2.Good stickability 3.Resistance to humidity and heat, high temperature |
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
Product application
|
|
|
||
|
The product can be used for the insulation shielding of the outer coil of the transformer, the insulation bundling of the motor coil, the flame-retardant and fire-proof bundling of the cable and the bundling insulation shielding of the positive and negative electrodes of the power battery
|
|
|
||
|
Storage environment & shelf life & transportation
|
|
|
||
|
Storage environment: temperature 5~35℃; Humidity 0~65%
Shelf life: 12 months Transport: This product is non-toxic and can be transported as non-dangerous goods |
|
|
||
|
|
|
|
||
|
|
|
|
||
