Quick Details
-
Application:
-
Hole digging
-
Warranty:
-
18 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RAY
-
Model Number:
-
REA2000
-
Name:
-
Auger Drilling Machine
-
Color:
-
Customer's Request
-
Teeth Type:
-
Tungsten/Rock/Sharp teeth
-
Advantages:
-
High Performance
-
Hose:
-
1/2 inch
-
Suitable:
-
excavator/skid steer loader/crane/tractor/backhoe loader
-
Pin hitch:
-
Single Pin Hitch
-
Output Shaft:
-
65Rd/57Sq/2'' hex or others
-
Certification:
-
CE,ISO
Quick Details
-
Type:
-
Hydraulic Auger, Hydraulic
-
Feature:
-
High efficiency
-
Power Source:
-
Excavator/Skid steer loader/crane/backhoe loader
-
Application:
-
Hole digging
-
Warranty:
-
18 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RAY
-
Model Number:
-
REA2000
-
Name:
-
Auger Drilling Machine
-
Color:
-
Customer's Request
-
Teeth Type:
-
Tungsten/Rock/Sharp teeth
-
Advantages:
-
High Performance
-
Hose:
-
1/2 inch
-
Suitable:
-
excavator/skid steer loader/crane/tractor/backhoe loader
-
Pin hitch:
-
Single Pin Hitch
-
Output Shaft:
-
65Rd/57Sq/2'' hex or others
-
Certification:
-
CE,ISO
Product Description

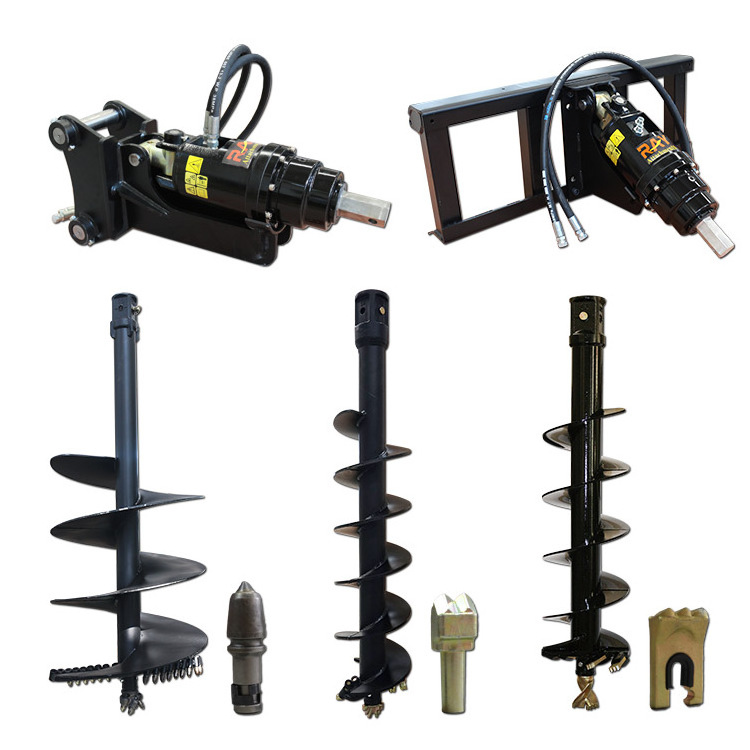

Auger Drives REA2000 up to REA4500 are the perfect choice for small excavators between 1T and 5T.
Even though these model Auger Drives are the smallest in our line-up they are over engineered and built to last, giving you the same versatility, peace of mind and product quality you’d expect from all our products. Developed to work with all makes and models of parent machine, and complemented with a range of attachments, you will find an earth auger and attachment for your every need. With the versatility to easily switch between attachments depending on the job at hand, you can be sure that your RAY Earth Auger will deliver, time and again.
Products Description
·FORGED HOOD EARS
Standard with all Auger Drives in areas that we know will take a lot of strain. All hood pins are locked for extra safety making it impossible for the hood to detach from your hitch
·HIGH QUALITY HYDRAULIC MOTORS
EATON Motor p
rovide stable and high torque power output.
The failure rate is only 0.2%
· EPICYCLIC GEARBOX
Torque is amplified by using the unique planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
·NON-DISLODGEMENT SHAFT
The Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers, a MUST-HAVE FEATURE for any safety conscious company.
· HOSES AND ADAPTORS
All Auger drives come standard with high quality hoses and adaptors (excludes larger units. QRC’s not included).
Specification
|
Model
|
REA2000
|
REA2500
|
REA3000
|
REA3500
|
REA4500
|
|
Adaptive Weight (T)
|
1-2.5
|
1.5-3
|
2-3.5
|
2.5-4.5
|
4.5-7
|
|
Oil Pressure Range (Bar）
|
205
|
205
|
240
|
240
|
240
|
|
Torque Range (N.m)
|
1871
|
2432
|
2877
|
3614
|
4218
|
|
Oil Flow Range (L/min)
|
23-53
|
30-61
|
30-61
|
30-68
|
38-76
|
|
Speed Range (rmp)
|
40-92
|
40-82
|
40-81
|
32-72
|
32-64
|
|
Hub Option
|
65mm round
2'' hex
|
65mm round
2'' hex |
65mm round
2'' hex |
65mm round
2'' hex |
65mm round
2'' hex |
|
Height (mm)
|
595
|
595
|
700
|
700
|
700
|
|
|
Single Pin Hitch
Double Pin Hitch
Cradle Pin Hitch |
Single Pin Hitch
Double Pin Hitch Cradle Pin Hitch |
Single Pin Hitch
Double Pin Hitch Cradle Pin Hitch |
Single Pin Hitch
Double Pin Hitch Cradle Pin Hitch |
Single Pin Hitch
Double Pin Hitch Cradle Pin Hitch |
|
Auger Range
|
S4
|
S4
|
S4
|
S4
|
S4
|
|
Rec. Drilling Diameter Range
|
100-400mm
|
100-500mm
|
100-600mm
|
100-750mm
|
100-900mm
|
Customer Photos
RAY Earth Auger can be mounted on
Excavator, Skid steer loader, Crane, Backhoe loader, Tractor,
Telehandlers.
OEM Service
18 years OEM ＆ ODM experience.
We can provide professional OEM and ODM service, such as customize your own colour, brand, package and so on.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
