Quick Details
-
Voltage:
-
90 KV/130KV
-
Operating Voltage Range:
-
40-90KV/130KV
-
Micro Focus Spot Size:
-
5-15μm
-
Pixel Matrix:
-
1536*1536
-
Field of View:
-
130mm*130mm
-
Resolution:
-
5.8Lp/mm
-
A/D Conversion Bit:
-
16bits
Quick Details
-
Weight (KG):
-
1100
-
Place of Origin:
-
Guangdong, China
-
Type:
-
Sealed Micro-Focus X-Ray Tube
-
Voltage:
-
90 KV/130KV
-
Operating Voltage Range:
-
40-90KV/130KV
-
Micro Focus Spot Size:
-
5-15μm
-
Pixel Matrix:
-
1536*1536
-
Field of View:
-
130mm*130mm
-
Resolution:
-
5.8Lp/mm
-
A/D Conversion Bit:
-
16bits

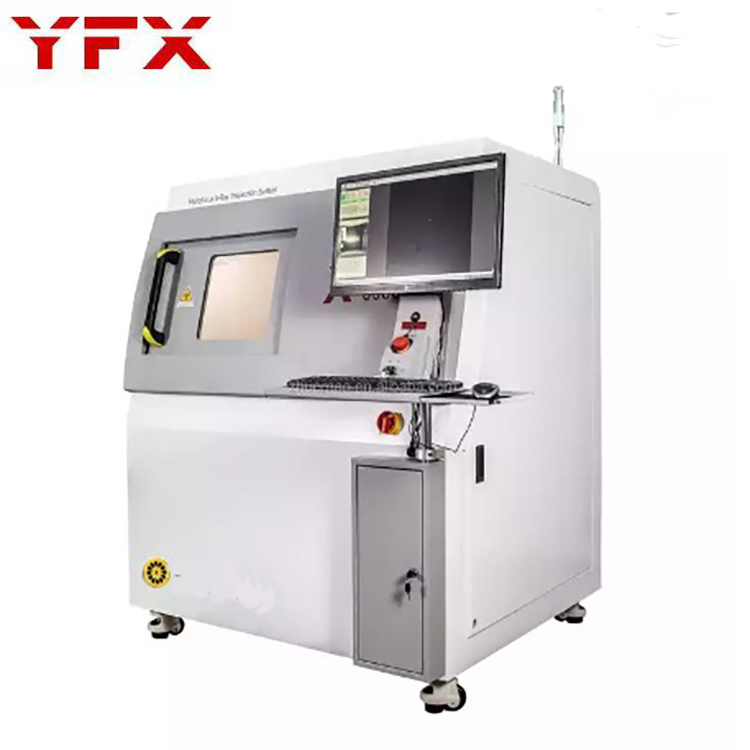

X6600 90KV Universal X Ray BGA Inspection Test Equipment
Applications of X-Ray
X-Ray inspection system is high-precision detection equipment. It inspects and analyzes the inner structure of the object without damage via the penetration power from X-Ray.
It has been widely applied to BGA detection, LED, SMT, semiconductor, battery, automotive electronics, ceramic products, casting, plastic, connectors, 3D image analysis,products and other industries.
Specific application:
-
Meet the needs of the general industrial X-ray machine and have a wide range of applications.
-
A high-resolution design can obtain the best image in a very short time.
-
Infrared automatic navigation and positioning, quickly select the shooting location.
-
CNC detection mode, fast automatic detection for multi-point array.
-
Oblique multi-angle inspection makes it easier to detect sample defects.
-
Software operation developed by is simple and easy to use, low operating cost.
-
The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image more clear and intuitive.
Technical Parameters
|
Items |
|
Contents |
|
Model |
|
X-6600 |
|
X-RAY launch tube |
Tube type |
Closed X-ray tube |
|
Maximum tube voltage |
90kV (130kV Optical) |
|
|
Maximum tube current |
0.12mA |
|
|
Focal size |
5μm |
|
|
Magnification |
Geometric magnification : 150X System magnification : 1000X |
|
|
Detector |
Image speed |
30 fps |
|
Resolution |
1176*1104 |
|
|
Inclined Angle |
60° |
|
|
Cabinet Specifications
|
Table size |
500mm*450mm |
|
Dimension |
Length: 1360mm, width: 1360mm, height: 1650mm |
|
|
Net weight |
1300kg |
|
|
Input voltage |
AC 110-220V ( + 10%) (international standard power supply) |
|
|
X-ray leakage amount |
≤1 u Sv/h |
|
|
Operating system |
Windows 7 Seamark3.0 |
|
|
Total power |
1700W |
|
