Quick Details
-
Place of Origin:
-
China ,henan
-
Brand Name:
-
TXSL
-
Dimension(L*W*H):
-
China henan
-
Weight:
-
260 kg
-
Power:
-
5.5KW
-
Marketing Type:
-
New Product 2022
Quick Details
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
50M
-
Hopper Capacity:
-
115L
-
Place of Origin:
-
China ,henan
-
Brand Name:
-
TXSL
-
Dimension(L*W*H):
-
China henan
-
Weight:
-
260 kg
-
Power:
-
5.5KW
-
Marketing Type:
-
New Product 2022
Product Description

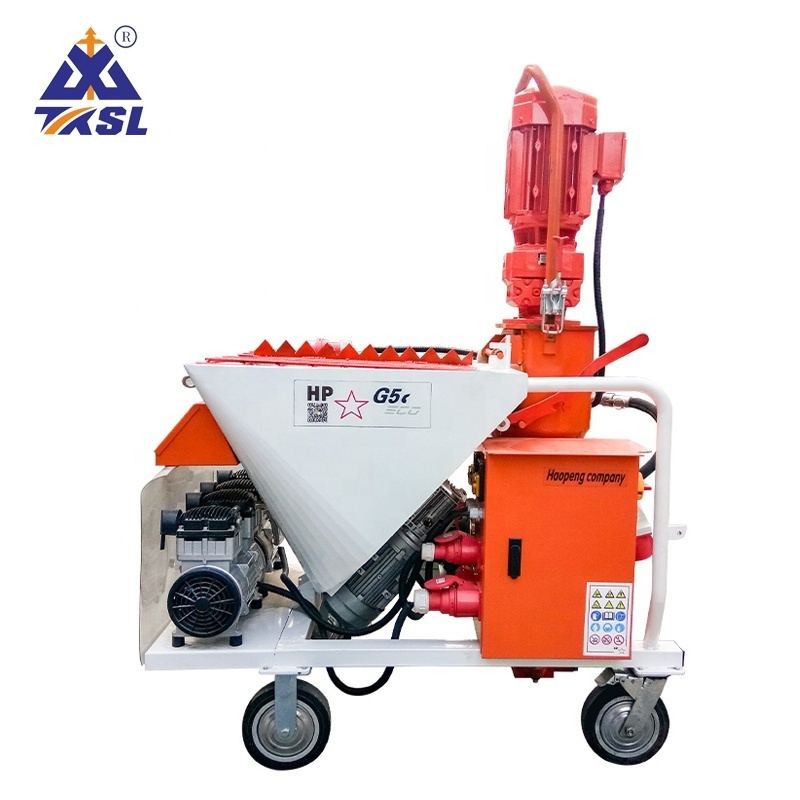

Plaster Spraying Machine
Mainly used for indoor and outdoor spraying, waterproof grouting and waterproof surface spraying, waterproof spraying, grouting, ceiling spraying, wall spraying, paint spraying, garden spraying, embossing effect spraying, handicraft spraying, real stone paint, rockery spraying, sculpture spraying and sound absorption Material spraying and so on.
Product Paramenters
|
Item
|
Parameters
|
|
|
SPT-500
|
|
Work Voltage
|
380V
|
|
Conveying Flow
|
4000L/H
|
|
Motor Power
|
9KW
|
|
Sand Particle Size
|
≦8mm
|
|
Water-cement ratio
|
≥0.3W/C
|
|
Grouting Hose Diameter
|
32mm
|
|
Grouting Pressure
|
3Mpa
|
|
Hopper Volume
|
80L
|
|
Hopper Feeding Height
|
1000mm
|
|
Horizontal Conveying Distance
|
50m
|
|
Vertical Conveying Distance
|
30m
|
|
Machine Dimension
|
1350mm x 800mm x 1700mm
|
|
Net Weight
|
320 KGS
|
