- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
FUYI
-
Dimension(L*W*H):
-
50*60*60cm
-
Weight:
-
135 KG
-
Packing materials:
-
plastic bowls
-
Quantity of trays:
-
1-4
-
Filling material:
-
films
-
Packing speed:
-
300-500pcs/hour
Quick Details
-
Packaging Type:
-
CANS, Bottles, Foil
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
FUYI
-
Dimension(L*W*H):
-
50*60*60cm
-
Weight:
-
135 KG
-
Packing materials:
-
plastic bowls
-
Quantity of trays:
-
1-4
-
Filling material:
-
films
-
Packing speed:
-
300-500pcs/hour
Product Description

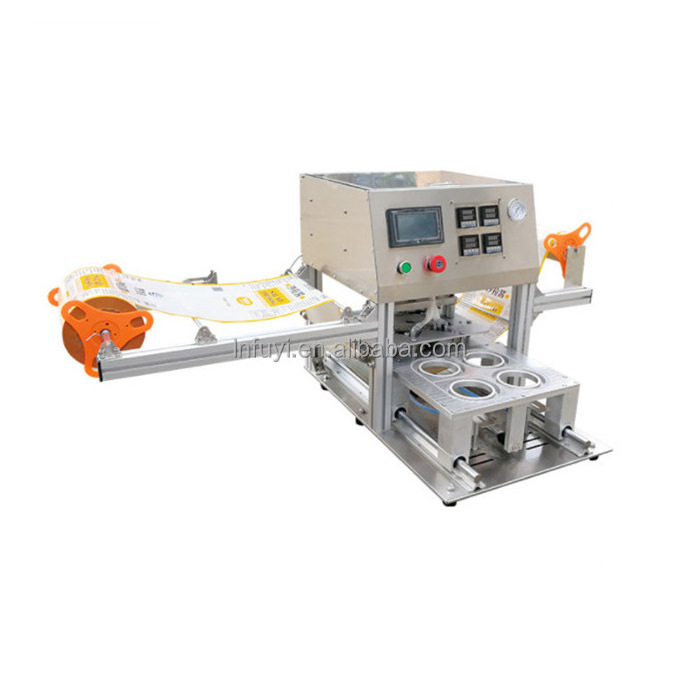

Commercial semi-auto plastic cup film sealer bubble milk tea cup tray sealing machine
Brief introduction:
Desktop automatic coding and sealing machine belongs to automatic plastic tray box sealing equipment, the whole machine is made of stainless steel 304. Simple and reasonable structure, sealing of high efficiency and easy operation; Suitable for various sizes of plastic boxes, plastic trays and special-shaped plastic containers thermal sealing, it widely used in cosmetic and food industries.
Application:
Desktop automatic coding and sealing machine is suitable for tray loaded product sealing package, such as snack box, convenience foods, bean curd tray, biscuit boxes, food tray, toy tray, beverages,nuts,tin can, cakes etc.
Advantage:
1. The whole machine adopts 201 stainless steel and aluminum alloy material, according to requirements of the GMP for food;
2.Adopts pure electric drive with air supply, suitable for small businesses, restaurant, hotel, shop supermarket and canteen management place;
3. Automatic sealing process, saving manpower, improve the sealing quality.
4. Different material, different thickness of a thermal sealing material all can use.
5.can be used with a variety of equipment collocation, such as liquid filling machine, paste filling machine, filling packing
line etc.;
5.can be used with a variety of equipment collocation, such as liquid filling machine, paste filling machine, filling packing
line etc.;
6.
LCD display control the sealing temperature and sealing time, photoelectric sensor film location tracking, after sealing design accuracy;
7. The size of the special specifications can be customized.
7. The size of the special specifications can be customized.
Technical Parameters:
|
Model
|
LD-802B
|
|
Voltage(V)
|
AC110-220V/50-60Hz
|
|
Power(W)
|
1000W
|
|
Cup sealing size(mm)
|
50-250mm as customer's requested
|
|
Sealing material
|
Aluminum foil,PE,PET,PS and etc
|
|
Sealing speed(cups/hour)
|
300-500pcs/h (depends on hand speed)
|
|
Sealing method
|
Automatic pneumatic
|
|
Sealing materials
|
PP,PE,PET,PS and etc.
|
|
Sealing quantity
|
1-4 trays/one time
|
|
Working temperture
|
0-300 ℃
|
|
Coding function
|
Date printer is optional
|
|
Control System
|
PLC Intelligent
|
|
N.W. G.W (kg)
|
135kg/150kg
|
|
Machine size(mm)
|
50*60*60cm (main machine size)
139*97*94cm （wooden case packing )
|
Detailed Images
Handheld supports or customized production line accessories can be configured according to user requirements.
It can automatically mark data, serial number bar code.
Different material, different thickness of a thermal sealing material are all available.
Applicable films:
Notes: the following items are not included, if you need please contact us for customization.
Sealing samples:
Packing&Shipping
Our Company
Liaoning Fuyi Machinery is one of the most famous centrifuge manufacturers in China with 30 years mature experience and techniques. "We also manufacture various filling and packing machines, which are widely used. Nowadays our customers are from global market which give good feedback for our products. We promise supply customers the best quality and service in China.
