Quick Details
-
Power:
-
11kw
-
Dimension(L*W*H):
-
30*16*6m
-
Weight:
-
120 kg
-
Product name:
-
Asphalt Mixing Plant
-
Mixing Type:
-
hot mix
-
Capacity:
-
40t/h
-
Application:
-
Construction Industry
-
Burner:
-
Oil
-
Fuel Consumption:
-
5-7.5 Kg/t
-
Drying drum model:
-
GT 160
-
Rated capacity:
-
40t/h
-
Product description:
-
Nearest Asphalt Plant
-
Item name:
-
Hot Asphalt Batch Mix Plant
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinoroader
-
Voltage:
-
220V
-
Power:
-
11kw
-
Dimension(L*W*H):
-
30*16*6m
-
Weight:
-
120 kg
-
Product name:
-
Asphalt Mixing Plant
-
Mixing Type:
-
hot mix
-
Capacity:
-
40t/h
-
Application:
-
Construction Industry
-
Burner:
-
Oil
-
Fuel Consumption:
-
5-7.5 Kg/t
-
Drying drum model:
-
GT 160
-
Rated capacity:
-
40t/h
-
Product description:
-
Nearest Asphalt Plant
-
Item name:
-
Hot Asphalt Batch Mix Plant
China professional factory 80tph asphalt mixing plant for sale

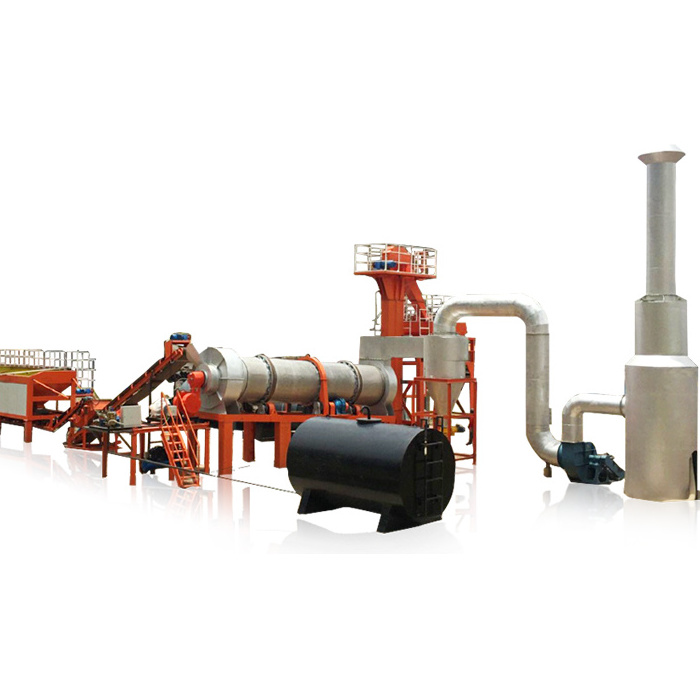

Asphalt drum mix plant is one type of asphalt plant that produces hot mix asphalt in a continuous process. Continuous asphalt mixing plant is low on running cost, maintenance and high on production. With strong agitation performance and quick installation, it is suitable for projects such as highways that require mobile work. Sinoroader offer drum mix asphalt plant for sale in the capacities of 40 tph to 120 tph. it is composed of portable drum mix unit(with integral aggregate system, drum mix unit, knock-out box and wet scrubber), drag conveyor with hopper, bitumen tank and control house. We offer top quality components to our customers with a proven and trusted design which will give maximum up time of the machine.
| D40 | D60 | |||
| Main Parameter | Rated Capacity (t/h) | 40 | 60 | |
| Installation Power | 80kW | 120kW | ||
| Working Noise (dB) | ≤70 | |||
| Voltage | 220V/380V-50Hz (adjustable) | |||
| Raw Material | Aggregate Size (mm) | ≤25 | ||
| Aggregate Gravity (kg/m3) | ≥1600 | |||
| Aggregate Moisture | ≤5% | |||
| Cold Feeder | Cold Bin (m3) | 4m³×3 | 4m³×4 | |
| Feeding Belt Adjustment Mode | Variable Frequency Drive | |||
| Weighing System | Method | Belt Weigher | ||
| Accuracy | ±1% | |||
| Drying System | Mixing Type | Continuous | ||
| Drying & Mixing Drum (mm) | Φ1200X5200 | Φ1500X6500 | ||
| Fuel | Diesel, Heavy Oil, Fuel Oil, Natural Gas, Coal | |||
| Burner consumption | Coal | 10~13kg/h | ||
| Oil | 6~7kg/t | |||
| Gas | 6~7kg/t | |||
| Hot Aggregate Temperature | ≤160℃ | |||
| Hot Asphalt Temperature | 130~165℃ (±5℃) | |||
| Dust Collection System | Avail. Type | Cylone Collector/Volute Casing Collector, Baghouse Dust Collector/Water Scrubber | ||
| Air Emissions | ≤100mg/Nm3 | |||
| Bitumen Supply System | Bitumen Tank (m3) | 1x30 | 1x30 | |
| Heating Method | Electrical Heating/Thermal Oil Heating | |||
| Weighing Method | Flow Weigher | |||
| Weighing Accuracy | ±0.5% | |||
| Control System | Operation Mode | Full Auto/Manual | ||
| Covering Area | L x W (m) | 30x16 | 33x20 | |
