Quick Details
-
Brand Name:
-
SENO
-
Model Number:
-
HRC55 DLC D4X75-3F
-
Product Name:
-
DLC Coating End Mill 3 Flute High Polished Milling Cutter For Aluminum
-
material:
-
tungsten carbide
-
Grain Size:
-
0.6um
-
coating:
-
uncoated
-
color:
-
silver
-
Shape:
-
Flattened
-
Flutes:
-
3F
-
Workpiece Material:
-
aluminum, non-ferrious
-
Application:
-
CNC lathe for milling
-
Service:
-
OEM/ODM
Quick Details
-
Material:
-
Carbide
-
Coating:
-
uncoated
-
Place of Origin:
-
China
-
Brand Name:
-
SENO
-
Model Number:
-
HRC55 DLC D4X75-3F
-
Product Name:
-
DLC Coating End Mill 3 Flute High Polished Milling Cutter For Aluminum
-
material:
-
tungsten carbide
-
Grain Size:
-
0.6um
-
coating:
-
uncoated
-
color:
-
silver
-
Shape:
-
Flattened
-
Flutes:
-
3F
-
Workpiece Material:
-
aluminum, non-ferrious
-
Application:
-
CNC lathe for milling
-
Service:
-
OEM/ODM
Other Hot Products
Products Description

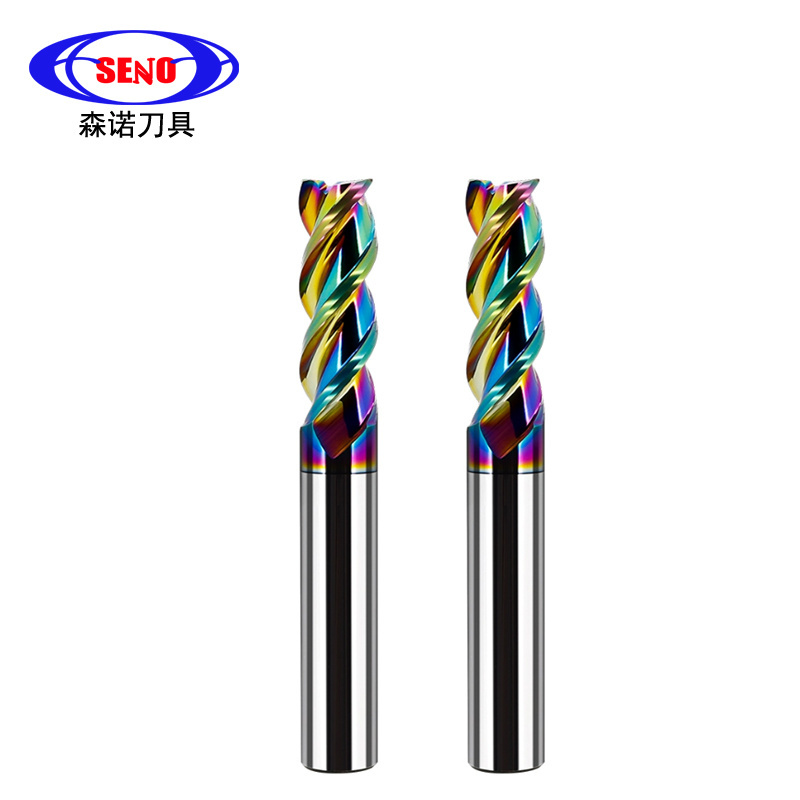

Carbide DLC Coating End Mill 3 Flute High Polished Milling Cutter For Aluminum CNC Machine Tool Router Bit
|
Coating Introduction
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
ENDMILL GRADE
|
Coating Name
|
Color
|
Hv
|
μm
|
Friction
|
The Max ℃
|
||||||
|
HRC45 coating
|
AlTiN
|
black
|
3300
|
1-4
|
0.7
|
850℃
|
||||||
|
HRC55 coating
|
TiSiAlN
|
bronzed
|
3400
|
1-4
|
0.7
|
900℃
|
||||||
|
HRC60 coating
|
AlCrSiN
|
black
|
4000
|
1-7
|
0.35
|
1100℃
|
||||||
|
HRC65 coating
|
nACo 3 Blue
|
blue
|
4500
|
1-7
|
0.45
|
1200℃
|
||||||
|
Stainless Steel coating
|
nACo 3 Gold
|
golden
|
4500
|
1-7
|
0.55
|
1200℃
|
||||||
|
Carbide Material Introduction
|
|
|
|
|
|
|
||||||
|
ENDMILL GRADE
|
Material Grade
|
Grain
|
Introduction
|
|
|
Application
|
||||||
|
HRC45 carbide material
|
YL10.2
|
0.6μm
|
YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.
|
|
|
Suitable for General Steel
|
||||||
|
HRC55 carbide material
|
K30
|
0.5μm
|
K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.
|
|
|
General Steel, Stainless Steel, cast iron
|
||||||
|
HRC60 carbide material
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
|
|
High Hard Material, steel, cast iron, etc
|
||||||
|
HRC65 carbide material
|
GU25UF
|
0.4μm
|
GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard
cutting. |
|
|
Titanium Alloy, High-temperature Alloy, Harden material, etc
|
||||||
|
Stainless Steel material
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
|
|
stainless steel
|
||||||
