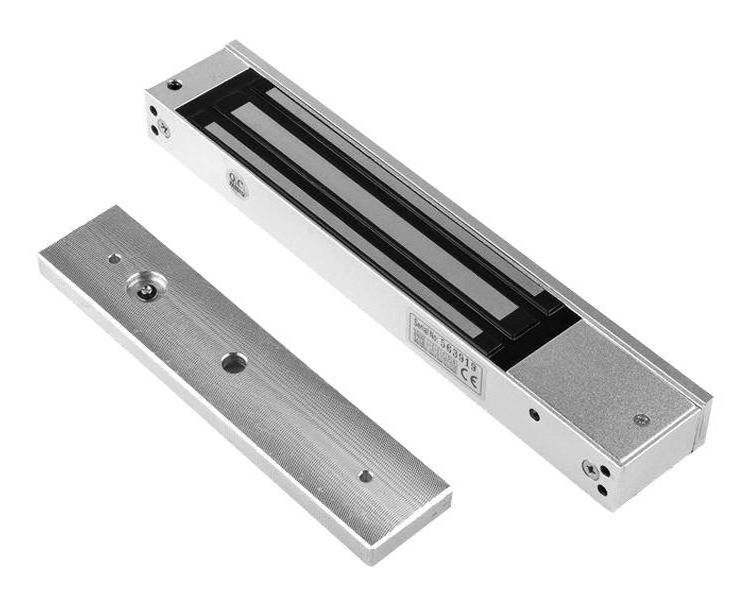

Quick Details
-
Product name::
-
ACM-Y280-7Bolts
-
Keywords:
-
glass door magnetic lock/magnetic lock/Electromagnetic Lock
-
Holding Force::
-
280kg/1200lbs
-
Certification::
-
CE/MA
-
Lock Size: Magnet( LxWx H):
-
250*47*25mm
-
Armature plate:
-
250Lx47Lx25Wx11H(mm)
-
Voltage::
-
12/24VDC
-
Lock Status::
-
NO/NC
-
Feature::
-
Timer delay, feedback signal, 12V/24V dual voltage
-
Weight::
-
2.0kgs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
ACM-Y280
-
Product name::
-
ACM-Y280-7Bolts
-
Keywords:
-
glass door magnetic lock/magnetic lock/Electromagnetic Lock
-
Holding Force::
-
280kg/1200lbs
-
Certification::
-
CE/MA
-
Lock Size: Magnet( LxWx H):
-
250*47*25mm
-
Armature plate:
-
250Lx47Lx25Wx11H(mm)
-
Voltage::
-
12/24VDC
-
Lock Status::
-
NO/NC
-
Feature::
-
Timer delay, feedback signal, 12V/24V dual voltage
-
Weight::
-
2.0kgs
|
Hot Selling
|
|
|
|
|||
|
Model No.
|
Description
|
Parameters
|
Packing
|
|||
|
ACM-Y180
|
• Surface mounte
• 2 Wires: Power (+/-) |
• Holding force: 300lbs / 180kg • Voltage/Current: 12V/300mA
• Size: 168x39x22mm |
pp bag stardard white inner box Caton:25×22.5×18cm/12pcs 1 kg/pc
|
|||
|
ACM-Y180S
|
• Surface mounte
• With feedback (NO/NC) • 4 Wires: +/-/NO/NC |
|
|
|||
|
ACM-Y280
|
• Surface mounted • With LED
• 2 Wires: Power (+/-) |
• Holding force: 600lbs / 280kg
• Voltage/Current: 12V/380mA • Size: 250X47X25mm |
pp bag stardard white inner box Caton:28×26×19cm /12pcs 2 kg/pc
|
|||
|
ACM-Y280S
|
• Surface mounted • With LED
• 5 Wires: Power (+/-)NO/NC/COM |
|
|
|||
|
ACM-Y500
|
• Surface mounted • With LED
• 2 Wires: Power (+/-) |
• Holding force: 1200lbs / 500kg • Voltage/Current: 12V/460mA
• Size: 250x53x27mm |
pp bag stardard white inner box Caton:38X30X18cm/6pcs 4.5kg/pc
|
|||
|
ACM-Y60 Mini
|
• Suitable for cabinets
|
• Holding force: 130lbs / 60kg • Voltage/Current: 12V/300mA
• Size: 80X38X25mm |
pp bag stardard inner box Caton:44X20X24 cm/50pcs 0.6kg/pc
|
|||
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Lock Size :
|
250x47x25mm
|
|
|
||
|
Armature plate:
|
190Lx190Lx45Wx11H(mm)
|
|
|
||
|
Holding Force :
|
280kg (600Lbs)
|
|
|
||
|
Input Voltage :
|
12/24VDC Dual Voltage
|
|
|
||
|
Suitable for door:
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
|
||
|
Singal Output :
|
Lock singal Status NO/NC/COM/+/-
|
|
|
||
|
Feature:
|
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
|
|
|
||
|
LED:
|
Red shows unlocked, Green shows locked
|
|
|
||
|
Weight:
|
5.0kgs
|
|
|
||
|
Certification:
|
CE /MA
|
|
|
||
Our lock is with LED light to show the working statue , light is
green when it locked , Red when unlocked
. The light statue can be changed .
ACM-Y500 is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .
- Collinear Load Test 500kg, 1000pounds.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when Finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material,Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force,Dual Insulative Housing.
- CE Certificate by European Union,MA Certificate by China Public Security Office
Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
