Quick Details
-
Power:
-
3000
-
Weight:
-
600
-
Dimension(L*W*H):
-
1350*990*750mm
-
Drum diamater:
-
600mm
-
Drum volume:
-
45L
-
Drum limit:
-
80KG
-
Drum speed:
-
1450r/min
-
Separation factor:
-
755w2r/g
-
Specification:
-
honey filter centrifuge
-
Various models:
-
SS300/SS450/SS600/SS800/SS1000
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPER
-
Voltage:
-
380v/220v/400v
-
Power:
-
3000
-
Weight:
-
600
-
Dimension(L*W*H):
-
1350*990*750mm
-
Drum diamater:
-
600mm
-
Drum volume:
-
45L
-
Drum limit:
-
80KG
-
Drum speed:
-
1450r/min
-
Separation factor:
-
755w2r/g
-
Specification:
-
honey filter centrifuge
-
Various models:
-
SS300/SS450/SS600/SS800/SS1000
Food industry honey wax separator, hot sale honey filter centrifuge machine
because the bottom of the support legs for the three feet, arranged in a triangle with equal portions named. This honey filter centrifuge is a three-column solid-liquid separation equipment, mainly in the solid- liquid separation to remove liquids or solids separate.
Tripod is the most versatile centrifuge, starting from the first centrifuges, used in all walks of life, has yao still popular worldwide, and its low cost, resistance to shock, simple structure, easy to operate.
As the general three-foot low speed centrifuge device, separation accuracy is not high, we usually draw it as a coarse type equipment regulations for the handling of large amount of solid, clear liquid clarity less demand.
honey filter centrifuge wayof separator—filtering:
Filtering : There is holes in the rolling drums .Its widely used for some conditions ,such as less viscosity ,solid big granular ( crystalline ) ,mostly used to dewater .
honey filter centrifuge working principle:
The mixed honey and wax from the top to join the drum under the action of the centrifugal force field, the honey spreads through the wall of the drum filter into the filter body floor chassis, a liquid outlet from the discharge, and solid materials wax retained in the drum, removable by hand from the top of the centrifuge from the electrical control, two-speed motor. Can automatically complete a work cycle. That is, start a slow start a high-speed running an electric brake. Can also be used with inverter.
honey filter centrifuge main technical parameters
|
Model |
Rotary drum |
Separation factor |
Motor power |
Total weight |
Overal dimension |
|||
|
Diameter |
Working volume |
Loading limit |
Rotary speed |
ω 2 r/g |
KW |
KG |
MM |
|
|
MM |
L |
KG |
r/min |
|||||
|
SS300 |
300 |
8 |
10 |
1900 |
819 |
0.75 |
130 |
800x620x500 |
|
SS450 |
450 |
20 |
25 |
1600 |
725 |
1.5 |
200 |
980x720x625 |
|
SS600 |
600 |
45 |
80 |
1450 |
755 |
3 |
600 |
1350x990x750 |
|
SS800 |
800 |
98 |
135 |
1200 |
640 |
5.5 |
1300 |
1740x1380x1000 |
|
SS1000 |
1000 |
140 |
195 |
1000 |
560 |
7.5 |
1500 |
1950x1560x1050 |
|
SS1200 |
1200 |
200 |
280 |
800 |
430 |
1.5/11 |
2030 |
2370x1600x1000 |
|
SS1500 |
1500 |
360 |
400 |
650 |
304 |
15 |
4060 |
3640X1850X1100 |
honey filter centrifuge widely application.
1. Chemical industry: gypsum, ammonium sulphate, glauber's salt, copper, nickel sulfate, ferric sulfate, sulfur acid, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, pigments, plastic raw materials, soap, grease, various types of resins and other chemical products.
2. The food industry: salt, MSG, food additives, chemical seasoning, starch, sugar. honey.
3. Pharmaceutical: vitamins, antibiotics and other kinds of drugs, herbicides, insect repellents, etc.
4. Mining and metallurgy, copper, zinc, aluminium, mineral and metal refining, etc.
5. Environmental protection: PaiSuan gypsum, water purifying sludge and sewage sludge treatment.

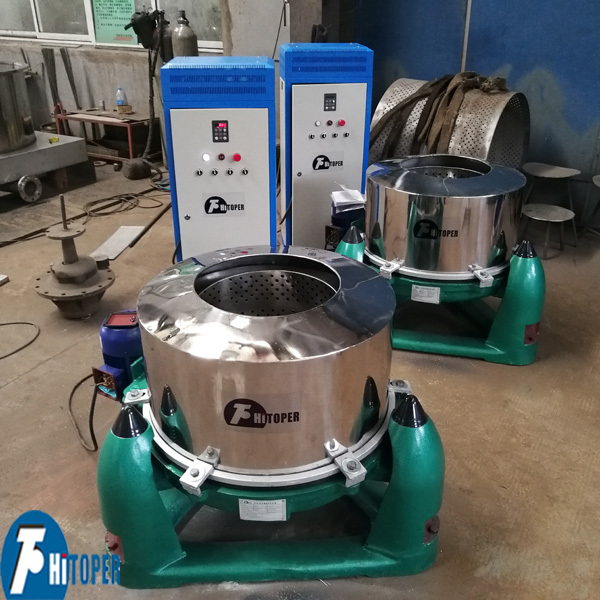

honey filter centrifuge model SS600 with control cabinet detailed pictures.
Honey filter centrifuge Export wooden package as below:
