Quick Details
-
Power Metering Function:
-
Yes, energy power meter monitor
-
Input Voltage:
-
AC100-277V
-
Output Voltage:
-
AC100-277V
-
Current:
-
Max 10A
-
IP Rate:
-
IP65 waterproof
-
Wireless Technology:
-
ZigBee
-
Wireless Frequency:
-
2.4GHz
-
Transmission Distance:
-
200m
-
Operation temperature:
-
-40°C to 85°C
Quick Details
-
Type:
-
Remote Control
-
Max. Load Power:
-
1000W
-
Product Name:
-
wireless lighting remote control outdoor led garden lights
-
Power Metering Function:
-
Yes, energy power meter monitor
-
Input Voltage:
-
AC100-277V
-
Output Voltage:
-
AC100-277V
-
Current:
-
Max 10A
-
IP Rate:
-
IP65 waterproof
-
Wireless Technology:
-
ZigBee
-
Wireless Frequency:
-
2.4GHz
-
Transmission Distance:
-
200m
-
Operation temperature:
-
-40°C to 85°C

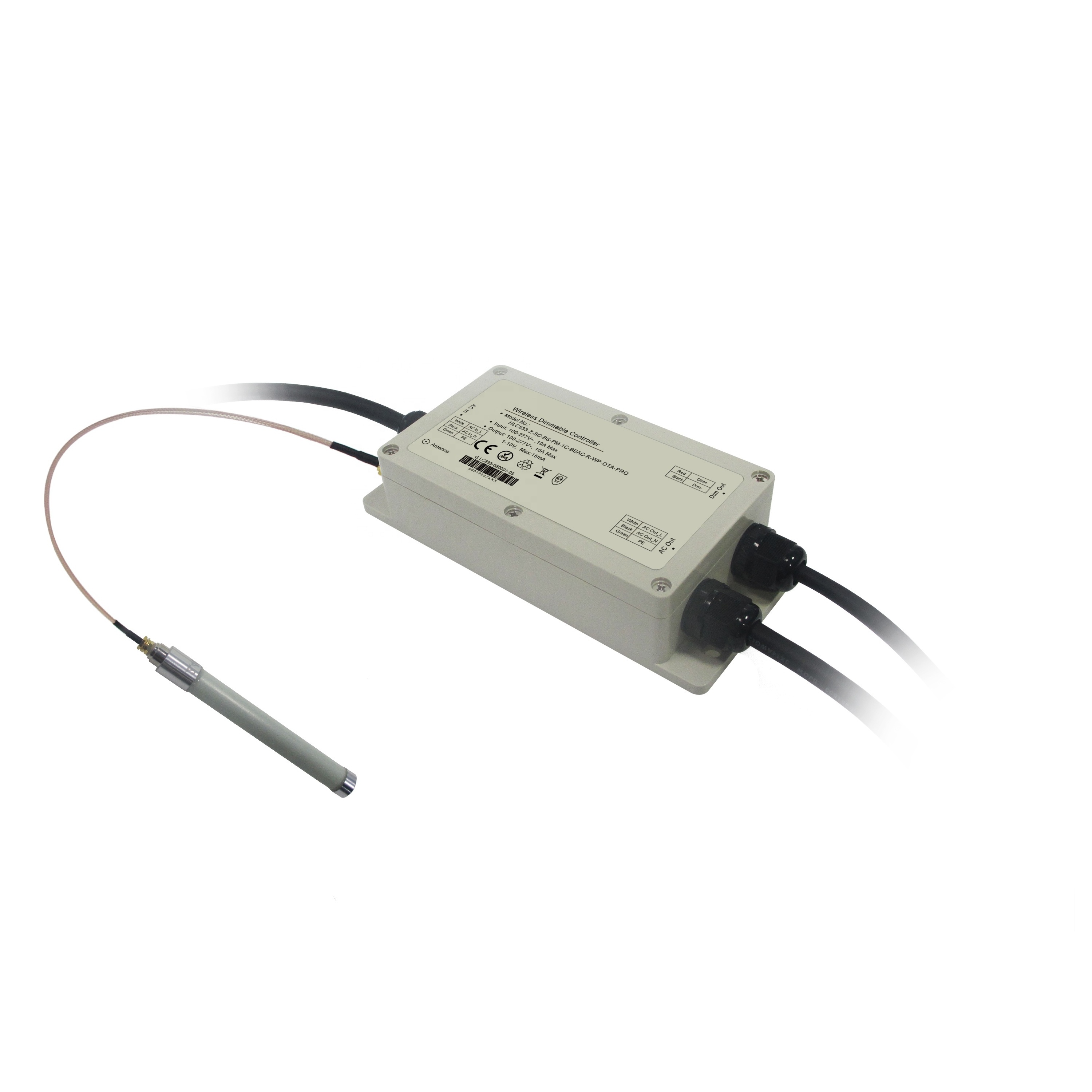

100meter IP65 1-10V energy saving smart wireless lighting remote control outdoor led garden lights
|
Interface Definition |
|
Comment |
|
AC Input |
L |
AC100 – 277V |
|
N |
AC100 – 277V |
|
|
E |
AC100 – 277V |
|
|
AC output |
L |
AC100 – 277V |
|
N |
AC100 – 277V |
|
|
E |
AC100 – 277V |
|
|
Dim output |
DIM+ |
0-10V |
|
DIM- |
0-10V |
1. Initial states. Lights will flick for 4 times and then keep on when first AC power on the ZigBee controller.
2. First 30 minutes. ZigBee controller in initial states will be searched by ZigBee gateway in the first 30 minutes after powered up.
3. Add device. AC power on ZigBee gateway, open the App iLightsIn Pro and login. Click “Add Device” in “Setting” page, select the gateway and “Search” the ZigBee controller. It will be added into the gateway automatically when it is searched. Name it and save.
4. Create new area and add this ZigBee controller into this area. On/off /dim this controller in this area.
5.Binding. Click “Binding Setting” on “Setting” page. Bind the ZigBee controller with motion sensor/ daylight sensor/ wall dimming switch/ handheld remote.
6. More operating details find on “HGW735 User Manual”.
1. Soft reset: delete the ZigBee controller on the “iLightsIn Pro” App when it’s powered on.
2. Hard reset: Power on < 3 secs, power off > 2 secs. Repeat 4 times.
3. Lights will flick 4 times and then keep on if reset successfully.
4. Data will be cleaned up if reset successfully.
|
AHLC833-Z-SC-BS-PM-XX-XX-R-WP-OTA-PRO |
|||
|
Input power |
AC100-277V 50/60Hz |
||
|
Output voltage |
AC100-277V 50/60Hz 1-10V |
||
|
0-10V max output current |
Max 15mA |
||
|
Channels |
1 Channel |
2 Channels |
3 Channels |
|
Relay max exchange current |
10A |
10A+5A |
10A+5A+5A |
|
Standby power |
3.2W |
3.5W |
3.8W |
|
PF |
> 0.4 (MAX Load) |
||
|
Wireless frequency |
2.4GHz |
||
|
Antenna |
Internal antenna/ External antenna |
||
|
Transmission distance |
20-30M |
||
|
Power metering |
YES |
||
|
IP rate |
IP65 waterproof |
||
|
Operation temperature |
-40°C to 85°C |
||
|
Cable size (diameter) |
9mm |
||
|
Power supply |
0-10V/ 1-10V LED dimmable driver (IP65) |
||
Size: 195mmx90mmx46mm
Weight:
993g/ pc
Package:
2pc/ package
iLightsIn Pro Product List:
Zigbee-Ethernet Gateway: AHGW735
Controller
IP20 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC610-Z-SC-XX-XX-XX-PRO
IP65 ZigBee Round 0-10V/ 1-10V/ PWM Dimming Controller: AHLC734-Z-SC-A-XX-PRO
IP65 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC612-Z-SC-A-PRO
Zigbee 12VDC 0-10V Dimming Controller: AHLC606-Z-PRO
ZigBee Triac Dimming Controller: AHLC721-Z-PRO
ZigBee 3 Channel On Off Controller: AHLC614-Z-PRO
ZigBee 12V/ 24V RGBCW/ RGBW/ RGB/ CCT/ Dimming Controller: AHLC502-Z-PRO
Zigbee Single Phase 2-Wire Din Rail Circuit Breaker: AHCB818-Z-PRO
Driver
ZigBee 80W Dimming/ CCT Linear Driver with Power Metering: AHLD816-Z-XX-PRO
ZigBee 40W Dimming/ CCT Linear Driver with Power Metering: AHLD817-Z-XX-PRO
ZigBee 40W Dimming/ CCT Driver: AHLD503-Z-XX-PA-T-PRO
ZigBee 25W Dimming/ CCT Driver: AHLD719-Z-XX-PA-XX-PRO
ZigBee 15W Dimming/ CCT/ RGB/ RGBW/ RGBCW Driver: AHLD728-Z-XX-PRO
ZigBee 13W Dimming/ CCT Driver: AHLD812-Z-XX-PA-PRO
Sensor
ZigBee Standalone AC100V-277V/ DC12V IP65 Daylight Sensor: AHDS611-Z-PRO
ZigBee Round Standalone AC100V-277V IP65 Daylight Sensor: AHDS826-Z-PRO
ZigBee Round Standalone AC100V-277V IP65 CCT Daylight Sensor: AHDS826-Z-CT-PRO
ZigBee Standalone AC100V-277V IP65 15M Motion Sensor: AHMS823
Wired DC5V IP20/ IP65 15M Motion Sensor: AHMS810/ AHMS810-P
Wired DC5V IP20 15M Motion Sensor: AHMS616
Wired DC5V IP20 8M Motion sensor: AHMS808
Switch/ Remote control
ZigBee HA1.2 EU/ US 6-Scene Touch Switch: AHTP501-Z-6S-PRO/ AHTP601-Z-6S-PRO
ZigBee HA1.2 EU Dimming/ CCT Touch Switch: AHTP501-Z-XX-PRO/ AHTP501-ZM-XX-PRO
ZigBee HA1.2 US Dimming/ CCT Touch Switch: AHTP601-Z-XX-PRO/ AHTP601-ZM-XX-PRO
ZigBee HA1.2 EU 1/ 2/ 3-Channel On Off Touch Switch: AHTP501-Z-1/ 2/ 3S-PRO
ZigBee HA1.2 US 1/ 2/ 3-Channel On Off Touch Switch: AHTP601-Z-1/ 2/ 3S-PRO
ZigBee HA1.2 4-Channel Dimming/ CCT Remote Control: AHRC811-Z-PRO
Bridge
ZigBee 0-10V/ RS232/ Dali/ Dry contract/ L/N Detect Bridge: AHBG806-Z-PRO
ZigBee DC5V RGB Lights Music Dancing Audio Bridge: AHBG813-Z-PRO
