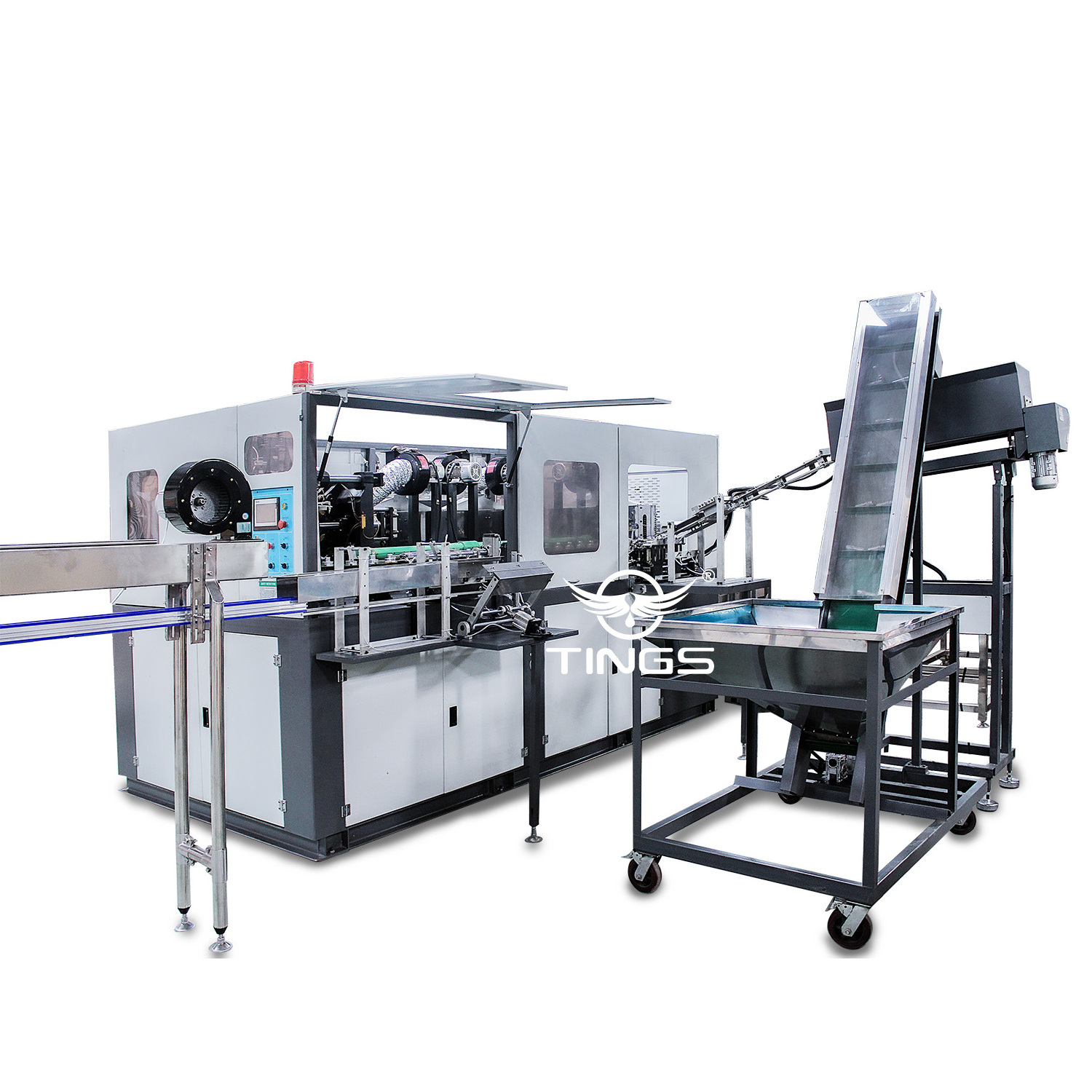

The Automatic PET bottle blowing machine is suitable for the production of 0.1L-2L plastic containers and round and square bottles.Fully automatic blow molding machine, freeing hands all the time, automatically adding preforms, automatic molding.
PLC controller, easy to operate, make different molds according to different customer products, and produce suitable products.The whole Automatic PET bottle blowing machine adopts SS304 material, and the thickness is higher than that of the same industry machine. More efficient.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tings
-
Year:
-
2023
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
3600x2130x2030MM
-
Clamping Force (kN):
-
400KN
-
Power (kW):
-
68
-
Weight (KG):
-
3800 KG
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
Product name:
-
PET Blow Molding Machine
-
Bottle material:
-
PET Material
-
Cavity:
-
4-cavity
-
Material:
-
Stainless Steel
-
Customer's requipment:
-
Customized Designed
-
Free Service:
-
Bottle Drawing
-
Advantages:
-
High Efficiency
-
Machine type:
-
Bottle Plastic Making Machine
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
68 mm
-
Max.Bottle Height(mm):
-
230 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tings
-
Year:
-
2023
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
3600x2130x2030MM
-
Clamping Force (kN):
-
400KN
-
Power (kW):
-
68
-
Weight (KG):
-
3800 KG
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
Product name:
-
PET Blow Molding Machine
-
Bottle material:
-
PET Material
-
Cavity:
-
4-cavity
-
Material:
-
Stainless Steel
-
Customer's requipment:
-
Customized Designed
-
Free Service:
-
Bottle Drawing
-
Advantages:
-
High Efficiency
-
Machine type:
-
Bottle Plastic Making Machine
Products Description
Full Automatic
Preform Stretch Blow Molding Plastic
Bottle Making Machine
|
Model
|
TS-A4
|
|
Cavity
|
4
|
|
Bottle Siza
|
200-2000ML
|
|
Capacity（bottles per hour）
|
3000-4000BPH
|
|
Voltage
|
380V/50Hz
|
|
Weight
|
7.5 TON
|
|
HP air compressor
|
3.0-4.0MPA
|
|
Main machine(L×W×H)
|
3600mm×2000mm×2030mm
|
|
Power
|
Design：49KW Really use：14KW
|
Product description
(1）Preform feeding system: Adopt single-channel feeding, servo subdividing, fast and accurate, effectively solve the problem of wear between card embryos and bottle embryos.
(2)Revolution system: It adopts a special chain and is driven by a servo motor to make the heating unit move smoothly, with fast positioning and low noise.
(3)Heating system: heating and conveying in the mode of rotary blow molding machine can reduce energy consumption and greatly improve the speed and quality of heating.
(4)Mold system: high-pressure mold clamping technology is adopted, no mold expansion phenomenon, and the mold clamping line is thin. The mold adopts a drawer structure, and is positioned with four fixed tie rods on the mold back panel, which can be easily replaced within half an hour.
(5)Stretch-blow system: The cycle time of the first blow and the second blow can be adjusted. According to the customer's different tube blanks and different bottle types, each pull rod can be adjusted individually, with high flexibility.
(6)Electronic control system: Pneumatic and electrical components are of international well-known brands. The touch screen control system is easy to operate, has perfect monitoring and induction settings, has fault diagnosis functions, and automatically calculates report functions to master the production efficiency of each shift.
(7)Cooling/chilled water circulation system: There is a cooling water channel under the heating box. When the preform is heated, the cooling water channel is used to block the heat of the lamp tube and protect the teeth from deformation. Chilled water leads to the mold, which cools the mold quickly and improves the production efficiency of the whole machine.
FAQ
HOW TO FIND TINGS?
● Search Jiangmen Tings Drinking Water Equipment Co., Ltd. on Alibaba, remember to choose manufacturer, not trader
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
CAN I VISIT YOUR FACTORY?
●
Welcome to visit our factory anytime.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
TELL ME HOW YOUR FACTORY CONTROL THE QUALITY?
● We use high accuracy processing equipment for production, and we are experienced in making our machine for over 20 years.
● Each component before assembly needs will be strictly test by our professional QC.
● Each component before assembly needs will be strictly test by our professional QC.
HOW ABOUT YOUR AFTER-SALES SERVICE?
● We will debug all machines after production. Then we will send our customer pictures or videos of the testing for all machines.
● we will pack all machines by standard export package for long-distance shipment.
● we will pack all machines by standard export package for long-distance shipment.
●
According to the customer's request, we can arrange to send our engineers to customers' factory to do the installation and training.
● Our
after-sales team are formed by our
engineers, sales managers and after-sales service manage, who will follow our customers' project.
