Quick Details
-
Place of Origin:
-
Guangdong, China
-
SIP accounts:
-
up to 16
-
Lines:
-
16
-
720p 30fps HD video:
-
3 way
-
audio conferencing:
-
7 way
Quick Details
-
Type:
-
Video Phone
-
Brand Name:
-
Grandstream
-
Model Number:
-
GXV3370
-
Place of Origin:
-
Guangdong, China
-
SIP accounts:
-
up to 16
-
Lines:
-
16
-
720p 30fps HD video:
-
3 way
-
audio conferencing:
-
7 way
Product Description
Integrated Video Communications Solution
GXV3370
IP Video Phone for AndroidTM

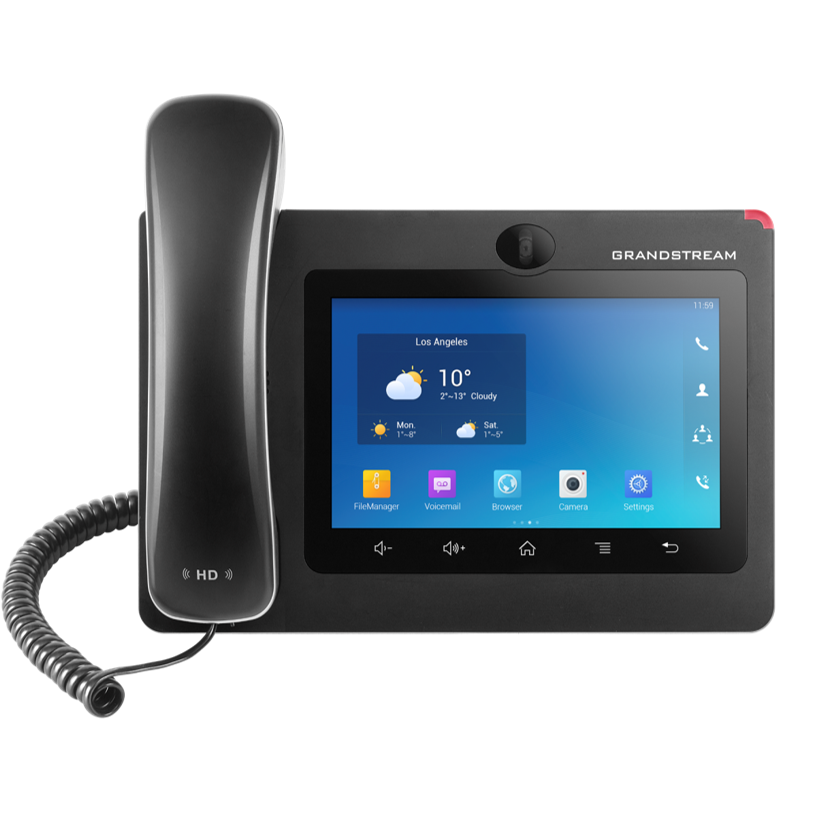

The GXV3370 is a powerful desktop video phone for enterprise users. It features a 7” touch screen,
advanced megapixel camera for HD video conferencing, built-in WiFi and Bluetooth, Gigabit network speeds
and innovative telephony functionalities. It also runs on Android 7.0 and has flexible SDK support for
custom apps. The GXV3370 is fully interoperable with nearly all major SIP platforms on the market and can
be seamlessly integrated with Grandstream’s portfolio including SIP based security cameras, door systems,
IP PBXs, and video conferencing systems and services. This video phone is the perfect choice for users
looking for an integrated video communications solution for their desktop
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP,
IPv6, OpenVPN®
Network Interfaces Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
Graphic Display 7" 1024×600 capacitive touch screen (5 points) TFT LCD
Camera Tiltable mega-pixel CMOS camera with privacy shutter, 720p 30fps
Bluetooth Yes, integrated Bluetooth 4.0 + EDR
WiFi Yes, dual-band 802.11a/b/g/n (2.4GHz & 5GHz)
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD,
HDMI-out (1.4 up to 720p 30fps)
Feature Keys 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and
BACK
Voice Codecs and Capabilities G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Codecs and Capabilities
H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to
2Mbps, 3-way video conference (720p 30fps), anti-flickering, auto focus and auto
exposure
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 7-way audio
conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance
(BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 1000 items), call record(local
and server), call log (up to 1000 records), call waiting, auto answer, XML customization of
screen, flexible dial plan, hot desking, personalized music ringtones and music on hold,
server redundancy & fail-over
Sample Applications
Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock,
Recorder, GS Market, etc.
Supports third-party Android apps such as Microsoft Teams
API/SDK available for advanced custom application development
Applications Deployment Android 7.0 compliant applications to be developed, downloaded and run on the device
with provisioning control
HD Audio Yes, HD handset and speakerphone with support for wideband audio
Base Stand Yes, built-in stand with multiple adjustable angles. Wall mountable.
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-
bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Polish, Hebrew, Dutch, Turkish, Swedish, Ukrainian,
Arabic, Chinese, Korean, Japanese and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning
using TR-069, AES encrypted XML configuration file, or Grandstream Device Management
System (GDMS)
Power & Green Energy Efficiency
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A
Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*USB enabled only when power supply or PoE+ is used.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10°C to 60°C,
Humidity: 10% to 90% Non-condensing
Package Content GXV3370 phone, handset with cord, universal power supply, network cable, screen clea
ning cloth, quick installation guide, GPL license, wall mount bracket
Compliance
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter); Part68 (HAC)
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
EAC
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP,
IPv6, OpenVPN®
Network Interfaces Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
Graphic Display 7" 1024×600 capacitive touch screen (5 points) TFT LCD
Camera Tiltable mega-pixel CMOS camera with privacy shutter, 720p 30fps
Bluetooth Yes, integrated Bluetooth 4.0 + EDR
WiFi Yes, dual-band 802.11a/b/g/n (2.4GHz & 5GHz)
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD,
HDMI-out (1.4 up to 720p 30fps)
Feature Keys 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and
BACK
Voice Codecs and Capabilities G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Codecs and Capabilities
H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to
2Mbps, 3-way video conference (720p 30fps), anti-flickering, auto focus and auto
exposure
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 7-way audio
conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance
(BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 1000 items), call record(local
and server), call log (up to 1000 records), call waiting, auto answer, XML customization of
screen, flexible dial plan, hot desking, personalized music ringtones and music on hold,
server redundancy & fail-over
Sample Applications
Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock,
Recorder, GS Market, etc.
Supports third-party Android apps such as Microsoft Teams
API/SDK available for advanced custom application development
Applications Deployment Android 7.0 compliant applications to be developed, downloaded and run on the device
with provisioning control
HD Audio Yes, HD handset and speakerphone with support for wideband audio
Base Stand Yes, built-in stand with multiple adjustable angles. Wall mountable.
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-
bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Polish, Hebrew, Dutch, Turkish, Swedish, Ukrainian,
Arabic, Chinese, Korean, Japanese and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning
using TR-069, AES encrypted XML configuration file, or Grandstream Device Management
System (GDMS)
Power & Green Energy Efficiency
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A
Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*USB enabled only when power supply or PoE+ is used.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10°C to 60°C,
Humidity: 10% to 90% Non-condensing
Package Content GXV3370 phone, handset with cord, universal power supply, network cable, screen clea
ning cloth, quick installation guide, GPL license, wall mount bracket
Compliance
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter); Part68 (HAC)
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
EAC
