Quick Details
-
Model Number:
-
KG01
-
Max. Current:
-
16A
-
Product model:
-
KG01-16A
-
Installation method:
-
socket type
-
Standard operating power:
-
AC220V 50HZ
-
Supply timing error:
-
±2 seconds/day
-
External dimension:
-
123*68*60mm
-
Environmental temperature:
-
-10-60℃
-
Switch capacity:
-
Resistance 16A
-
Relative humidity:
-
<95%
-
Consumption power:
-
<4VA
-
Time control range:
-
1 minutes ~168 hours
Quick Details
-
Max. Voltage:
-
230V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RGP
-
Model Number:
-
KG01
-
Max. Current:
-
16A
-
Product model:
-
KG01-16A
-
Installation method:
-
socket type
-
Standard operating power:
-
AC220V 50HZ
-
Supply timing error:
-
±2 seconds/day
-
External dimension:
-
123*68*60mm
-
Environmental temperature:
-
-10-60℃
-
Switch capacity:
-
Resistance 16A
-
Relative humidity:
-
<95%
-
Consumption power:
-
<4VA
-
Time control range:
-
1 minutes ~168 hours

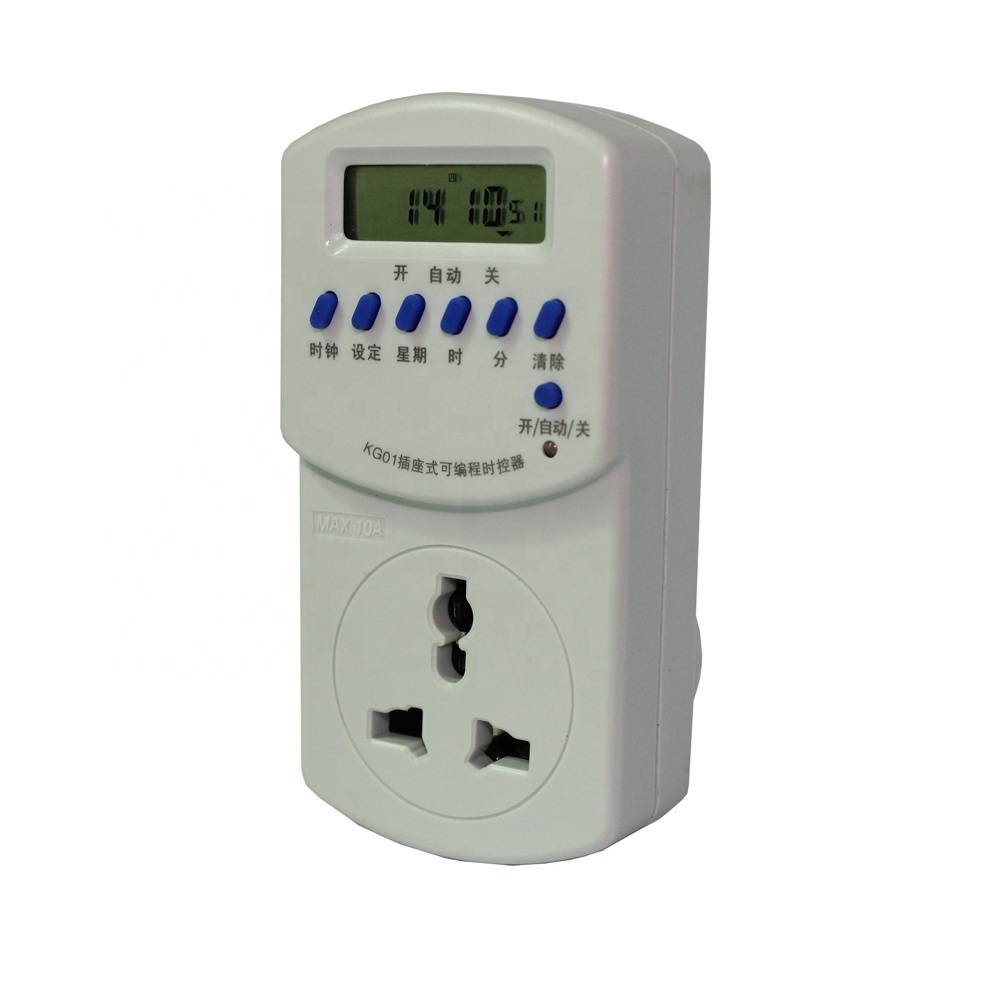

Programmable Digital Air Conditioner Timer Switch
1, Main technical parameter
|
Products model |
KG01-16A |
|
Working voltage |
AC220V 50HZ |
|
D eviation range |
<±2 sec / day |
|
Range of voltage |
85%~110% |
|
Ambient temperature |
-10~60℃ |
|
Switching current |
16A |
|
Relative humidity |
<95% |
|
C onsumer power |
<4VA |
|
Size |
123*68*60 |
|
Control time range |
1 min ~168 hour |
|
Installation |
Plug base |
Timer setting
1.Make sure the time on (timer controller) display is same as local time, for re-calibration, push down the "clock" key while press down the school "week", "Hour", "Minute" key, to make time change to accurate time;
2. Press the "Settings" button, till the left display appear "1 on" word (for the first time on time). "When" and then press the "week" Select five-day work, the same day, different daily work mode, press the "points" button, enter the desired time of opening;
3. Press the "Settings" button, the display appears the bottom left of the word "OFF 1" (indicating the first off-time), and then "week", "Hour", "Minute" key, enter the desired closure date (Note: be sure to turn off the date corresponds to the date and open) and time;
4. Continue to press the "Settings" button, on left of the display will show "2 open, 2 off, 3 on, 3 off, ......, 16 open, 16 off", take reference of step 2 and 3 to set the next time switching in need.
5. If do not need to set total 16 group switches, must press the "Clear" button, so the left timer switching will be deleted. Make it appears on the display "-: -" pattern (not 00:00);
6. After the timer is set up, press the "Settings" button to check the timing of each sub-set is consistent with the actual situation. If not, please press school, school division, school week to adjust or reset;
7. Press the "On / Auto / Off" button will display the word symbol transferred to the bottom of the "automatic" position, this time, when the control switch to open automatically according to the set time, turn off the circuit. As required in the course of the temporary opening and closing the circuit, simply press the "On / Auto / Off" key symbol transferred to the corresponding word "on" or "off" position .
