Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINSP
-
Model Number:
-
ST50S
-
Focal Length:
-
N/M
-
Wavelength Range:
-
N/M, 1080nm~1330nm
-
Material:
-
N/M
-
model number:
-
ST50S
-
focal length:
-
50mm
-
Detector:
-
Line array CMOS
-
Effective pixels:
-
512*1
-
Cell size:
-
25μm*500μm
-
Optical resolution:
-
0.2-2nm
-
The width of the incident slit:
-
6 cm-1 (25 μm)8 cm-1(50 μm)
-
Optional Cameras:
-
PI, Andor and other scientific research cameras (optional)
-
Operating temperature:
-
60°C~80°C
-
Power:
-
N/M
-
Voltage:
-
N/M
Quick Details
-
Warranty:
-
1 years
-
Size:
-
185 * 150 * 79 mm(without detector)
-
Weight:
-
2.2 kg (without detector)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINSP
-
Model Number:
-
ST50S
-
Focal Length:
-
N/M
-
Wavelength Range:
-
N/M, 1080nm~1330nm
-
Material:
-
N/M
-
model number:
-
ST50S
-
focal length:
-
50mm
-
Detector:
-
Line array CMOS
-
Effective pixels:
-
512*1
-
Cell size:
-
25μm*500μm
-
Optical resolution:
-
0.2-2nm
-
The width of the incident slit:
-
6 cm-1 (25 μm)8 cm-1(50 μm)
-
Optional Cameras:
-
PI, Andor and other scientific research cameras (optional)
-
Operating temperature:
-
60°C~80°C
-
Power:
-
N/M
-
Voltage:
-
N/M
Product Description

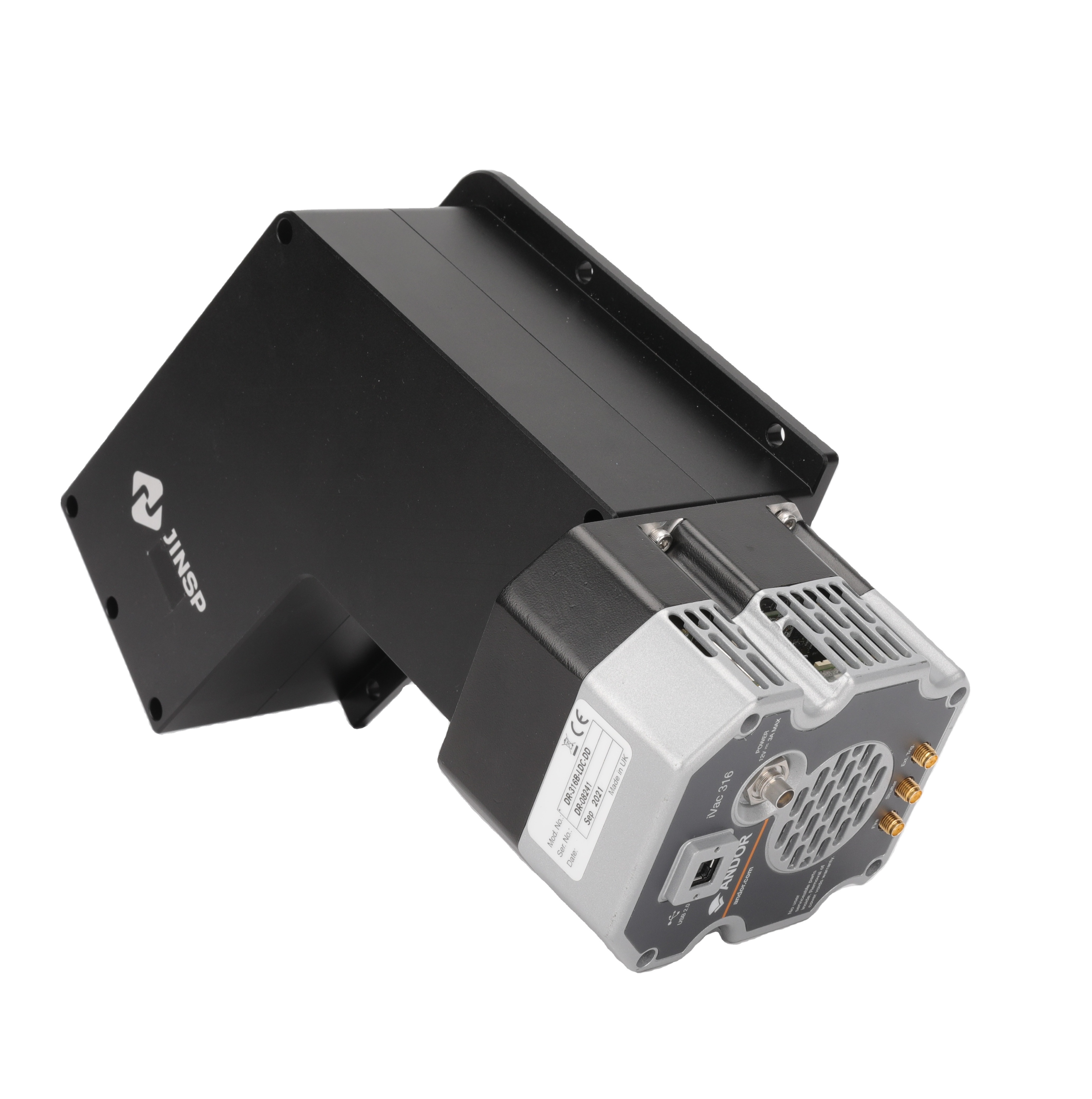

ST50S Transmission imaging spectrometer
1.JINSP ST50/90/100S series transmission imaging spectrometers are the ultimate high-performance spectrometers for weak signal detection.
2.ST50/90/100S series spectrometer adopts VPH volume holographic phase grating, the diffraction efficiency of the grating is as high as 80%~90%, which is slightly higher than reflection grating.
3.The optical path is designed with a high numerical aperture and zero optical aberration, which can achieve the best collection efficiency and theoretical limit resolution.
4.At the same time, it is compatible with mainstream scientific research-grade deep cooling cameras such as PI and Andor, thus ensuring excellent quantum efficiency and dark current noise. SR50/90/100S series spectrometers can receive SMA905 fibre input light and free space light.
5.At the same time, it supportsmulti-core fibre and multi-channel, and is compact and portable. It is very suitable for spectral detection in scientific research directions such as materials and biology and industrial detection of low-concentration samples or weak signals.
|
Item
|
Description
|
|
|
||
|
Effective pixels
|
512 * 1
|
|
|
||
|
Pixel size
|
25 μm * 500 μm
|
|
|
||
|
Optional Cameras
|
PI, Andor and other scientific research cameras (optional)
|
|
|
||
|
Wavelength range
|
1080 nm~1330 nm
|
|
|
||
|
Optical resolution
|
6 cm-1 (25 μm)8 cm-1(50 μm)
|
|
|
||
|
Focal length
|
50 mm
|
|
|
||
|
The width of the slit
|
5, 10, 25, 50 μm or as customized according to your needs
|
|
|
||
