Quick Details
-
Size:
-
10000-13000*2550*3400 mm
-
Place of Origin:
-
Shandong, China
-
Suspension:
-
Leaf spring or Air suspension
-
Tire:
-
12R22.5, 12 pcs.
-
King pin:
-
JOST 2" Kingpin, bolted in type
-
Landing Gear:
-
Standard 28T two speed telescopic manual landing gear
-
Product name:
-

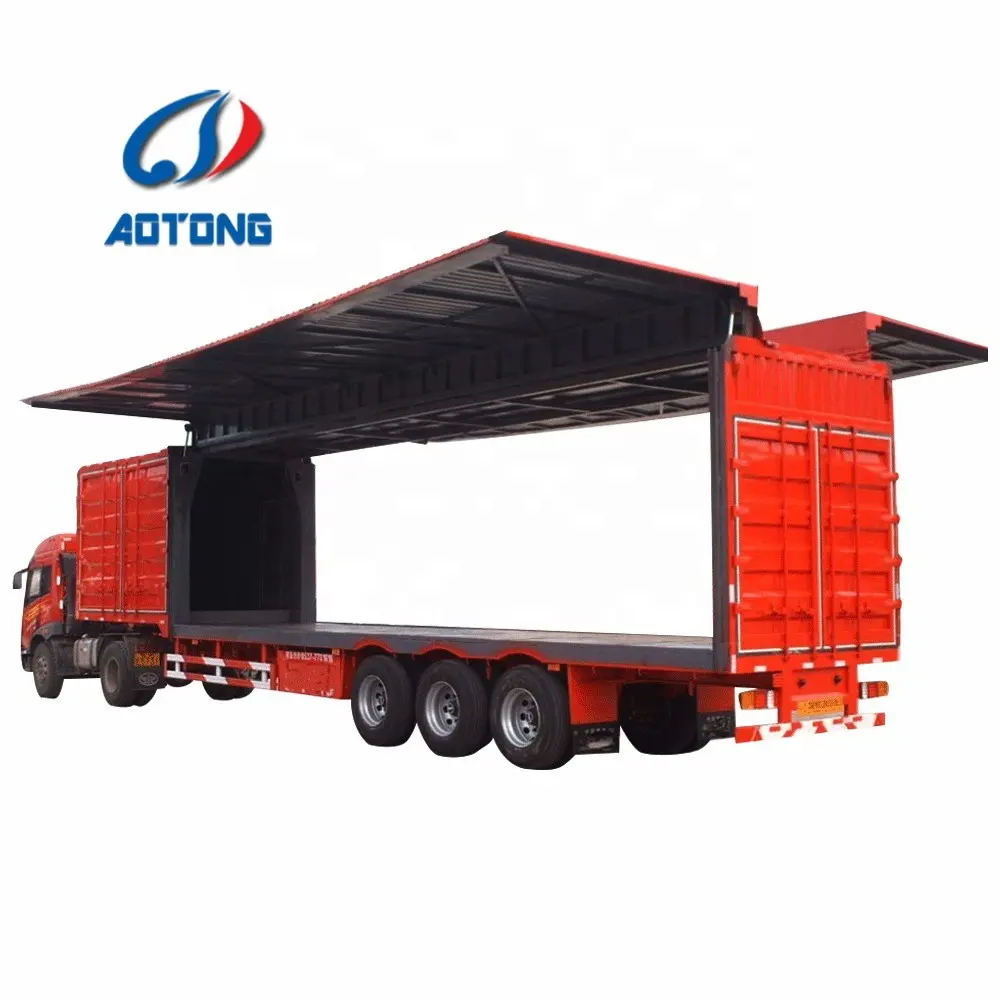

Van Semi Trailer/Trailer van/Box Semi Trailer
-
Function:
-
Transport Sand
-
Color:
-
Customers Optional
-
Axle:
-
FUWA/BPW 13 tons axles
-
Certification:
-
ISO, 3C
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
50000kg
-
Brand Name:
-
AOTONG
-
Size:
-
10000-13000*2550*3400 mm
-
Place of Origin:
-
Shandong, China
-
Suspension:
-
Leaf spring or Air suspension
-
Tire:
-
12R22.5, 12 pcs.
-
King pin:
-
JOST 2" Kingpin, bolted in type
-
Landing Gear:
-
Standard 28T two speed telescopic manual landing gear
-
Product name:
-
Van Semi Trailer/Trailer van/Box Semi Trailer
-
Function:
-
Transport Sand
-
Color:
-
Customers Optional
-
Axle:
-
FUWA/BPW 13 tons axles
-
Certification:
-
ISO, 3C
Products Description
|
Type:
|
Van Semi Trailer/Trailer van/Box Semi Trailer
|
|
|
Dimension:
|
10000-13000*2550*3400 mm
|
|
|
Payload:
|
60,000 kgs
|
|
|
Tare weight:
|
Approx. 9,500 kgs
|
|
|
Main beam:
|
Material Q345. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm
|
|
|
Side beam:
|
16# channel steel
|
|
|
Platform:
|
3mm thick checkered plate.
|
|
|
Side walls:
|
600-1800 mm height.
|
|
|
Kingpin:
|
JOST 2” Kingpin, bolted in type
|
|
|
Welding standard:
|
All welding are to be done by qualified welder per applicable national standard
|
|
|
Painting:
|
Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive primer,
twice coats of final paint |
|
|
Suspension:
|
Leaf spring or Air suspension
|
|
|
Axle:
|
FUWA/BPW 13 tons axles
|
|
|
Brake system:
|
Dual line pneumatic brake, with hose and connector
|
|
|
Brake chamber:
|
6 units T30/30 spring brake chambers
|
|
|
Air tank:
|
40L, 2 pcs, China
|
|
|
Emergency
relay valve: |
WABCO/Shunanda relay valve
|
|
|
Tire:
|
12R22.5, 12 pcs.
|
|
|
Landing gear:
|
Standard 28T two speed telescopic manual landing gear
|
|
|
Electrical
|
Voltage:24V Receptacle: 7 ways (7 wire harness)
A full set of LED lights installed on the trailer, front rear side turning etc. |
|
|
Spare wheel carrier
|
Two sets of spare wheel carrier
|
|
|
Accessory
|
One tooling box with a set of standard trailer tool
|
|
