Quick Details
-
Model Number:
-
SJG-800
-
Product name:
-
Edge Grinding Machine
-
Touch screen:
-
7inch capacitive screen
-
Screen tilt angle:
-
20°-100°
-
Clamping pressure:
-
Third gear adjustable
-
AUTO LENS EDGER Dimension:
-
625mm*510mm*510mm
-
AUTO LENS EDGER Weight:
-
49kg
-
AUTO LENS EDGER Voltage:
-
AC 220v/110v 50/60Hz
-
AUTO LENS SACNNER Dimension:
-
240mm*180mm*130mm
-
AUTO LENS SACNNER Weight:
-
5kg
-
AUTO LENS SACNNER Voltage:
-
AC 220v/110v 50/60Hz
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EOMED
-
Model Number:
-
SJG-800
-
Product name:
-
Edge Grinding Machine
-
Touch screen:
-
7inch capacitive screen
-
Screen tilt angle:
-
20°-100°
-
Clamping pressure:
-
Third gear adjustable
-
AUTO LENS EDGER Dimension:
-
625mm*510mm*510mm
-
AUTO LENS EDGER Weight:
-
49kg
-
AUTO LENS EDGER Voltage:
-
AC 220v/110v 50/60Hz
-
AUTO LENS SACNNER Dimension:
-
240mm*180mm*130mm
-
AUTO LENS SACNNER Weight:
-
5kg
-
AUTO LENS SACNNER Voltage:
-
AC 220v/110v 50/60Hz
Product Description

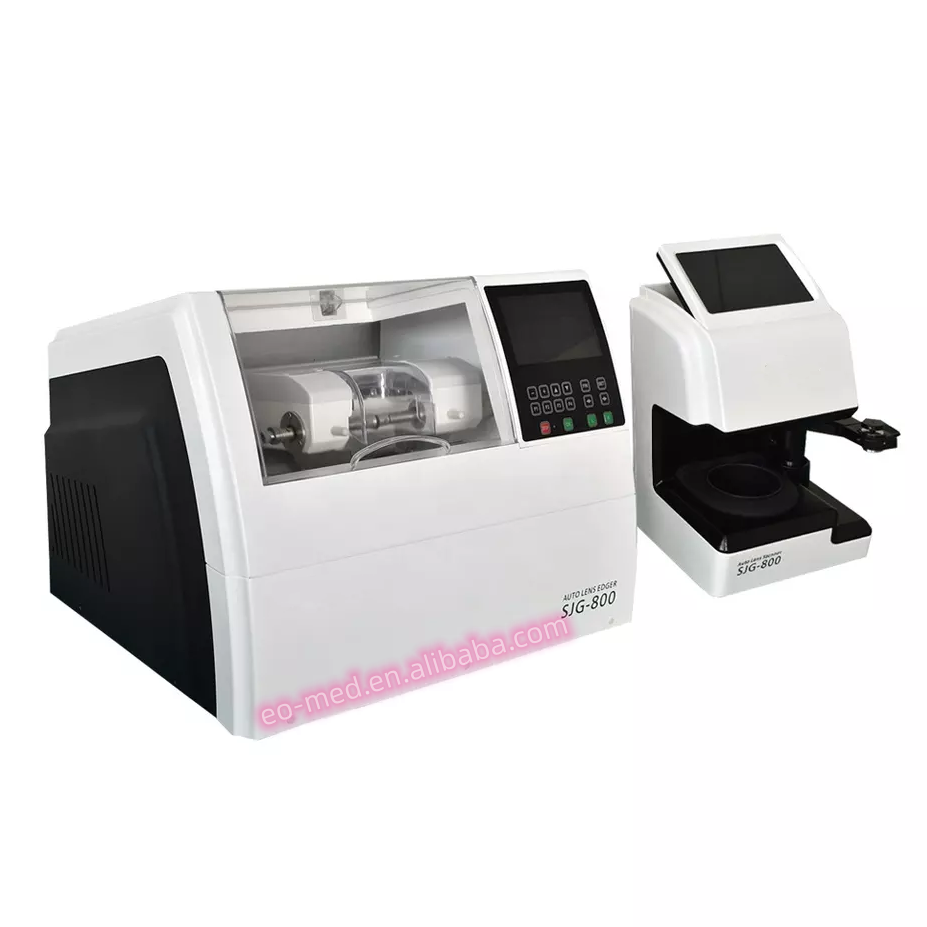

SJG-800
Automatic computer edge (PC Lens Compatible)
Tracing system:
●
Set the optical scan, the center of positioning as one
●
lt takes 0.5 seconds to get the frame shape of the frame
●
Real-time imaging guidance confirms whether the best center position is reached
●
Automatically eliminate the lens degree, prism and artificial parallax effect
●
High resolution 1280*800 true color 7 inch touch screen
●
At the same time connect two SJG-800 automatic milling machinecomposed of processing center
Simple operation, low failure, maintenance-free
Edging system:
●Avarious of materials of the lens can be processed,
rapid edging to be molding,
●Bevel or platband can be polished.
●Variours grinding pressure meet the demands of different lenses
●On-line function
Specification
|
AUTO LENS EDGER
|
|
|
|
Dimension
|
625mmx510mmx510mm
|
|
|
Weight
|
49kg
|
|
|
Voltage
|
AC 220v/110v 50/60Hz
|
|
|
Power
|
550w
|
|
|
Size range
|
22-80mm
|
|
|
Clamping pressure
|
Third gear adjustable
|
|
|
Wheel diameter
|
100mm
|
|
|
AUTO LENS SACNNER
|
|
|
|
Dimension
|
240mmx 180mmx130mm
|
|
|
Weight
|
5kg
|
|
|
Voltage
|
AC 220v/110v 50/60Hz
|
|
|
Power
|
60w
|
|
|
Screen tilt angle
|
20°-100°
|
|
|
Touch screen
|
7 inchcapacitive screen
|
|
|
Quantity of connecting with the main machine
|
2 unit
|
|
Details Images
Packing & Delivery
S
afe foam carton package to protect the
Edge Grinding Machine
well.
Delivery: By DHL, UPS, TNT, FeDex, Air.
