Quick Details
-
Model Number:
-
0.18-90KW
-
Frequency:
-
50/60 HZ
-
Speed:
-
2900RPM 1400RPM 960RPM 660RPM
-
Poles:
-
2P/4P/6P/8P/As Required
-
Material:
-
100% COPPER
-
Housing:
-
Cast Aluminium
-
Usage:
-
Machinery Equipment
-
Certification:
-
CCC
Quick Details
-
AC Voltage:
-
208-230 / 240 V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ever-Power
-
Model Number:
-
0.18-90KW
-
Frequency:
-
50/60 HZ
-
Speed:
-
2900RPM 1400RPM 960RPM 660RPM
-
Poles:
-
2P/4P/6P/8P/As Required
-
Material:
-
100% COPPER
-
Housing:
-
Cast Aluminium
-
Usage:
-
Machinery Equipment
-
Certification:
-
CCC

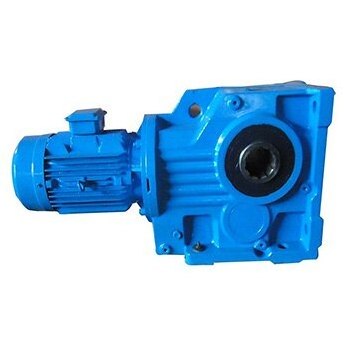

210V ar transmission ac motor speed controller 4000w ac motor with gearbox 220v 3 phase .5hp electric motor reduction gearbox
1.High modularization design: May equip with various motor or other power input conveniently.
2.Transmission ratio: Fine division, wide scope.
3.Form of installation: The position to be installed is not limited.
4.High strength, compact: The box body is made of high strength cast iron
5.Long life: Under the condition of correct type chosen (including choosing suitable operation parameters) normal operation and maintenance, the life of main parts of speed reducer should not be less than 20000 hours.
6.Low noise
7.High efficiency: The efficiency of single machine is not less than 95%.
Motor Specification:
|
|
Three Phase Gear Motor |
Single Phase Gear Motor |
|
|
Three Phase Gear Motor |
Gear |
All built-in gears are high precision processed by high grade special alloy steel and through carburizing and quenching. |
|
|
Material of gear case |
Alloy steel moulded shapement (shaft dia. 18,22,28), cast iron moulded shapement (32,40,50) |
||
|
Lubrication |
The machine is injected with high class lubrication inside when dispatched, so no need to add. |
||
|
Motor |
Power |
220/380V |
110/220V |
|
Frequency |
50/60Hz |
50/60Hz |
|
|
Cooling type |
Fully-enclosed external fans |
||
|
Starting type |
Directly starting under total pressure |
Continuous rotation starting, Capacitor starting |
|
|
Housing material |
Superb alum alloy stainless steel |
||
|
Insulation degree |
F, B degree |
||
|
Protective degree |
IP54 for Aluminum junction box, IP20 for Steel junction box |
||
|
Brake |
Working mode |
No excitation magneto type brake (Power interrupt brake) |
|
|
Voltage |
DC90-110V attached AC220V,AC110V rectifier |
||
|
Common Environment |
Temperature |
-10 ~ +40 centigrade |
|
|
Humidity |
Below 90% (noncondensable) |
||
|
Site |
Indoor, the altitude below 1000m |
||
Packing Details: Standard carton/Pallet/Standard wooden case
Delivery Details : 7-20 working days upon payment
