Quick Details
-
Power:
-
Standard
-
Min. Lifting Height:
-
Standard
-
Table Size:
-
1170*600mm
-
Overall Dimensions:
-
Standard
-
Weight:
-
1000 kg
-
Lift Power:
-
Battery
-
Charger:
-
12V/15A
-
Control Mode:
-
On platfor and chasis
-
Emergency Decline System:
-
Yes
-
Moving Mode:
-
Manually
-
Support Legs:
-
4
-
Lifting Time:
-
33s
-
Safe Valves:
-
Overflow Valve,Check Valve, Adjustment Valve,
-
Surface Treatment:
-
Plastic Spraying
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAGA FIRST
-
Power:
-
Standard
-
Min. Lifting Height:
-
Standard
-
Table Size:
-
1170*600mm
-
Overall Dimensions:
-
Standard
-
Weight:
-
1000 kg
-
Lift Power:
-
Battery
-
Charger:
-
12V/15A
-
Control Mode:
-
On platfor and chasis
-
Emergency Decline System:
-
Yes
-
Moving Mode:
-
Manually
-
Support Legs:
-
4
-
Lifting Time:
-
33s
-
Safe Valves:
-
Overflow Valve,Check Valve, Adjustment Valve,
-
Surface Treatment:
-
Plastic Spraying

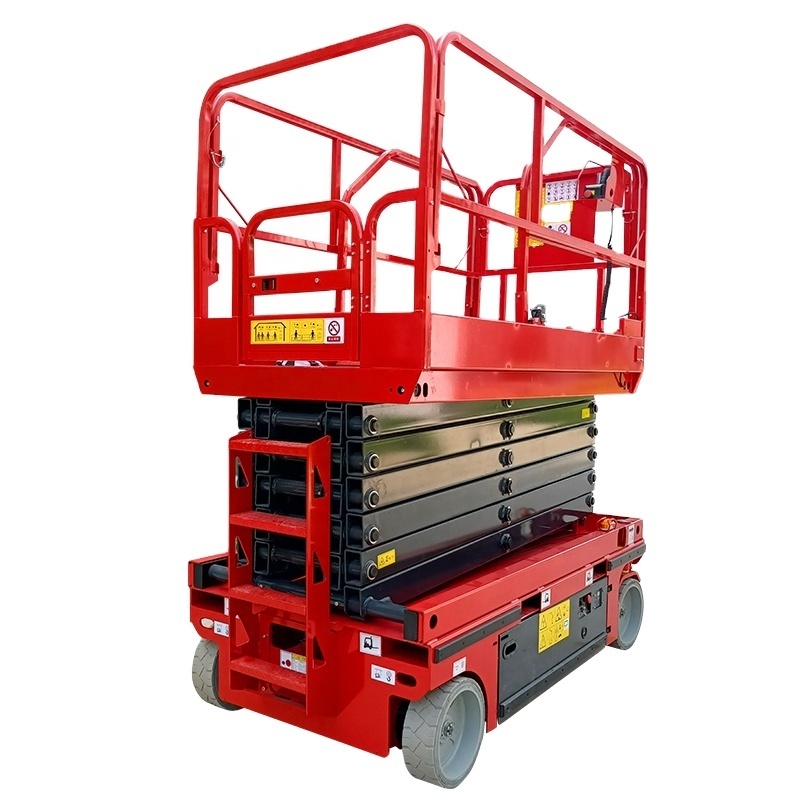

6-12m Hydraulic Driven Self Propelled Scissor Lift Platform
- OEM & ODM Service -
Hydraulic Self Propelled Scissor Lift is driven by hydraulic principle. Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical motor drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.
| Model No. | SP06 | SP08 | SP10 | SP12 | |
| Lifting capacity | kg | 300 | 300 | 300 | 300 |
| Folding maximum height(guardrail unfolding) | mm | 2150 | 2275 | 2400 | 2525 |
| Folding maximum height(guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
| Overall Length | mm | 2400 | 2400 | 2400 | 2400 |
| Overall Width | mm | 1150 | 1150 | 1150 | 1150 |
| Platform Size | mm | 2270×1150 | 2270×1150 | 2270×1150 | 2270×1150 |
| Platform extend size | mm | 900 | 900 | 900 | 900 |
| Minimumground clearance(folding) | mm | 110 | 110 | 110 | 110 |
| Minimumground clearance(rising) | mm | 20 | 20 | 20 | 20 |
| Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
| Minimum turn radius(inner wheel) | mm | 0 | 0 | 0 | 0 |
| Minimum turn radius(outer wheel) | mm | 2100 | 2100 | 2100 | 2100 |
| Power source | v/kw | 24/3.0 | 24/3.0 | 24/3.0 | 24/3.0 |
| Running speed(folding) | km/h | 4 | 4 | 4 | 4 |
| Running speed(rising) | km/h | 0.8 | 0.8 | 0.8 | 0.8 |
| Rising/falling speed | sec | 40/50 | 40/50 | 70/80 | 70/80 |
| Battery | V/Ah | 4×6/210 | 4×6/210 | 4×6/210 | 4×6/210 |
| Charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 |
| Maximum climbing ability | % | 20 | 20 | 20 | 20 |
| Maximum working allowable angle | / | 2-3° | 2-3° | 2-3° | 2-3° |
| Way of control | / | Electro-hydraulic proportion control | |||
| Driver | / | Double front-wheel | |||
| Hydraulic drive | / | Double rear-wheel | |||
| Wheel size(stuffed&no mark) | / | Φ381×127 | Φ381×127 | Φ381×127 | Φ381×127 |
| Whole weight | kg | 1900 | 2080 | 2490 | 2760 |
Hydraulic Self Propelled Scissor Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Proportional control Automatic pothole protection Self-lock gate on platform
Drivable at full height Non marking tyre Automatic brakes system
Emergency Stop Button Emergency Lowering System Cylinder Check Valve
Onboard diagnostic system Tilt sensor with Alarm All Motion Alarm
Horn Hour Meter Safety Maintaince Rod
Forklift Holes Folding Guardrails Extended Platform
Charger Protection Flicker
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve
4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor
7. Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod
Hydraulic Self Propelled Scissor Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
Hydraulic Self Propelled Scissor Lift are approved by European certificates and meet the international standards.
|
Questions |
Answers |
|
Are you a factory or trading company? |
We're factory with over 12years exporting experience. |
|
What's the MOQ? |
1UNIT,the more,the better. |
|
What's the payment terms? |
<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight. |
|
Do you offer OEM&ODM service? |
Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
|
What's the delivery time? |
15~20days after down payment |
|
What's the quality warranty? |
24 months.Offer free parts for replacement. |
|
How can I get the after-sales service? |
We offer videos,pictures and technical guidance immediately. |
|
What's your QA&QC policy? |
3times 100% inspection before shipping. |
|
Can you tell me your clients in my country? |
Of course. But only after the permittance of customers. |
