Quick Details
-

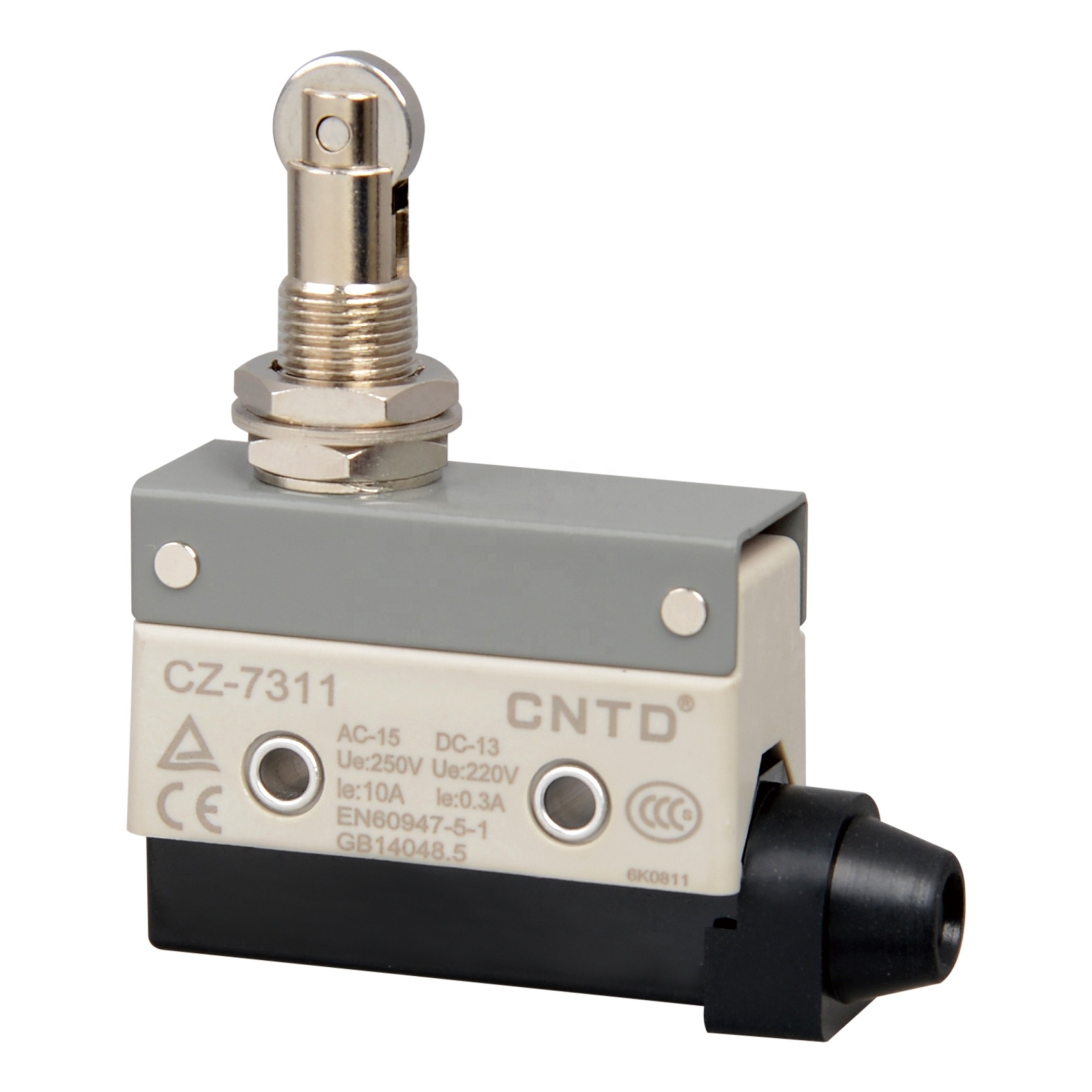

Model Number:
-
CZ-7311
-
Protection Level:
-
No
-
Operating Temperature:
-
-20~+70℃(With no icing)
-
Max. Current:
-
10A
-
Feature:
-
Water-proof and oil-proof construction
-
Operating Speed:
-
0.05mm-0.5m/s
-
Operating Frequency:
-
Electical: 20 operations/min
-
Contact Resistance:
-
25mΩ max.(initial value)
-
Insulation Resistance:
-
100mΩ above(at 500VDC)
-
Ambient temperature:
-
Using: -20~+70℃ (With no icing)
-
Humidity:
-
<95% RH
-
Electrical Life:
-
500,000 operations above
-
Weight:
-
About 60g
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CZ-7311
-
Protection Level:
-
No
-
Operating Temperature:
-
-20~+70℃(With no icing)
-
Max. Current:
-
10A
-
Feature:
-
Water-proof and oil-proof construction
-
Operating Speed:
-
0.05mm-0.5m/s
-
Operating Frequency:
-
Electical: 20 operations/min
-
Contact Resistance:
-
25mΩ max.(initial value)
-
Insulation Resistance:
-
100mΩ above(at 500VDC)
-
Ambient temperature:
-
Using: -20~+70℃ (With no icing)
-
Humidity:
-
<95% RH
-
Electrical Life:
-
500,000 operations above
-
Weight:
-
About 60g
-
Certification:
-
TUV, ISO9001, CCC, CE
Features
Various actuators and some with adjustable operating position (such as CZ-7121)
Shell covered with intensive plastic for water-proof and oil-proof. The mechanical strength is better than CM series of horizontal limit switch
Contact Form
Specifications
|
Operation speed
|
0.05mm-0.5m/s
|
|
|
|
|||
|
Operating frequency
|
Electical: 20 operations/min
|
|
|
|
|||
|
Contact rsistance
|
25mΩ max. (initial value)
|
|
|
|
|||
|
Insulation resistance
|
100mΩ above(at 500VDC)
|
|
|
|
|||
|
|
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
|
|
|
|
|||
|
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
|
|
|
|
|||
|
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
|
|
|
|
|||
|
Vibration
|
Malfunction Duration: 10~55Hz, 1.5mm double amplitude
|
|
|
|
|||
|
Shock
|
Mechanical durable: 1,000m/Sec² (about 100G'S)
Malfunction: 300m/Sec² (about 30G'S)
|
|
|
|
|||
|
Ambient temperature
|
Using: -20~+70℃ (With no icing)
|
|
|
|
|||
|
Humidity
|
<95% RH
|
|
|
|
|||
|
Electrical life
|
500,000 operations above
|
|
|
|
|||
|
Weight
|
About 60g
|
|
|
|
|||
Ratings
|
Rated Voltage
|
Noninductive Load (A)
|
|
|
|
Inductive Load (A)
|
|
|
|
||||||
|
|
Resistance Load
|
|
Lamp Load
|
|
Inductive Load
|
|
Motor Load
|
|
||||||
|
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
||||||
|
125VAC
|
10
|
5
|
3
|
1.5
|
10
|
3
|
5
|
2.5
|
||||||
|
250VAC
|
10
|
5
|
2.5
|
1.25
|
10
|
3
|
3
|
1.5
|
||||||
|
480VAC
|
3
|
|
1.5
|
0.75
|
2.5
|
|
1.5
|
0.75
|
||||||
|
8VDC
|
10
|
5
|
3
|
1.5
|
6
|
4
|
6
|
5
|
||||||
|
14VDC
|
10
|
5
|
3
|
1.5
|
6
|
4
|
6
|
5
|
||||||
|
30VDC
|
8
|
5
|
3
|
1.5
|
6
|
4
|
5
|
2.5
|
||||||
|
125VDC
|
0.5
|
0.4
|
0.4
|
0.4
|
0.05
|
|
0.05
|
0.05
|
||||||
|
250VDC
|
0.25
|
0.2
|
0.2
|
0.2
|
0.03
|
|
0.03
|
0.03
|
||||||
NOTES:
1.Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).
2.Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3.Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.
3.Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.
