Quick Details
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1000*1200*1200
-
Product name:
-

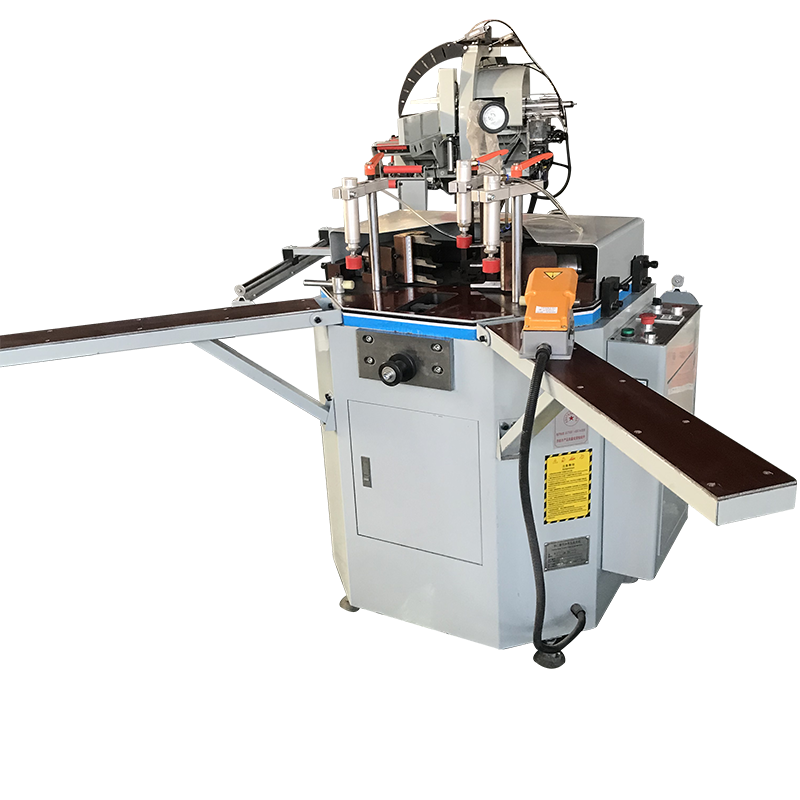

Corner Crimping Aluminium Profile Machine
-
Air pressure:
-
15Mpa
-
Motor rotational speed:
-
1400r/min
-
Capacity of oil box:
-
20L
-
Profile processing width:
-
90mm
-
Total combining pressure:
-
0.5-0.8Mpa
-
Air consumption:
-
2L/min
-
General pressure of corner combining:
-
50KN
-
Corner combining casing movement journey:
-
85mm
-
After Warranty Service:
-
Video technical support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support
-
Certification:
-
CE
Quick Details
-
Brand Name:
-
Carter
-
Voltage:
-
380V 50hz or customized, 380V 50Hz or Customized
-
Production Capacity:
-
99.9
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1000*1200*1200
-
Product name:
-
Corner Crimping Aluminium Profile Machine
-
Air pressure:
-
15Mpa
-
Motor rotational speed:
-
1400r/min
-
Capacity of oil box:
-
20L
-
Profile processing width:
-
90mm
-
Total combining pressure:
-
0.5-0.8Mpa
-
Air consumption:
-
2L/min
-
General pressure of corner combining:
-
50KN
-
Corner combining casing movement journey:
-
85mm
-
After Warranty Service:
-
Video technical support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Video technical support
-
Certification:
-
CE
PRODUCT PRINCIPLE
The corner combining machine is used for 90°fabricating of aluminum window. Adopt new mechanical linkage device, realize complete synchronous corner combining. Up and down adjustable locating device, suitable for various section and sized profile. Left and right punching heads adopt hardness synchronous feeding device, avoid deformation and make sure firm connection.
|
Voltage
|
380V 50Hz or Customized
|
|
Motor power
|
1.5KW
|
|
Air pressure
|
15Mpa
|
|
Motor rotational speed
|
1400r/min
|
|
Capacity of oil box
|
20L
|
|
Profile processing height
|
Profile processing height
|
|
Profile processing width
|
90mm
|
|
Total combining pressure
|
0.5-0.8Mpa
|
|
Air consumption
|
2L/min
|
|
General pressure of corner combining
|
50KN
|
|
Corner combining casing movement journey
|
85mm
|
|
The adjustable range of main lacation block
|
54mm
|
|
Overall dimension
|
1000*1200*1200
|
